Basler BE1-32 - Page 49

9171100990 Rev R BE1-32R, BE1-32O/U Installation 4-11
P0002-17
01-30-01
DETAIL A-A
SHOWING THE ADDITION OF WASHERS
OVER THE BOSS TO TIGHTEN THE
RELAY AGAINST THE PANEL.
CASE

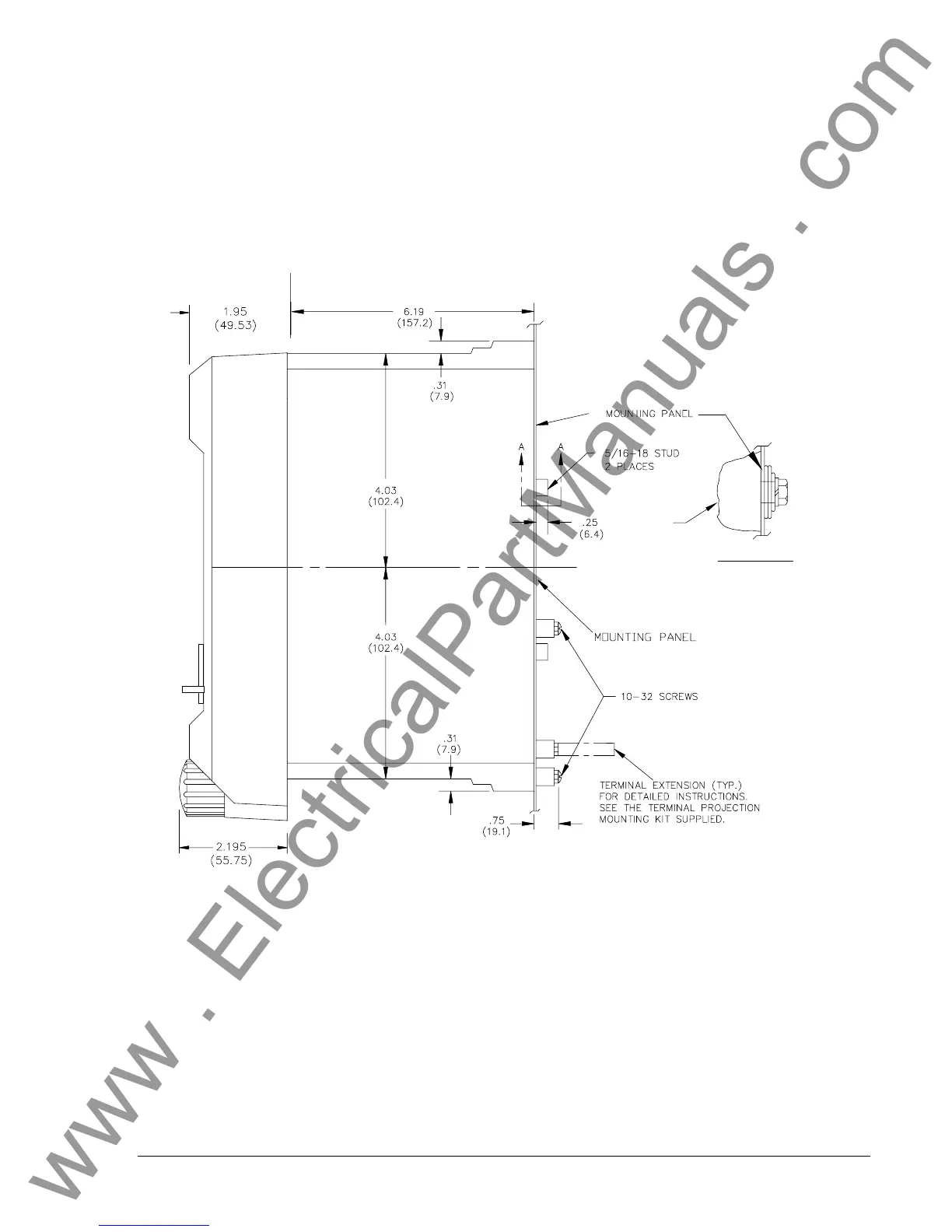

Figure 4-10. Case Dimensions, S1 Case, Projection Mounting, Single-Ended, Side View
