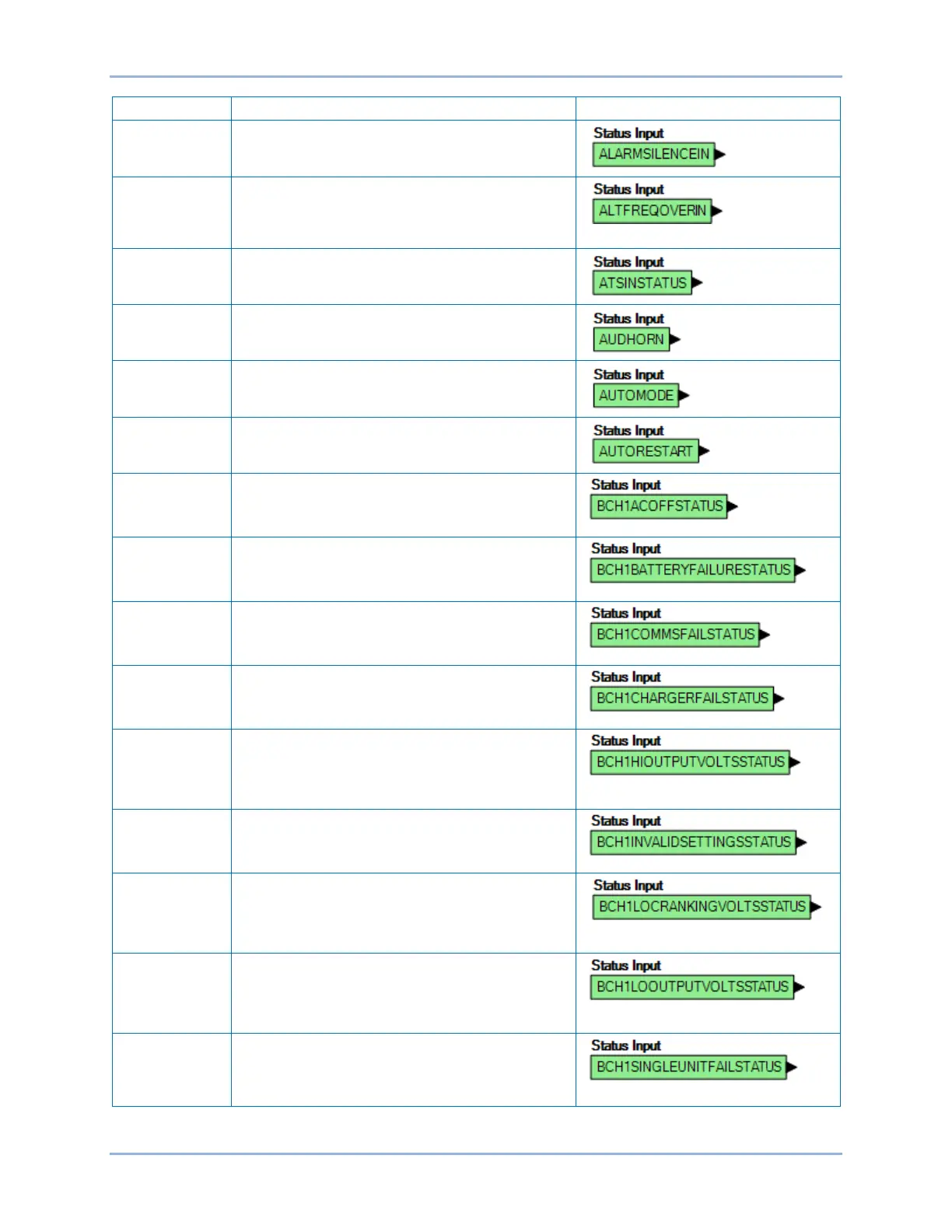

DGC-2020ES BESTlogic™Plus
Name
Description
Symbol
Status Input
Alarm Silence
True when the Alarm Silence logic element is true or
the Alarm Silence button is pressed on the front
panel.
Status Input
Alternate
Frequency
Override
True when the Alternate Frequency Override logic
element is true.
Status Input
ATS Input
True when the ATS (Auto Transfer Switch) input is
true or the ATS logic element is true.
Status Input
Audible Horn
True when the Audible Horn is active.
Status Input
Auto Mode
True when the DGC-2020ES is in Auto Mode or the
Auto Mode logic element is true.
Status Input
Auto Restart
True when the Automatic Restart function is active.
Status Input
Battery Charger
AC Off
True when the ac power to the battery charger is off.
(Battery Charger 1 shown.)
Status Input
Battery Charger
Battery Failure
True when the battery charger has detected that the
battery has failed. (Battery Charger 1 shown.)
Status Input
Battery Charger
Comms Fail
True when the battery charger has detected a J1939
communications failure. (Battery Charger 1 shown.)
Status Input
Battery Charger
Fail
True when the battery charger has failed. (Battery
Charger 1 shown.)
Status Input
Battery Charger
High Output
Volts
True when the battery charger output voltage is too
high. (Battery Charger 1 shown.)
Status Input
Battery Charger
Invalid Settings
True when the battery charger has detected settings
that are not valid. (Battery Charger 1 shown.)
Status Input
Battery Charger
Low Cranking
Volts
True when the battery charger has detected that the
voltage while the engine is cranking has dipped too
low. (Battery Charger 1 shown.)
Status Input
Battery Charger
Low Output
Volts
True when the battery charger output voltage is too
low. (Battery Charger 1 shown.)
Status Input
Battery Charger
Single Unit Fail
True when the battery charger has detected one or
more charging output stages in a charger with
multiple charging output stages has failed. (Battery
Charger 1 shown.)
