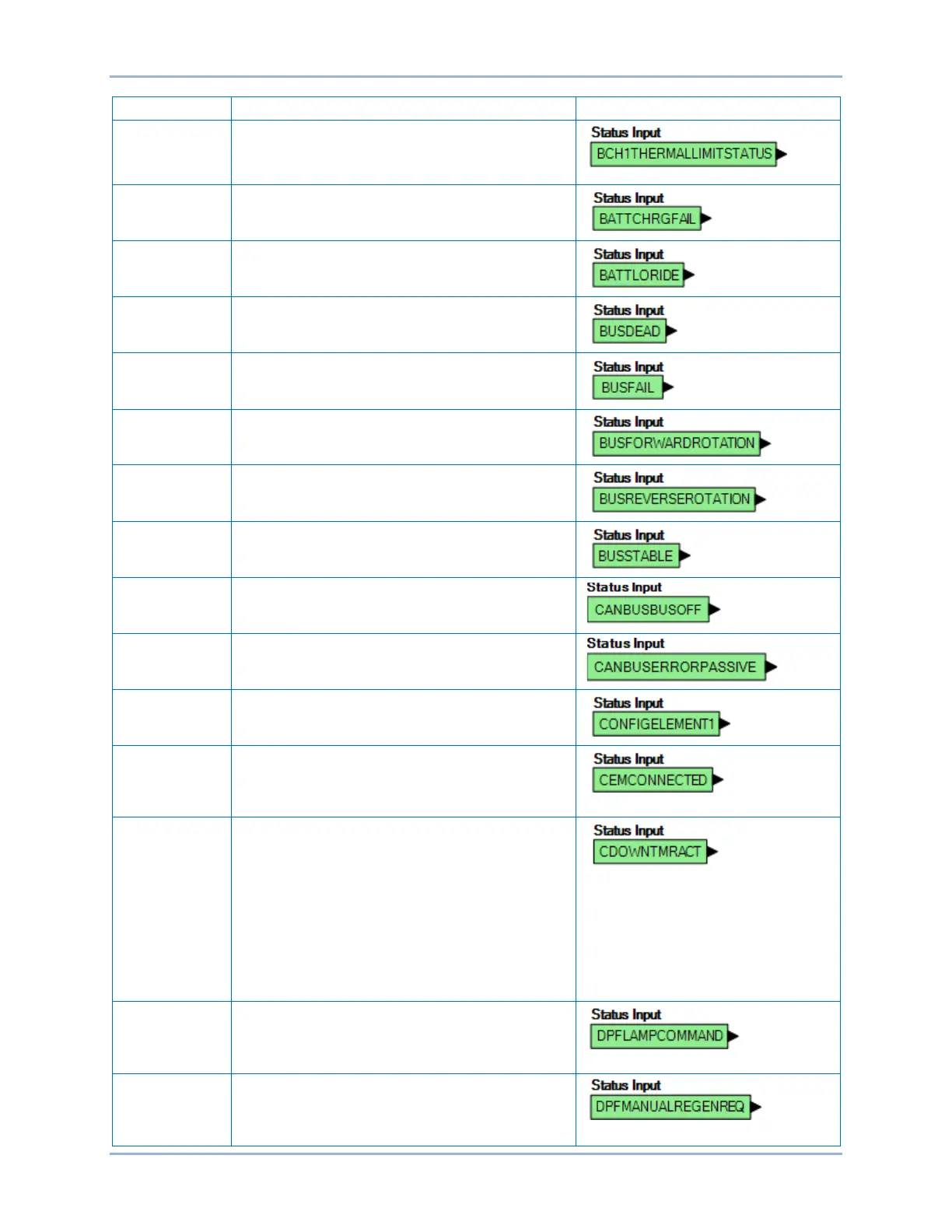

BESTlogic™Plus DGC-2020ES
Name
Description
Symbol
Status Input
Battery Charger
Thermal Limit
True when the battery charger temperature is
beyond the thermal limit. (Battery Charger 1 shown.)
Status Input
Battery Charger
Fail
True when the Battery Charger Fail input is true.
Status Input
Battle Override
True when the Battle Override input is true.
Status Input
Bus Dead
True when the Bus Dead condition settings have
been exceeded.
Status Input
Bus Fail
True when the Bus Fail condition settings have been
exceeded.
Status Input
Bus Forward
Rotation
True when the bus rotation matches the Phase
Rotation setting.
Status Input
Bus Reverse
Rotation
True when the bus rotation is opposite of the Phase
Rotation setting.
Status Input
Bus Stable
True when the Bus Stable condition settings have
been exceeded.
Status Input
CAN Bus - Bus
Off
True when the CAN Bus - bus is off.
Status Input
CAN Bus Error
Passive
True when a passive error is annunciated by the
CAN Bus.
Status Input
Configurable
Elements 1-8
True when the Configurable Element x logic element
is true.
Status Input
Contact
Expansion
Module
Contact Expansion Module Connected. True when
an optional CEM-2020 is connected to the DGC-
2020ES.
Status Input
Cool Down
Timer Active
True when the Cool Down Timer is timing out. The
Cool Down Timer is true under two circumstances:
1. The unit is in auto and ATS is removed, causing
the DGC-2020ES to go into a cooldown state.
2. The engine is running (in RUN or AUTO mode
with ATS applied) and the load has been
removed (i.e. the EPSSUPLOAD status input is
false due to small load). If the load is reapplied,
the Cool Down Timer stops and resets, and it
will restart when the load is removed the next
time.
Status Input
DPF Lamp
Command
True when DPF lamp is lit. This status input mimics
the state of the DPF lamp. It remains true when the
DPF lamp is constantly lit and toggles true and false
at a rate of 1 Hz when DPF lamp is blinking.
Status Input
DPF Manual
Regen Request
True when a Diesel Particulate Filter (DPF) manual
regen request has been initiated through the front
panel, BESTCOMSPlus, or the Manual Regen
Request logic element.
