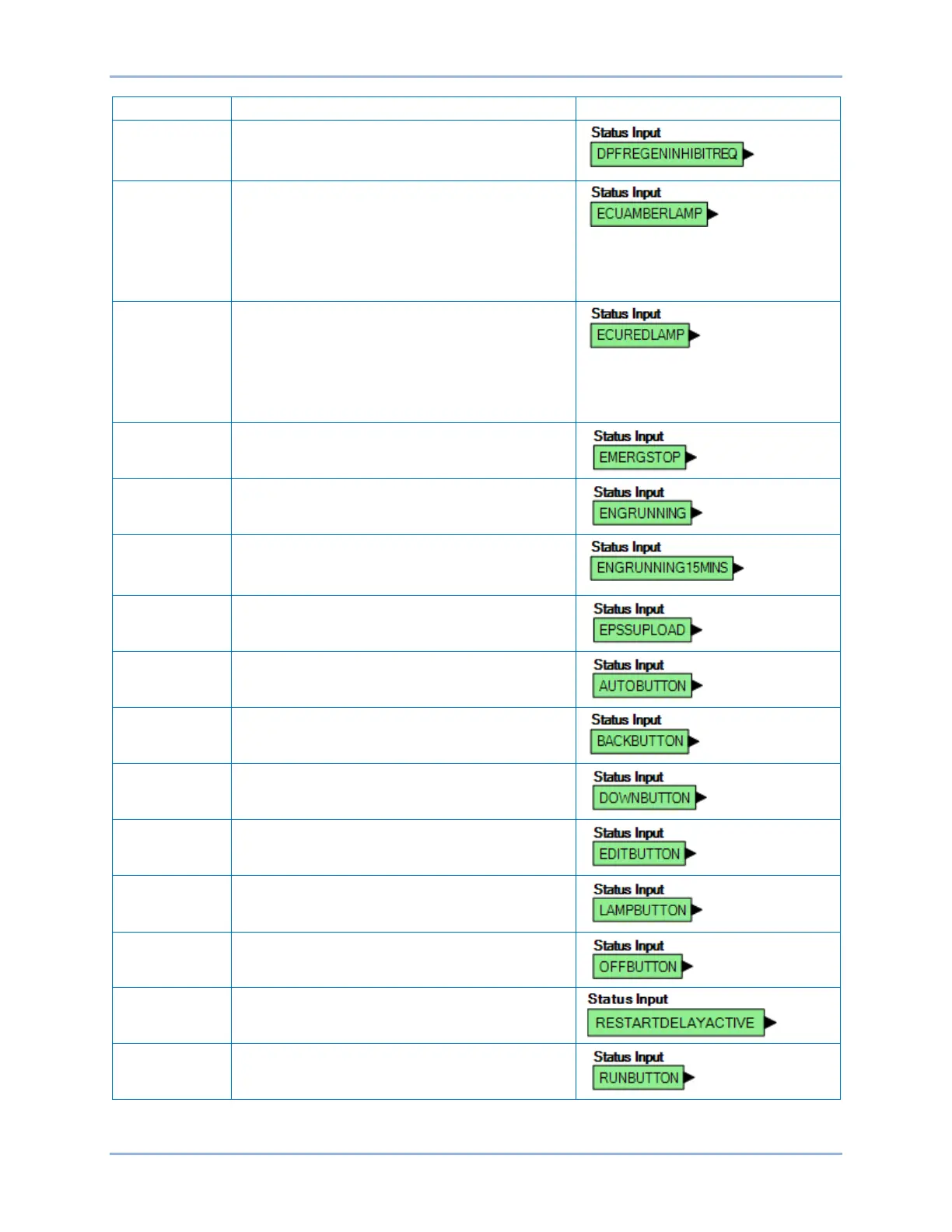

DGC-2020ES BESTlogic™Plus
Name
Description
Symbol
Status Input
DPF Regen
Inhibit Request
True when the Diesel Particulate Filter (DPF)
regeneration inhibit setting is turned on through the
front panel, BESTCOMSPlus, or logic.
Status Input
ECU Amber
Lamp
True when the engine ECU sends ECU Amber
Lamp (Warning Lamp) status as part of J1939
Diagnostic Trouble Code (DTC) communications. It
may be off, on, or flashing. If the installation requires
annunciation of engine warning and fault lamps, this
may be connected to an output in logic to drive an
amber lamp.
Status Input
ECU Red Lamp
True when the engine ECU sends ECU Red Lamp
(Fault Lamp) status as part of J1939 Diagnostic
Trouble Code (DTC) communications. It may be off,
on, or flashing. If the installation requires
annunciation of engine warning and fault lamps, this
may be connected to an output in logic to drive a red
lamp.
Status Input
Emergency
Stop
True when the Emergency Stop button has been
pressed.
Status Input
Engine Running
True while the Engine is Running.
Status Input
Engine Running
15 Minutes
True when the engine is presently running and has
been running 15 minutes or more since the most
recent start.
Status Input
EPS Supplying
Load
True while the EPS is supplying load.
Status Input
Front Panel
Buttons
True while the Auto front panel button is pressed.
Status Input
Front Panel
Buttons
True while the Back front panel button is pressed.
Status Input
Front Panel
Buttons
True while the Down front panel button is pressed.
Status Input
Front Panel
Buttons
True while the Edit front panel button is pressed.
Status Input
Front Panel
Buttons
True while the Up and Down front panel buttons are
simultaneously pressed.
Status Input
Front Panel
Buttons
True while the Off front panel button is pressed.
Status Input
Restart Delay
Active
True when the restart delay is currently active.
Status Input
Front Panel
Buttons
True while the Run front panel button is pressed.
