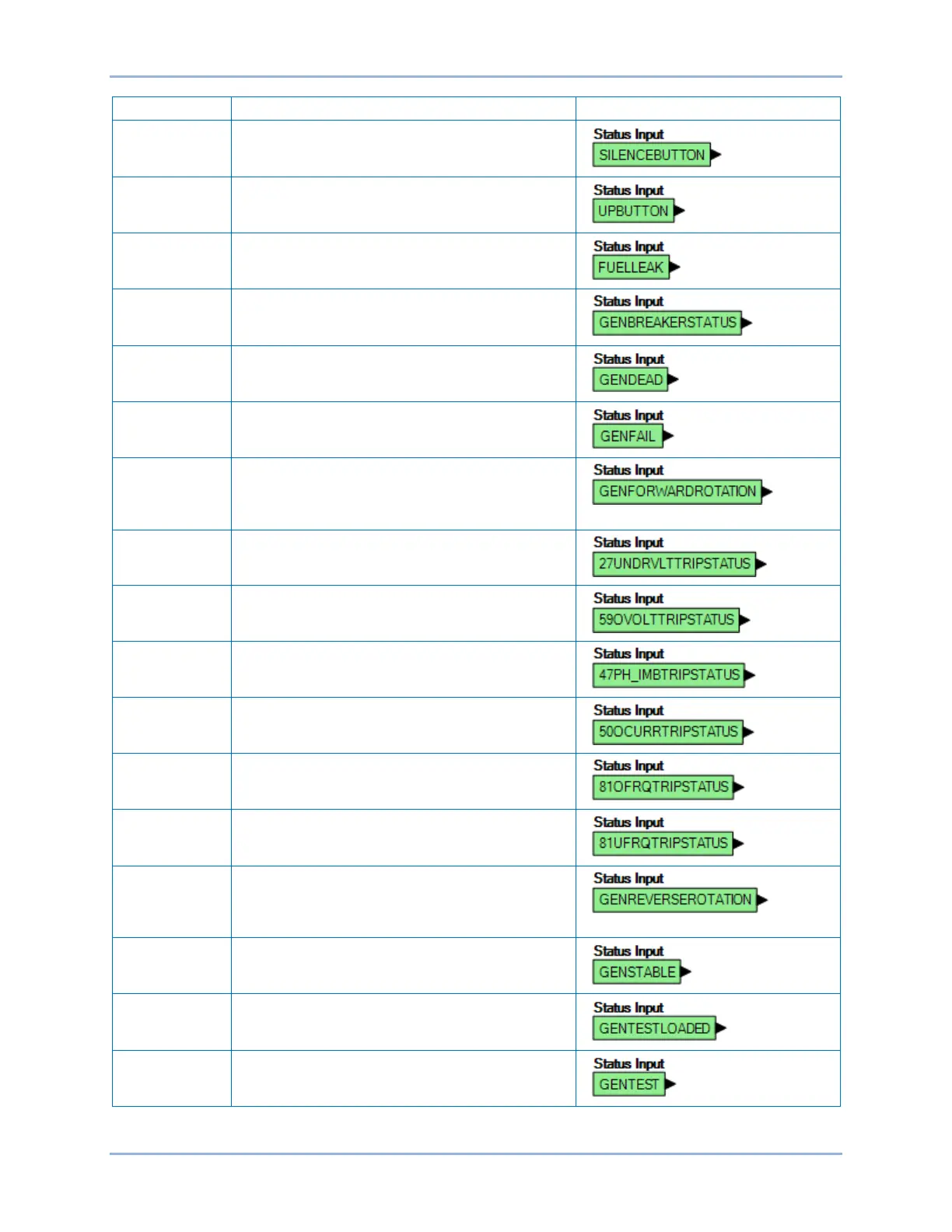

BESTlogic™Plus DGC-2020ES
Name
Description
Symbol
Status Input
Front Panel
Buttons
True while the Back and Edit front panel buttons are
simultaneously pressed.
Status Input
Front Panel
Buttons
True while the Up front panel button is pressed.
Status Input
Fuel Leak
True when the Fuel Leak Detect input is true.
Status Input
Generator
Breaker Status
True when the generator breaker is closed.
Status Input
Generator Dead
True when the Gen Dead condition settings have
been exceeded.
Status Input
Generator Fail
True when the Gen Fail condition settings have
been exceeded.
Status Input
Generator
Forward
Rotation
True when the generator rotation matches the
Phase Rotation setting.
Status Input
Generator
Protection
True when the 27 element is tripped.
Status Input
Generator
Protection
True when the 59 element is tripped.
Status Input
Generator
Protection
True when the 47 element is tripped.
Status Input
Generator
Protection
True when the 50 element is tripped.
Status Input
Generator
Protection
True when the 81 Over element is tripped.
Status Input
Generator
Protection
True when the 81 Under element is tripped.
Status Input
Generator
Reverse
Rotation
True when the generator rotation is opposite of the
Phase Rotation setting.
Status Input
Generator
Stable
True when the Gen Stable condition settings have
been exceeded.
Status Input
Generator Test
Loaded
True when the Exercise Timer has started the
generator and run with load is selected.
Status Input
Generator Test
True when the Exercise Timer has started the
generator.
