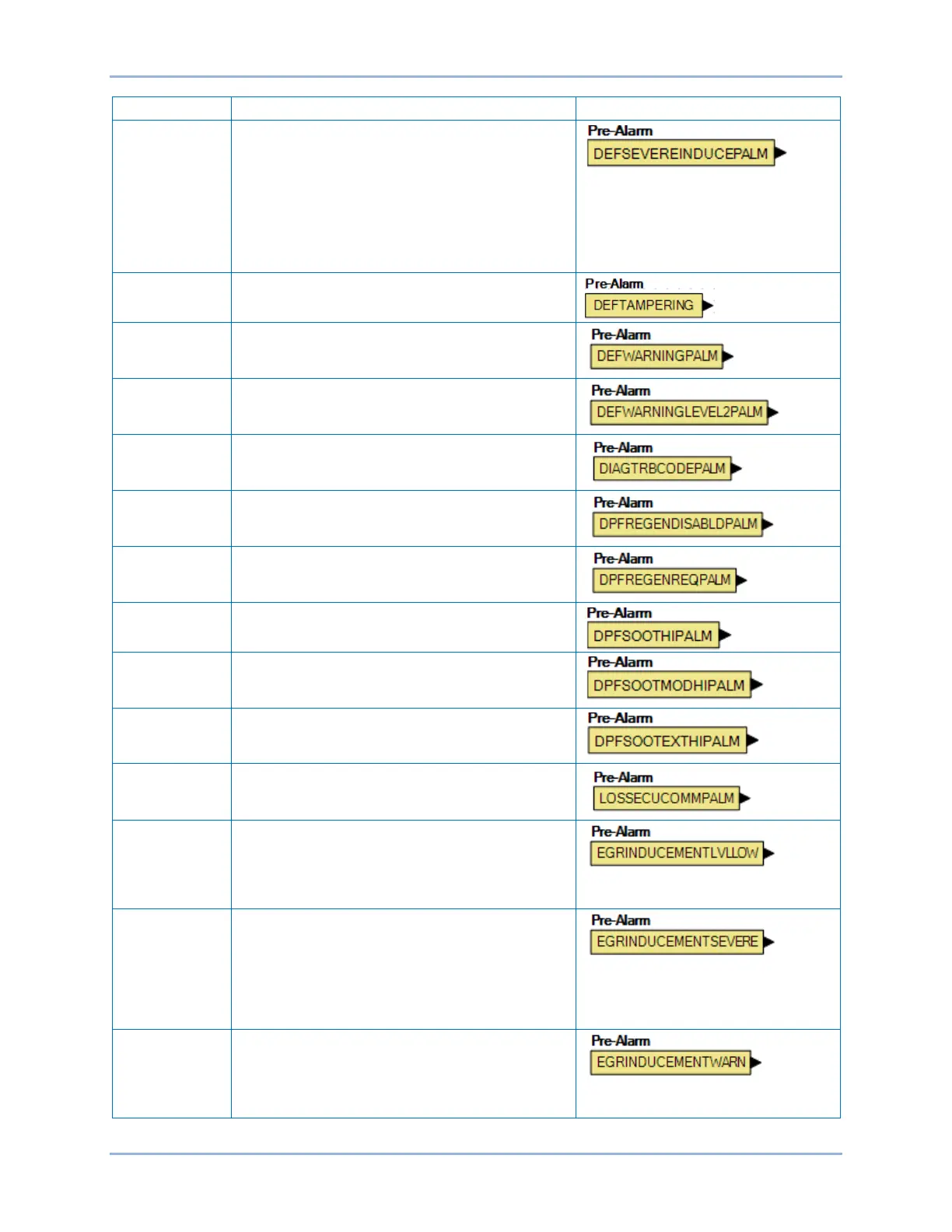

BESTlogic™Plus DGC-2020ES
Name
Description
Symbol
DEF Severe
Inducement
This pre-alarm indicates the highest level of
inducement not to operate the engine due to low or
poor quality Diesel Exhaust Fluid (DEF), or a
malfunction in the Exhaust After Treatment System
(EATS). The engine may operate in a reduced
power mode, or for a limited time, or may be
prevented from starting by the ECU until the
problem is corrected. A service tool may be required
to restart the engine.
DEF Tampering
True when the engine ECU reports “DEF
Tampering” via CAN Bus.
DEF Warning
This pre-alarm indicates the first level of warning
when EATS is not functioning properly or DEF
quality or level is not sufficient for proper operation.
DEF Warning
Level 2
This pre-alarm indicates the second level of warning
when EATS is not functioning properly or DEF
quality or level is not sufficient for proper operation.
Diag Trouble
Code
True when a Diagnostic Trouble Code exists.
DPF
Regenerate
Disabled
True when the Diesel Particulate Filter (DPF) lamp
status broadcast over CAN Bus indicates that DPF
regeneration is inhibited.
DPF
Regenerate
Required
True when the Diesel Particulate Filter (DPF) lamp
status broadcast over CAN Bus indicates that DPF
regeneration is required.
DPF Soot Level
High
True when the engine ECU reports via CAN Bus
that Diesel Particulate Filter (DPF) soot level is high.
DPF Soot Level
Moderately
High
True when Diesel Particulate Filter (DPF) lamp
status (yellow warning) broadcast over CAN Bus
indicates that the soot level is moderately high.
DPF Soot Level
Severely High
True when Diesel Particulate Filter (DPF) lamp
status (red warning) broadcast over CAN Bus
indicates that the soot level is severely high.
ECU Comm
Loss
True when communication to ECU has been lost.
EGR
Inducement
Level Low
True when an issue has been detected in the
Exhaust Gas Recirculation (EGR) system. This is
the second level of inducement to correct the issue.
There should also be Diagnostic Trouble Codes
providing additional information about the issue.
EGR
Inducement
Severe
True when an issue has been detected in the
Exhaust Gas Recirculation (EGR) system. This is
the third level of inducement to correct the issue. If
not corrected, engine power derating or shutdown
may occur. There should also be Diagnostic Trouble
Codes providing additional information about the
issue.
EGR
Inducement
Warning
True when an issue has been detected in the
Exhaust Gas Recirculation (EGR) system. This is
the first level of inducement to correct the issue.
There should also be Diagnostic Trouble Codes
providing additional information about the issue.
