Basler DGC-2020ES User Manual

9469200995 13-35
DGC-2020ES BESTlogic™Plus

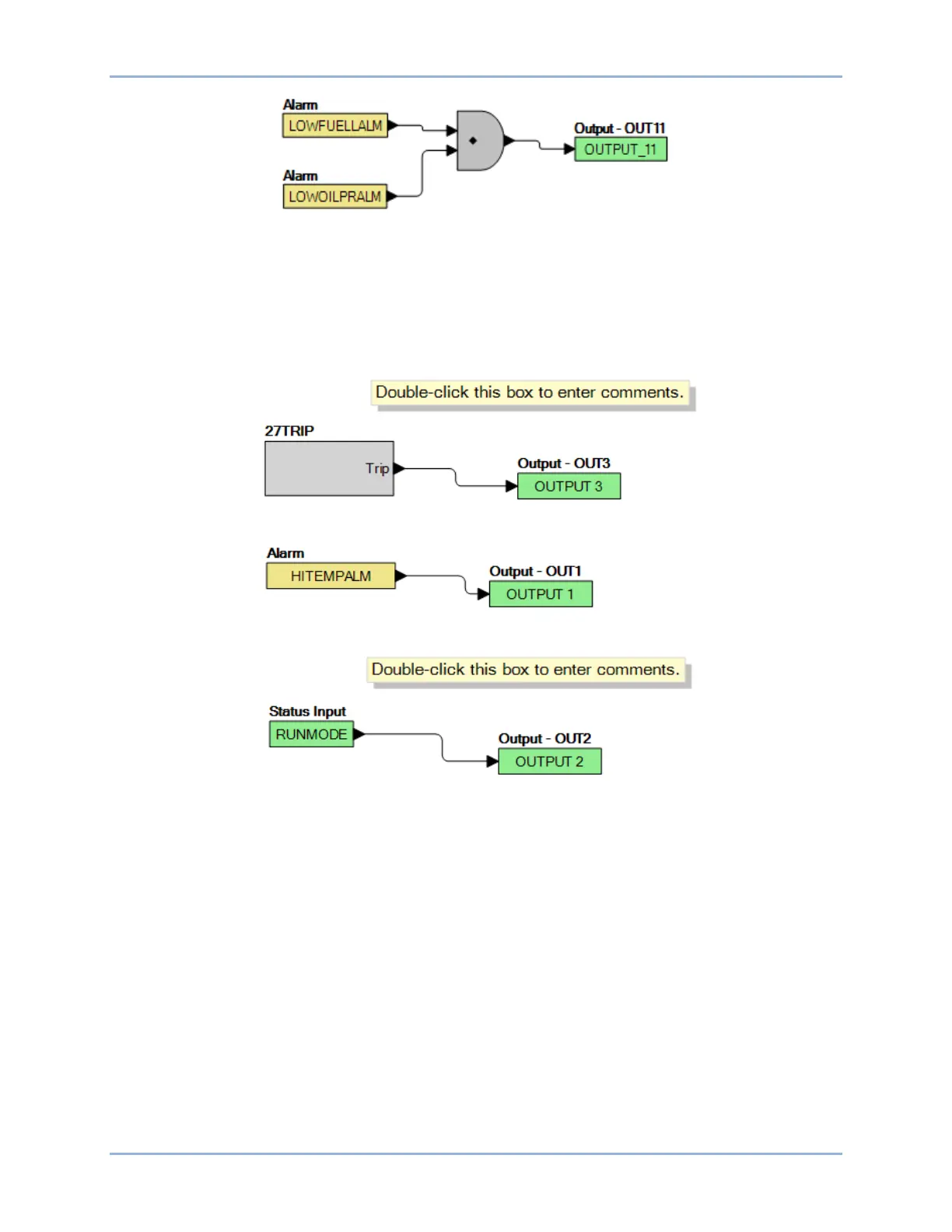

Figure 13-6. Example 2 – AND Gate Connections
Example 3 - Multiple Logic Connections
In this example, there are two comment boxes, which may be placed on the logic diagram. Double-click a
comment box to modify the inside text. Output 3 becomes true when the 27TRIP is true. Output 1
becomes true when the High Coolant Temp is true. Output 2 becomes true when the DGC-2020ES is in
RUN mode (RUN Mode true). Refer to Figure 13-7.
Figure 13-7. Example 3 – Multiple Logic Connections
