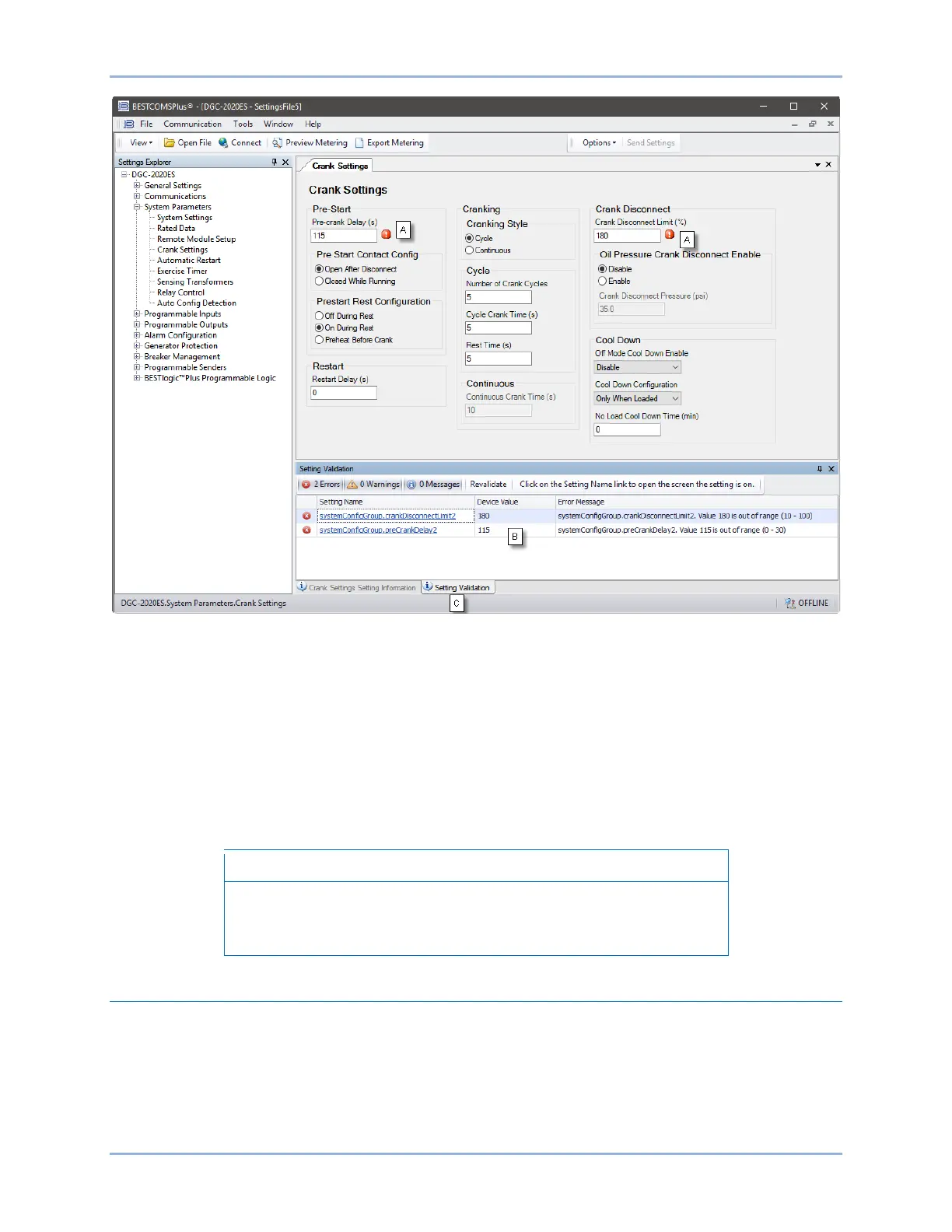

Figure 3-9. Flagged, Noncompliant Settings and the Seting Validation Window
The Setting Validation window, viewed by selecting the Setting Validation tab (locator C), displays three
types of annunciations: errors, warnings, and messages. An error describes a problem such as a setting
that is out of range. A warning describes a condition where supporting settings are invalid, causing other
settings to be noncompliant with the prescribed limits. A message describes a minor setting issue that
was automatically resolved by BESTCOMSPlus. An example of a condition triggering a message is entry
of a settings value with a resolution that exceeds the limit imposed by BESTCOMSPlus. In this situation,
the value is automatically rounded and a message is triggered. Each annunciation lists a hyperlinked
name for the noncompliant setting and an error message describing the issue. Clicking the hyperlinked
setting name takes you to the setting screen with the offending setting. Right-clicking the hyperlinked
setting name will restore the setting to its default value.
It is possible to save a DGC-2020ES settings file in BESTCOMSPlus
with noncompliant settings. However, it is not possible to upload
noncompliant settings to the DGC-2020ES.
Metering Explorer
The Metering Explorer is a convenient tool within BESTCOMSPlus used to navigate through the various
metering screens of the DGC-2020ES plugin.
These screens allow the user to view real-time system data including generator voltages and currents,
input/output status, alarms, reports, and other parameters. Refer to the Metering chapter in the Operation
manual for more information on the Metering Explorer.
