AW00118508000 Acquisition Control
Basler racer Camera Link 83
Using the Line Trigger Wait Signal with the Timed Exposure Mode
When the camera is set for the timed exposure mode, the rise of the line trigger wait signal is based
on the current exposure time setting and on when readout of the current line will end. This
functionality is illustrated in Fig. 29.
If you are operating the camera in the timed exposure mode, you can avoid overtriggering by always
making sure that the line trigger wait signal is high before you trigger the start of line capture.
Line Acquisition N
Exposure
Readout
Time
Line Trig Wait
Signal
Line Acquisition N+1
Exposure
Readout
Line Acquisition N+2
Exposure
Readout
ExLSTrig
Signal
Exp. Time Setting
Exp. Time Setting
The rise of the line trigger wait
signal is based on the end of
line readout and on the current
exposure time setting.
= Camera is in a "waiting
for line start trigger" status

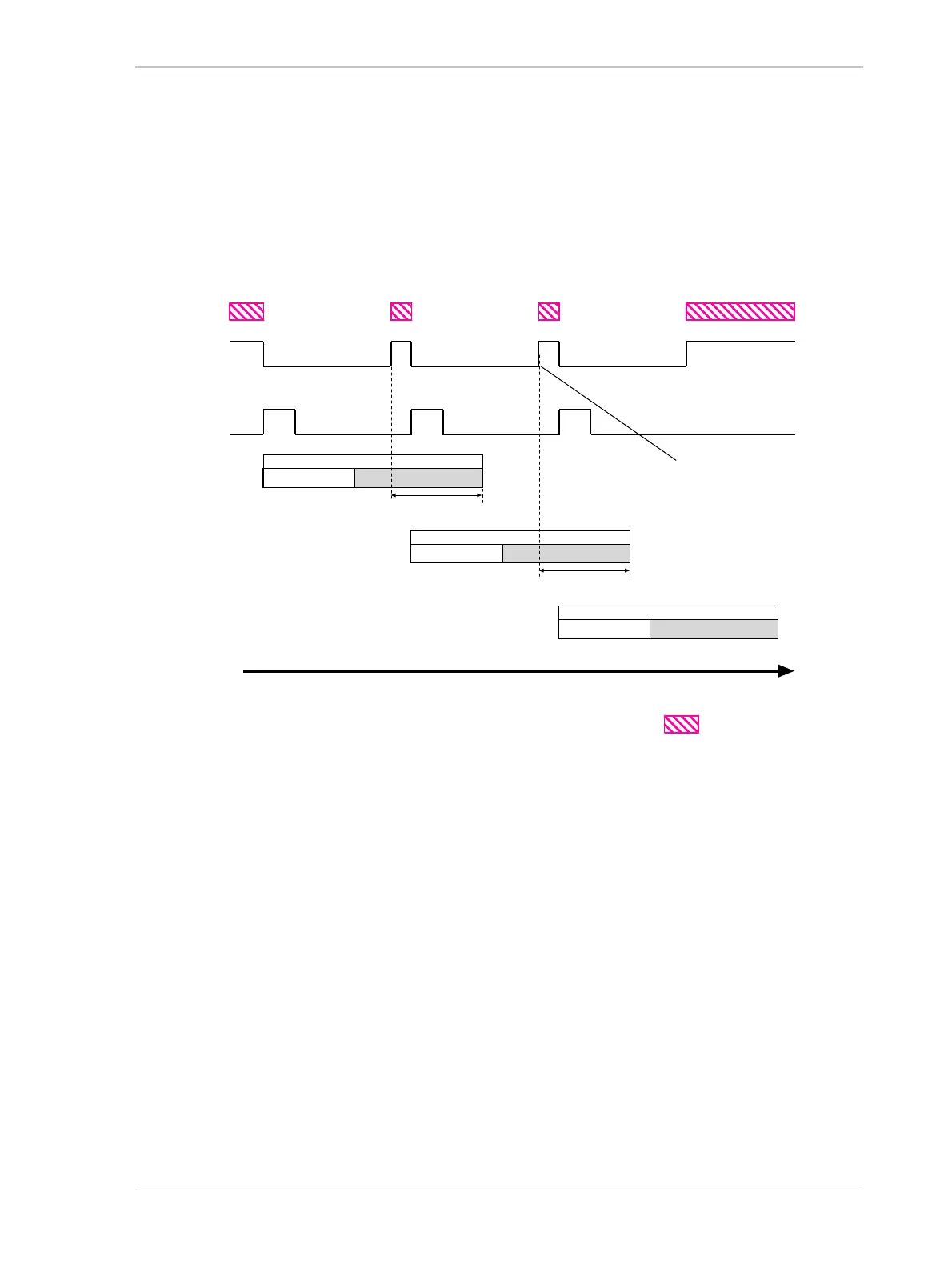

Fig. 29: Line Trigger Wait Signal with the Timed Exposure Mode
