Wheels
Rims size is 16" and tyres size is 2-16".
The frontwheel spoke-length is 168 mm, thickness Nr. 12
number of spokes 28.
Thebrakeside
rearwheel spoke-length is 164 mm, thick-
ness Nr.
11,
the freewheel side spokes are 166 mm long
and also of thickness Nr. 11.
Total number of spokes is 36.
Both wheels should be respoked with a "3 over"-pattern.
When respoking the rearwheel always start with the
shorter brake side spokes.
For dis- and reassembly of the freewheel always use a
freewheel-remover'.
Both hubs are full drum hubs with cups and cone
bearings.
The front hub has 11 balls 7/32", the rear hub 13 balls
3/16 " (see pict. 41).

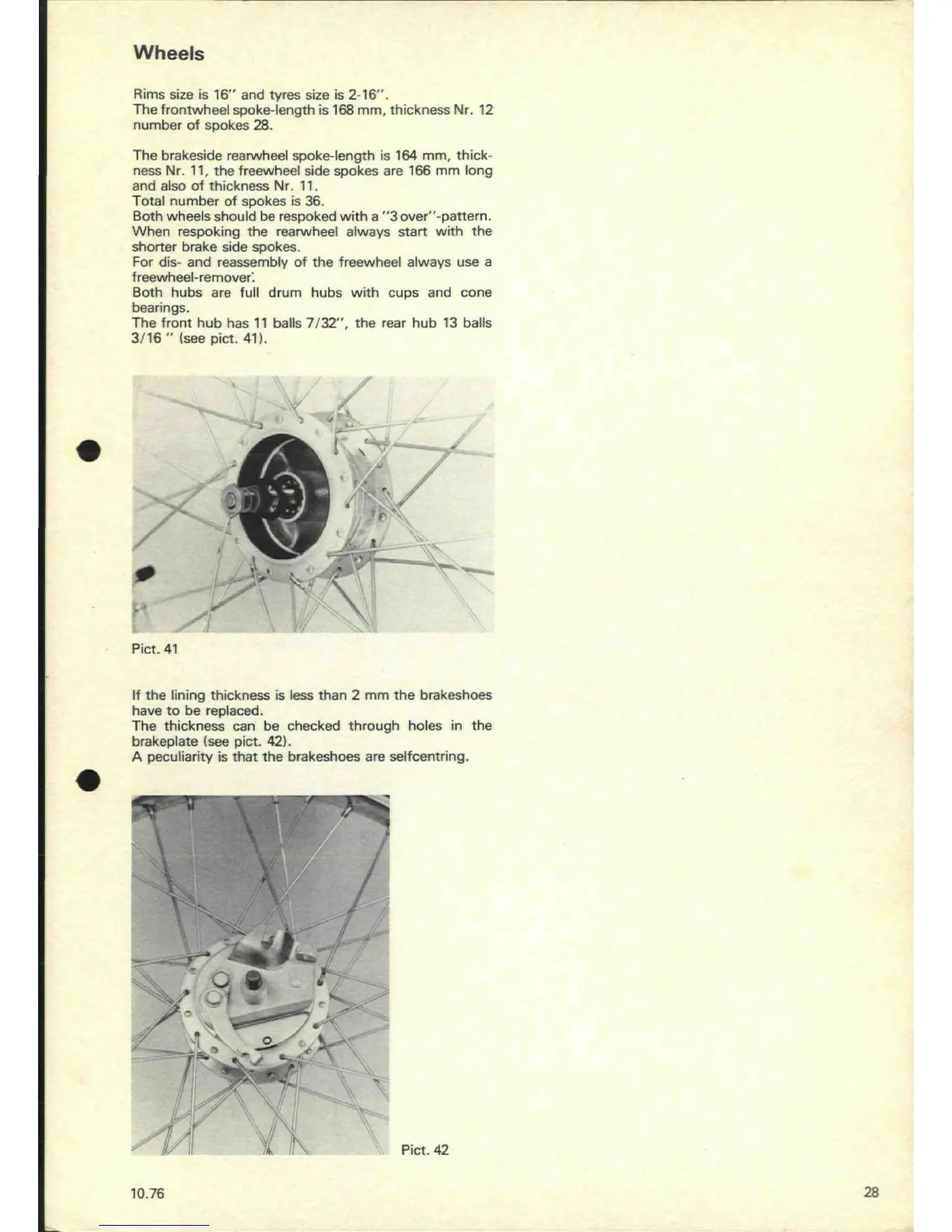

Pict. 41
If
the lining thickness is less than 2 mm the brakeshoes
have to be replaced.
The thickness can be checked through holes in the
brakeplate (see pict.
42).
A peculiarity is that the brakeshoes are selfcentring.
