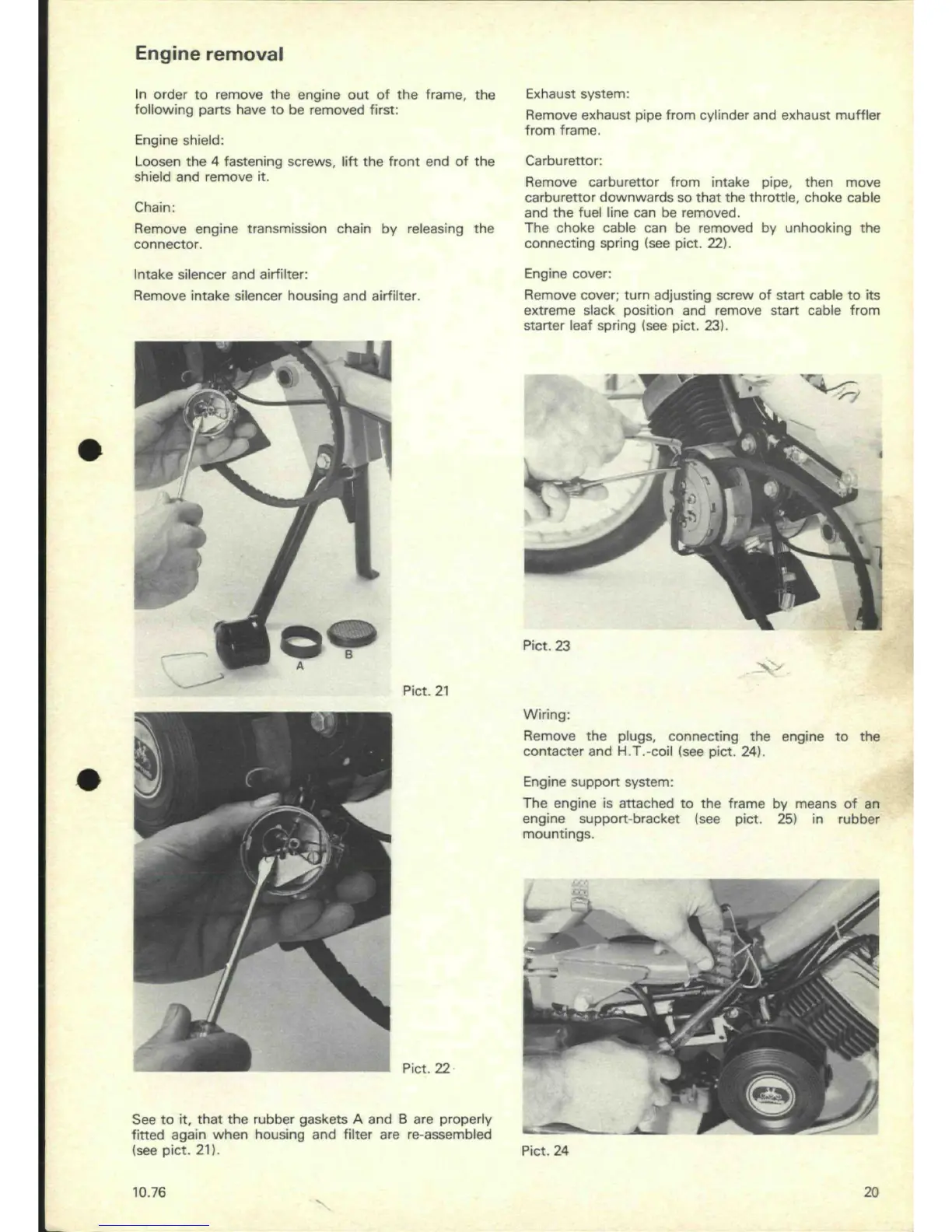

Engine removal
In order to remove the engine out of the frame, the
following parts have to be removed first:
Engine shield:
Loosen the 4 fastening screws, lift the front end of the
shield and remove it.
Chain:
Remove engine transmission chain by releasing the
connector.
Intake silencer and airfilter:
Remove intake silencer housing and airfilter.
4J
»
©
B
Pict. 21
^
Pict. 22
See to it, that the rubber gaskets A and B are properly
fitted again when housing and filter are re-assembled
(see pict. 21).
Exhaust system:
Remove exhaust pipe from cylinder and exhaust muffler
from frame.
Carburettor:
Remove carburettor from intake pipe, then move
carburettor downwards so that the throttle, choke cable
and the fuel line can be removed.
The choke cable can be removed by unhooking the
connecting spring (see pict. 22).
Engine cover:
Remove cover; turn adjusting screw of start cable to its
extreme slack position and remove start cable from
starter leaf spring (see pict. 23).
^-7
V**
\
ft
1
.
Pict. 23
Wiring:
Remove the plugs, connecting the engine to the
contacter and
H.T.-coil
(see pict. 24).
Engine support system:
The engine is attached to the frame by means of an
engine support-bracket (see pict. 25) in rubber
mountings.
>
A
Pict. 24
10.76
X
20
