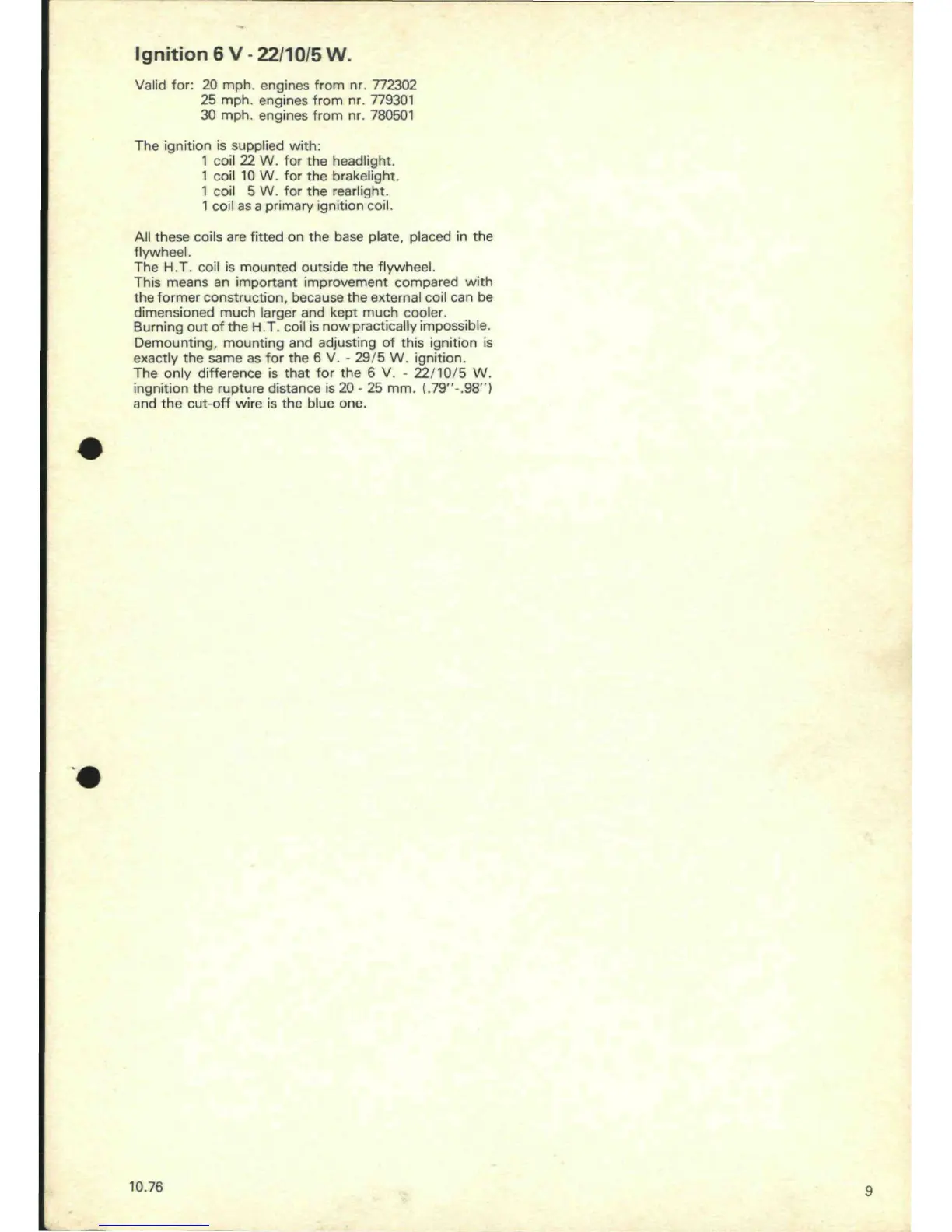

Ignition 6 V-22/10/5 W.
Valid for: 20 mph. engines from nr. 772302
25 mph. engines from nr. 779301
30 mph. engines from nr. 780501
The ignition is supplied with:
1 coil 22 W. for the headlight.
1 coil 10 W. for the brakelight.
1 coil 5 W. for the rearlight.
1 coil as a primary ignition coil.
All these coils are fitted on the base plate, placed in the
flywheel.
The H.T. coil is mounted outside the flywheel.
This means an important improvement compared with
the former construction, because the external coil can be
dimensioned much larger and kept much cooler.
Burning out of the H.T. coil is now practically impossible.
Demounting, mounting and adjusting of this ignition is
exactly the same as for the 6 V. - 29/5 W. ignition.
The only difference is that for the 6 V. - 22/10/5 W.
ingnition the rupture distance is 20 - 25 mm. (.79".98")
and the cut-off wire is the blue one.
