Page 17>"-&#$95<19)(&?2$+#1"<+@&,($)+$&9)((&ABCCCBCDDBEFGF/Item 57608
HI>;JKLM;NIJOL!PIO!J;!I!Q; H;JRM
Q)(14-)#1<8$&P1#$-&I<8($&O<*19)#"-

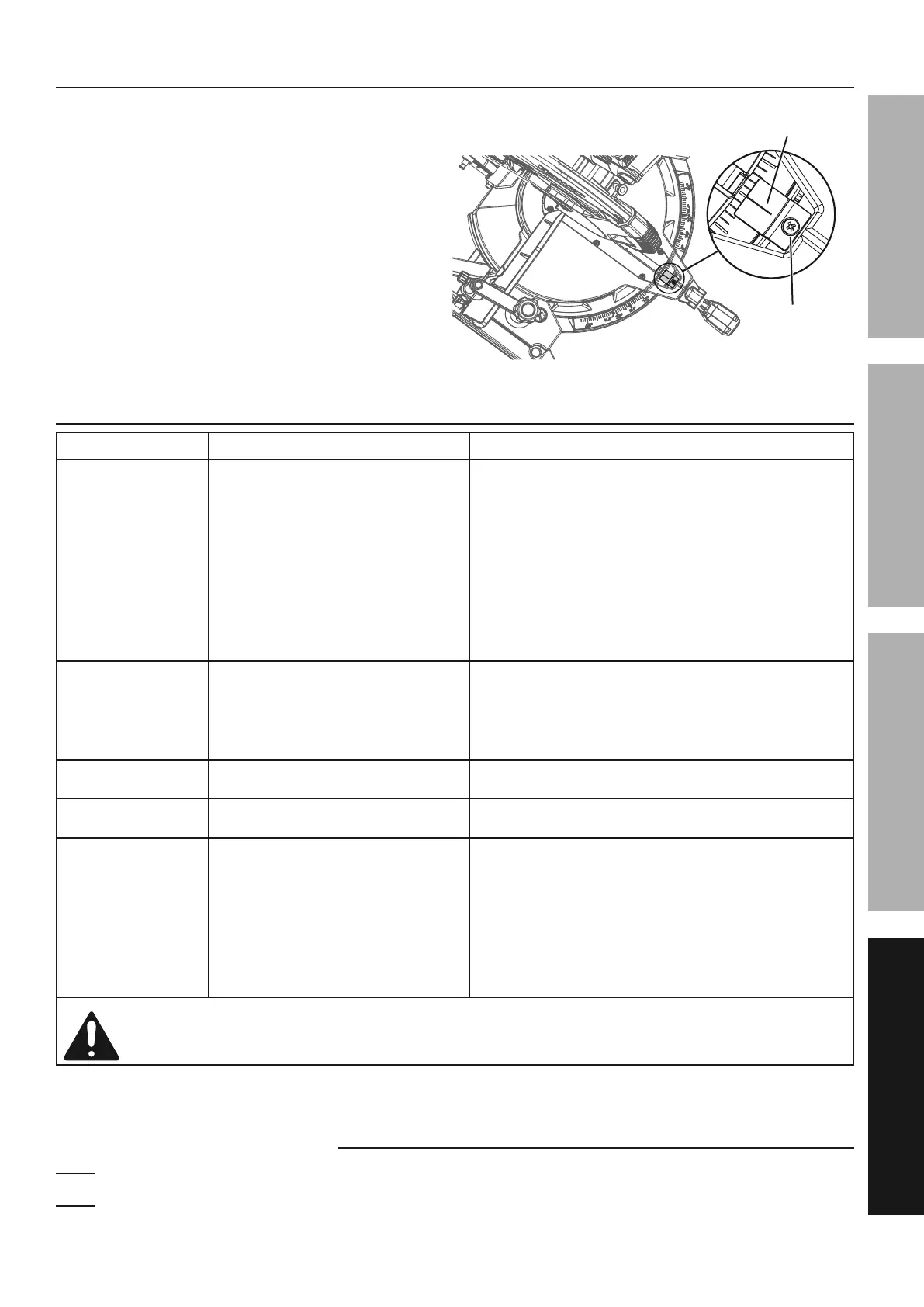

Check the accuracy of the Miter Angle Indicator
only after checking or adjusting the Fence to
confirm that it is at 90º to the Saw Blade.
1. Position the Miter Table at 0°.
2. Loosen the Adjustment Screw holding
the Miter Angle Indicator in place.
3. Adjust the red line on the Miter Angle Indicator
to the 0° mark on the Miter Scale.
4. Retighten the Screw.
P1#$-&I<8($&P1#$-&I<8($&
O<*19)#"-O<*19)#"-
I*]2+#:$<#&I*]2+#:$<#&
H9-$3H9-$3
J-"24($+5""#1<8
M-"4($: M"++14($&Q)2+$+ U1X$(.&H"(2#1"<+
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset breaker
tripped (if equipped).
4. Internal damage or wear.
(Carbon brushes or
Trigger, for example.)
1. Check that cord is plugged in.
2. Check power at outlet. If outlet is unpowered,
turn off tool and check circuit breaker.
If breaker is tripped, make sure circuit is right
capacity for tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates slowly. 1. Forcing tool to work too fast.
2. Extension cord too long or cord
diameter too small.
1. Allow tool to work at its own rate.
2. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 6.
Performance
decreases over time.
Carbon brushes worn or damaged. Have qualified technician replace brushes.
Excessive noise
or rattling.
Internal damage or wear. (Carbon
brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blocked motor housing vents.
3. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Wear ANSI-approved safety goggles and
NIOSH-approved dust mask/respirator while
blowing dust out of motor using compressed air.
3. Eliminate use of extension cord. If an extension
cord is needed, use one with the proper diameter
for its length and load. See Extension Cords
in Grounding section on page 6.
& >"(("3&)((&+)7$#.&,-$9)2#1"<+&35$<$W$-&*1)8<"+1<8&"-&+$-W191<8$&#""(/&&&
V1+9"<<$9#&,"3$-&+2,,(.&4$7"-$&+$-W19$/
N$9"-*&M-"*29#^+&H$-1)(&!2:4$-&_$-$%&
!"#$%&O7&,-"*29#&5)+&<"&+$-1)(&<2:4$-@&-$9"-*&:"<#5&)<*&.$)-&"7&,2-95)+$&1<+#$)*/
!"#$% Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175418746 when ordering parts.
