23
Unpacking the appliance
When unpacking the appliance please check that the following items
are contained within the packaging:-
1 Baumatic hob
1 Ceramic hob scraper
1 Installation and instruction manual
1 Baumatic guarantee card
4 Fixing brackets
4 Fixing screws
Installing the appliance

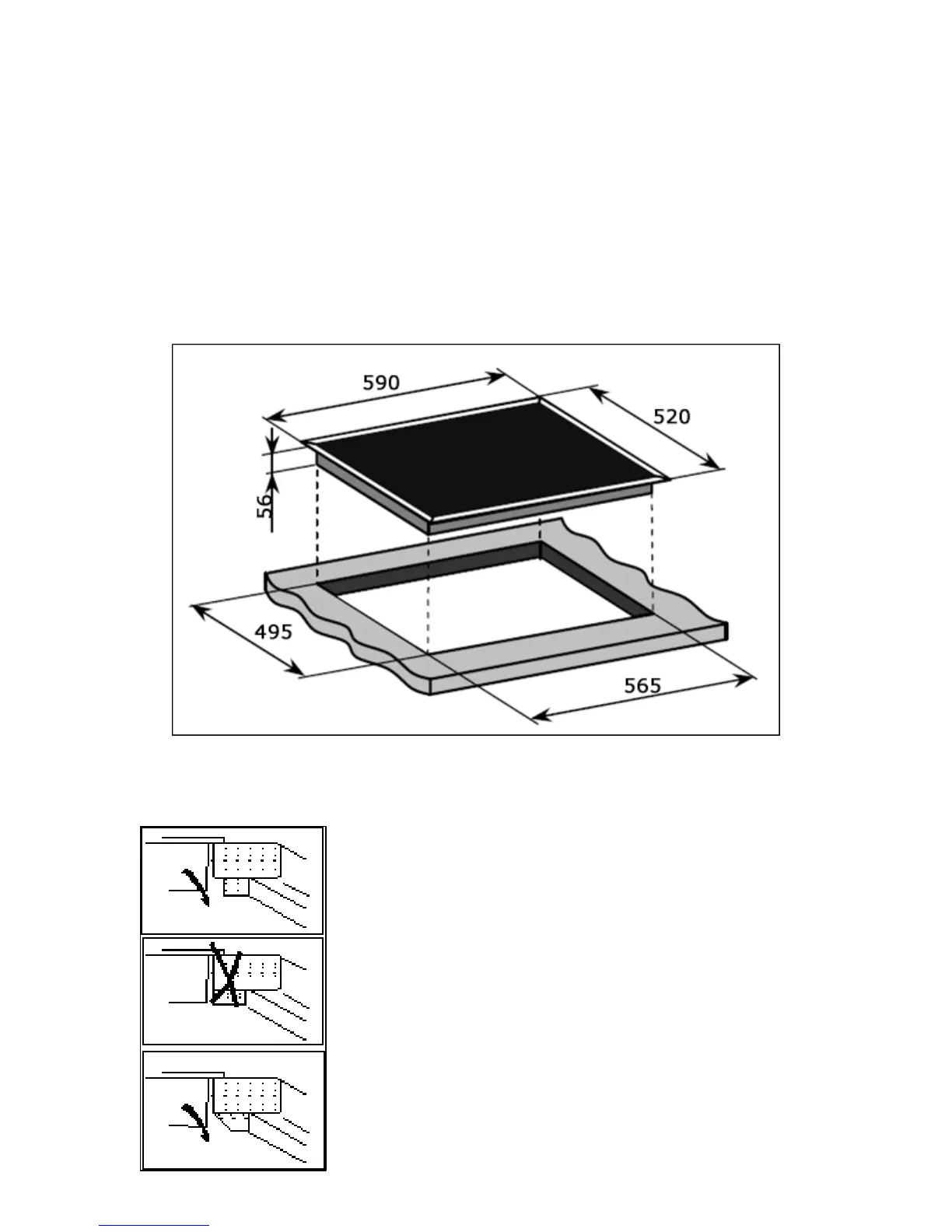

o Cut a hole in the worktop that corresponds with the drawing
shown above.
o IMPORTANT: There are ventilation
holes around the outside of the hob.
YOU MUST ensure that these holes are
not blocked by the work top, when you
put the hob into position (see drawing
opposite).
o Carefully turn the hob upside down and
place it on a cushioned mat.
