Bus cover – hollow shaft G0 and GB

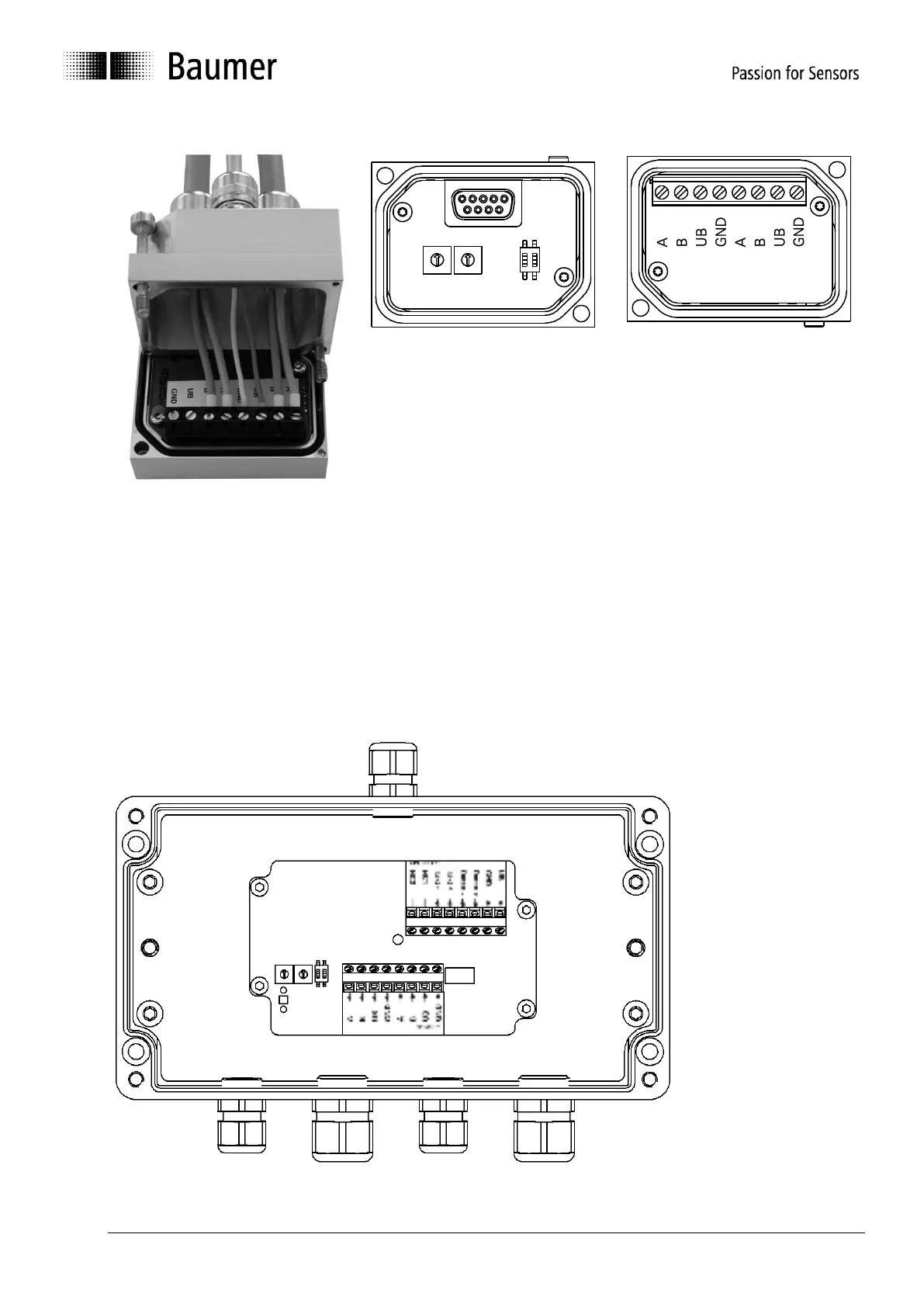

The connection cable is wired to the 8-pin terminal block inside the interface converter.
The additional functions Zero and UP/DOWN provided by the encoder are to be assigned as follows for
optimum interference immunity:
- Zero additionally assigned to GND
- UP/DOWN additionally assigned to UB
The encoder outputs DV, DV-MT may either be cut off and isolated or assigned to the available
terminals NC1(DV) respectively NC2 (DV-MT).
