3 Mounting the process display
1
3
2

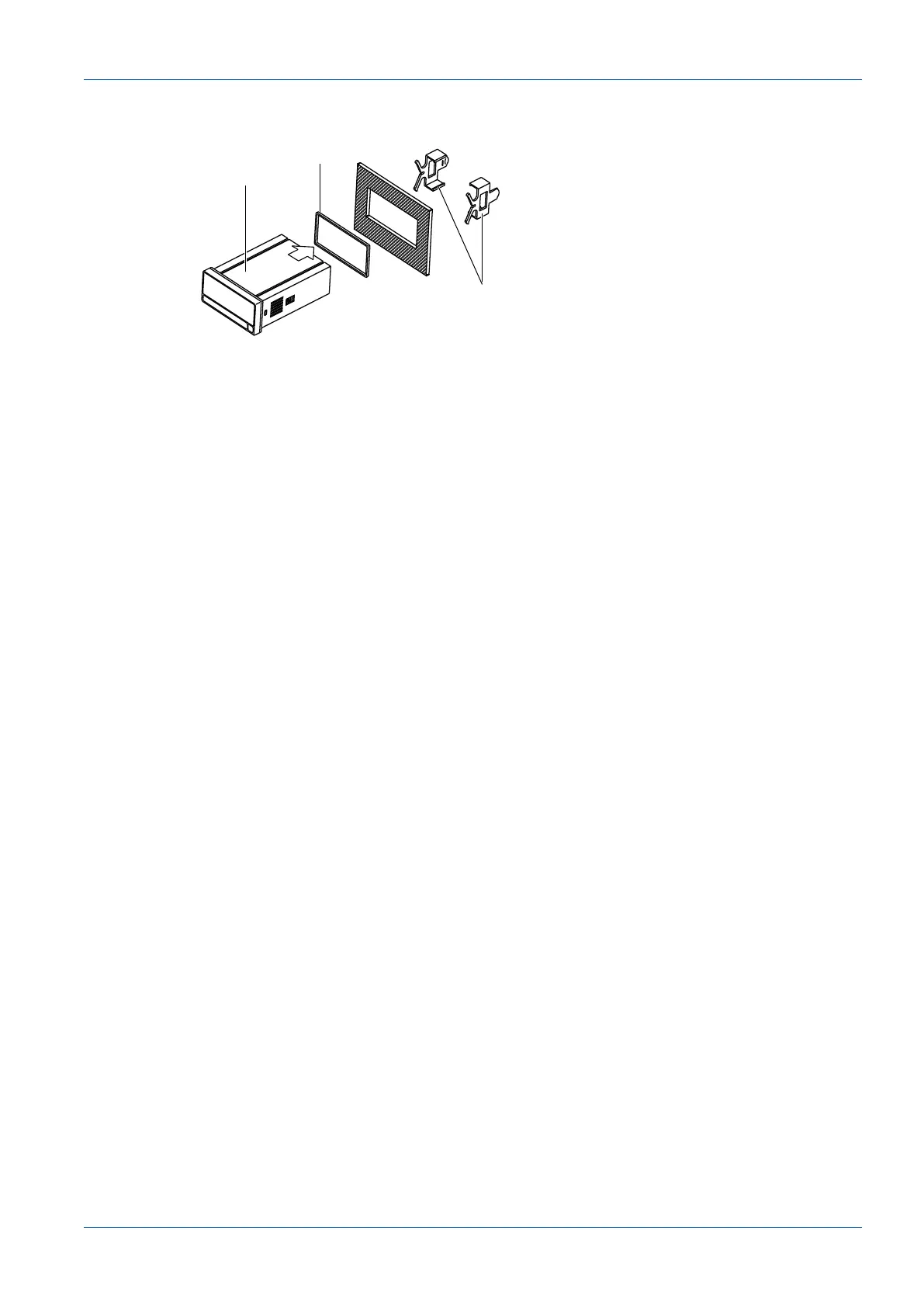

Instruction:
a) Prepare the cut-out according to the dimensions.
b) Push device (1) with seal (2) into the cut-out.
c) Secure the device from behind using the clamping frame (3).
d) Perform the electrical connection.
