6 Operating functions
6.1 Input signal configuration
This function is used to configure the input signal.

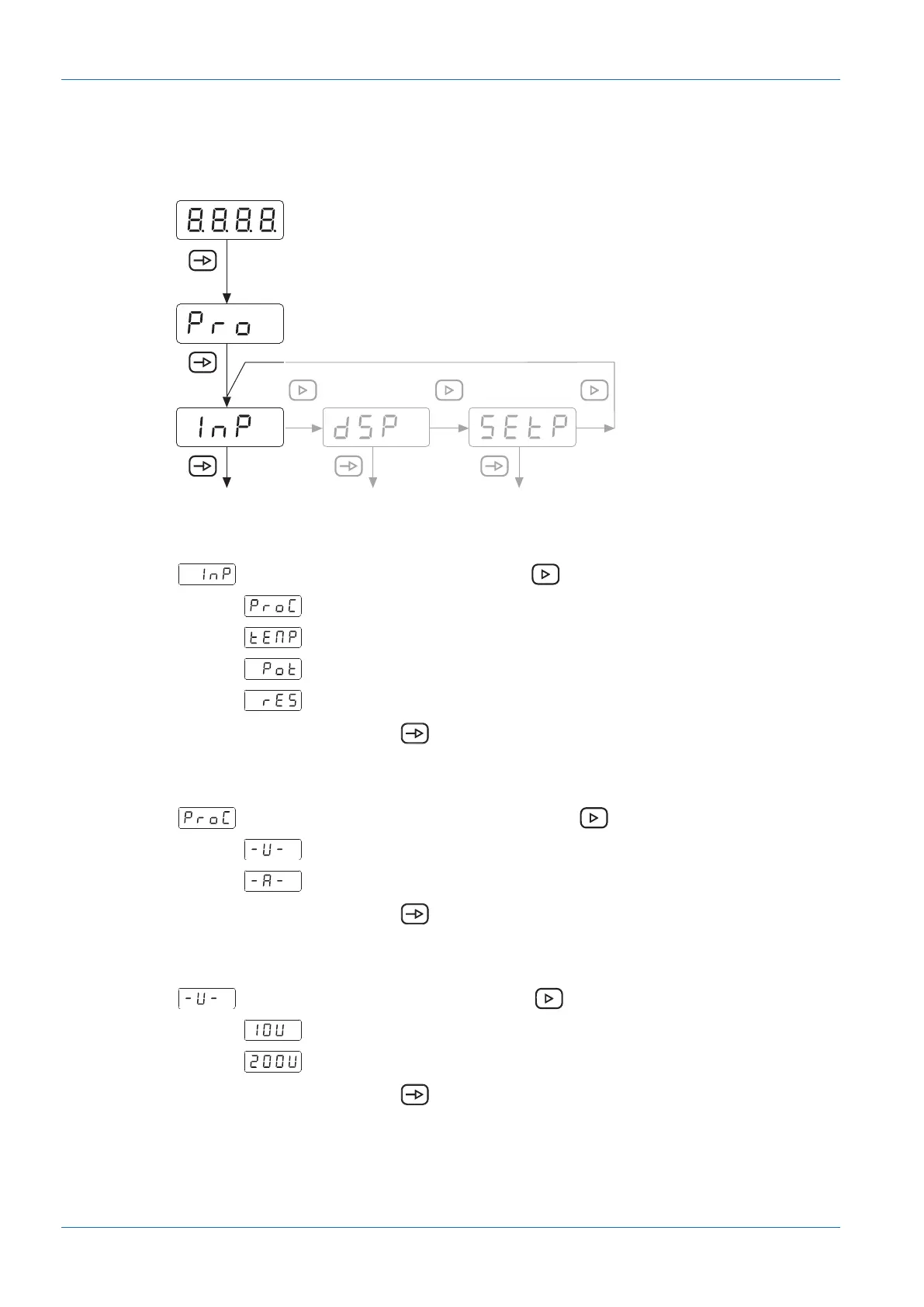

Configuration
Input signal
Select the input signal type with l.
Standard signals ±10 V, ±20 mA
Temperature: Thermocouples, Pt100
Potentiometer
Resistor
Confirm with .
Input standard signals
Select standard signal type with button .
Input signal voltage
Input signal current
Confirm with .
Input signal voltage
Select voltage range with button .
Selection: Standard signal ±10 V
Selection: Voltage ±200 VDC
Confirm with .
