Baumer PA408 - Configuration of the Limit Value Outputs

Baumer Operating functions | 6
V1 | PA408 Operating Manual 19

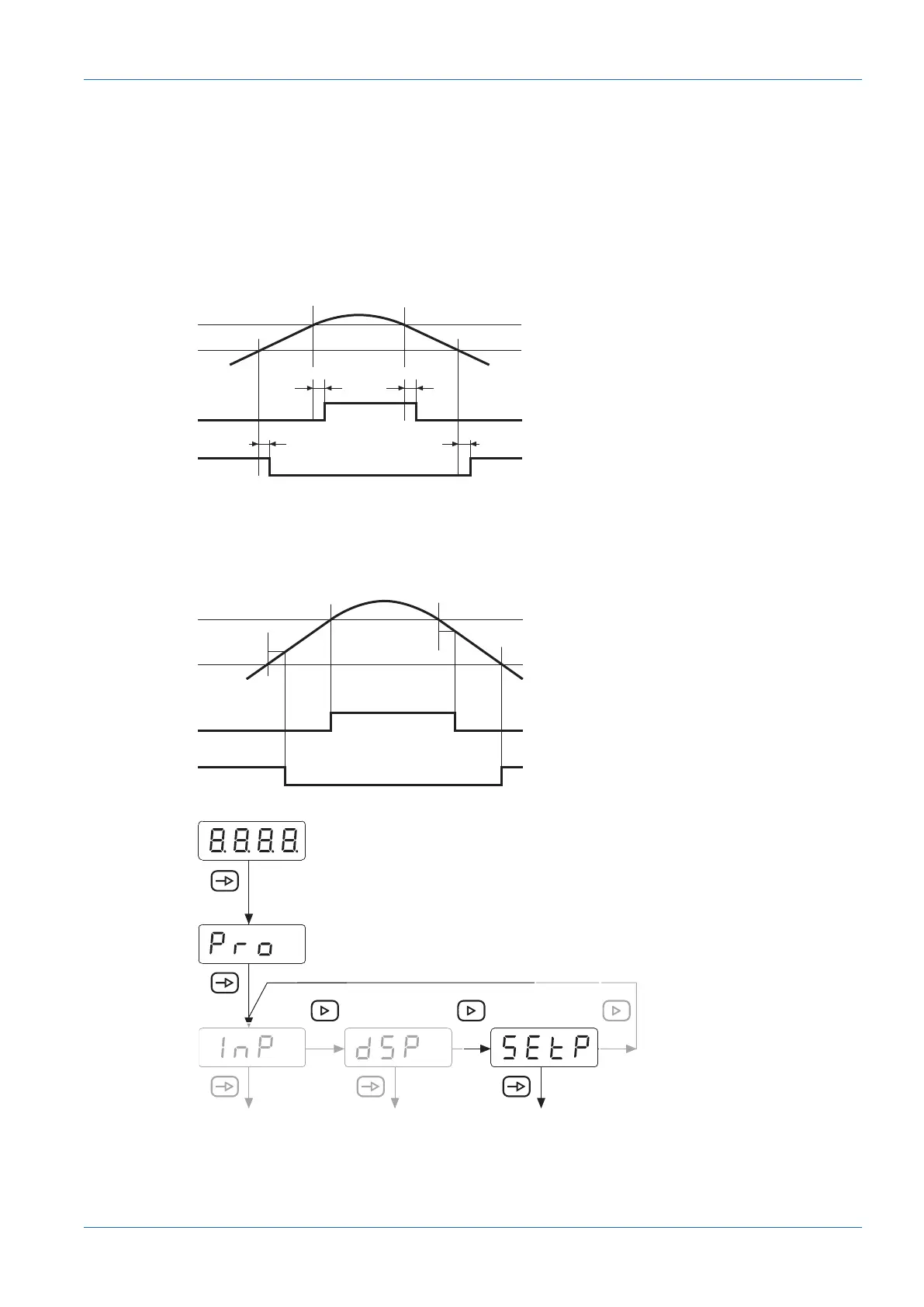

6.3 Configuration of the limit value outputs
The device has a relay limit value output. Programming High, Low or HighLow can be used to
determine whether the outputs are activated when the display value is ≥ or ≤ the limit value. The
outputs can be programmed with a time delay or with a hysteresis.
Time delay of the limit value outputs
The time delay is programmable from 0 to 99 s. This acts both when the limit value outputs are
switched on and off.
DelayDelay
DelayDelay
Relay 1 =
HIGH
Relay 2 =
LOW
Limit 1
Limit 2
Ill.2: Limit value outputs - Time delay
Asymmetric hysteresis
The hysteresis is programmed in display units from 0 to 9999. This only takes effect when the
limit value outputs are switched off.
Hysteresis
Hysteresis
Relay 1 =
HIGH
Relay 2 =
LOW
Limit 1
Limit 2
Ill.3: Limit value outputs - asymmetrical hysteresis
Configuration of the
Limit values
