Proceed with configuration of display offset.
Programmable from -9.9 to +99 units depending on resolution.
The offset value can serve to compensate for any difference between actual
value and measured value.
Confirm with .

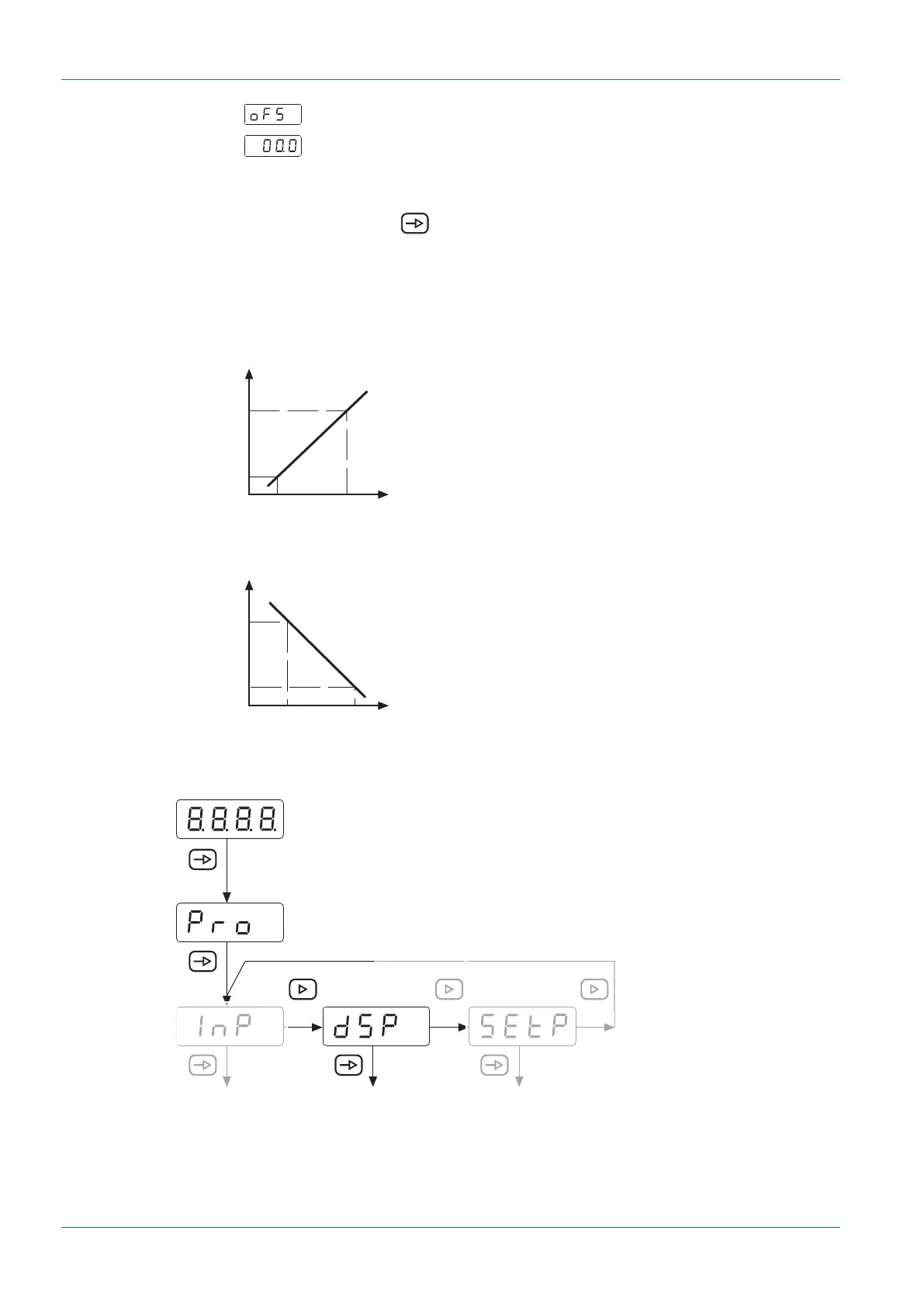

6.2 Configuration of the display
This function is used to configure the representation of the input signal on the display.
Positive gradient:
Displayed
value 2
Displayed
value 1
Measured
value 1
Measured
value 2
The scaling determines the relationship between the in-
put signal and the display value. For linear behavior, two
measured values(inP) or display values(dSP) must be
defined. To achieve the best precision, these 2 points
should be selected at both ends of the display range.
Negative gradient:
Displayed
value 1
Displayed
value 2
Measured
value 1
Measured
value 2
The coordinates of these two points can be entered di-
rectly using the keypad (scaling mode) or the measured
values are automatically adopted. Only the assigned dis-
play values need to be entered via the keypad (teach
mode).
Configuration
Display
