4 | Electrical connection of the process display Baumer
8 Operating Manual PA408 | V1
4 Electrical connection of the process display
Instruction:
a) Make sure the device is disconnected from power supply and not live.
b) Connect the device according to the pin assignment.

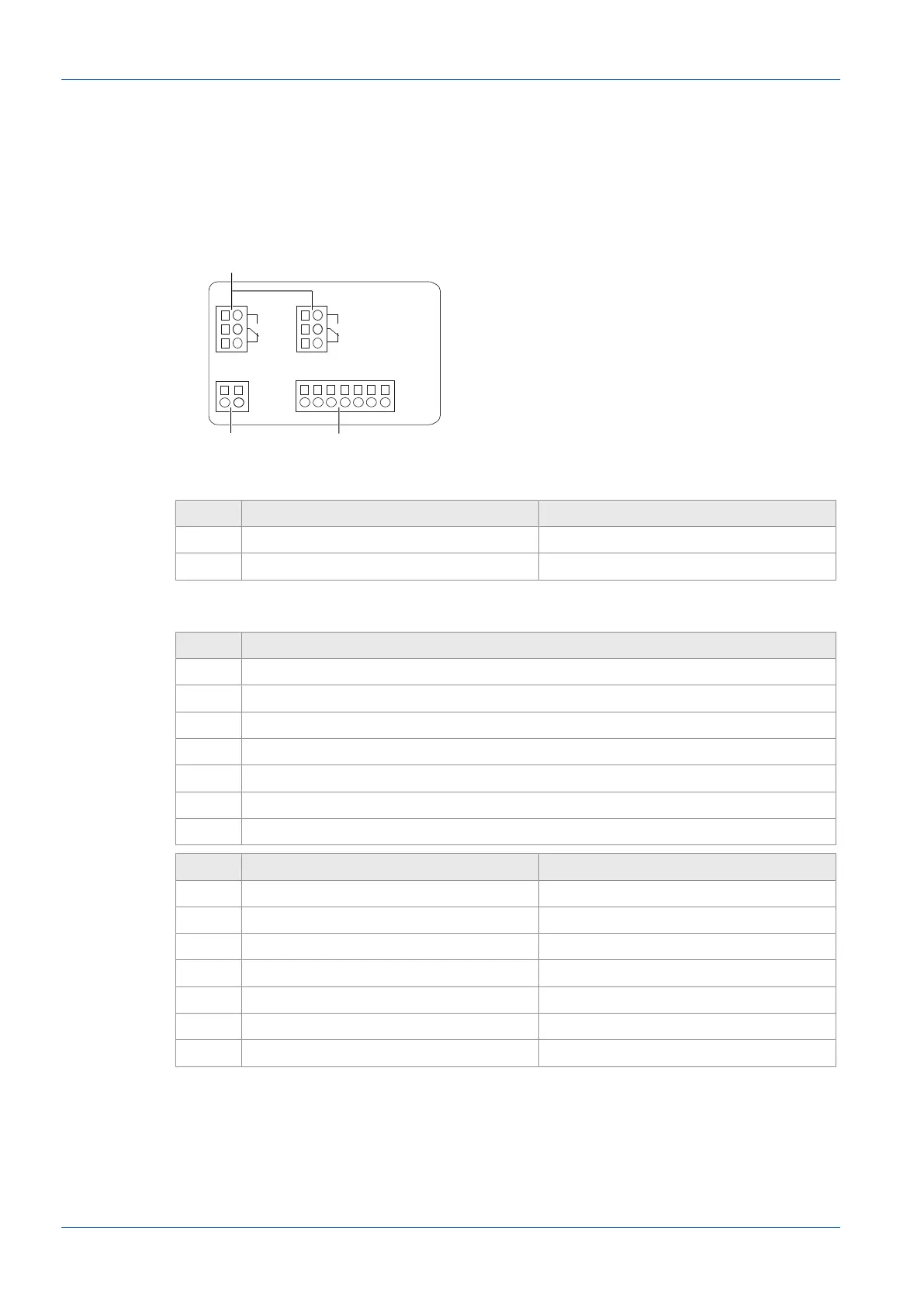

Pin assignment (at rear)
2
1
-
+
54
3
7
621
4
5
6
1
2
3
3
21
Operating voltage (1)
Pin VAC VDC
1 Phase -
2 Neutral +
Input signal (2)
Pin Current/voltage
1 Common 0V
2 –
3 –
4 –
5 ±20mA
6 ±24 Sensor supply
7 ±10V, ±200V
Pin Thermocouple Pt100/Pt1000
1 Thermocouple - Pt100 Common /Pt1000
2 Thermocouple + Pt100 Common /Pt1000
3 n.c. n.c.
4 n.c. Pt100
5 – –
6 – –
7 – –
