Baumuller DST2 Series User Manual

TAM 00695 23
DST2-135 – 400 W 10 / 2019
Three-phase synchronous motor, water-cooled English

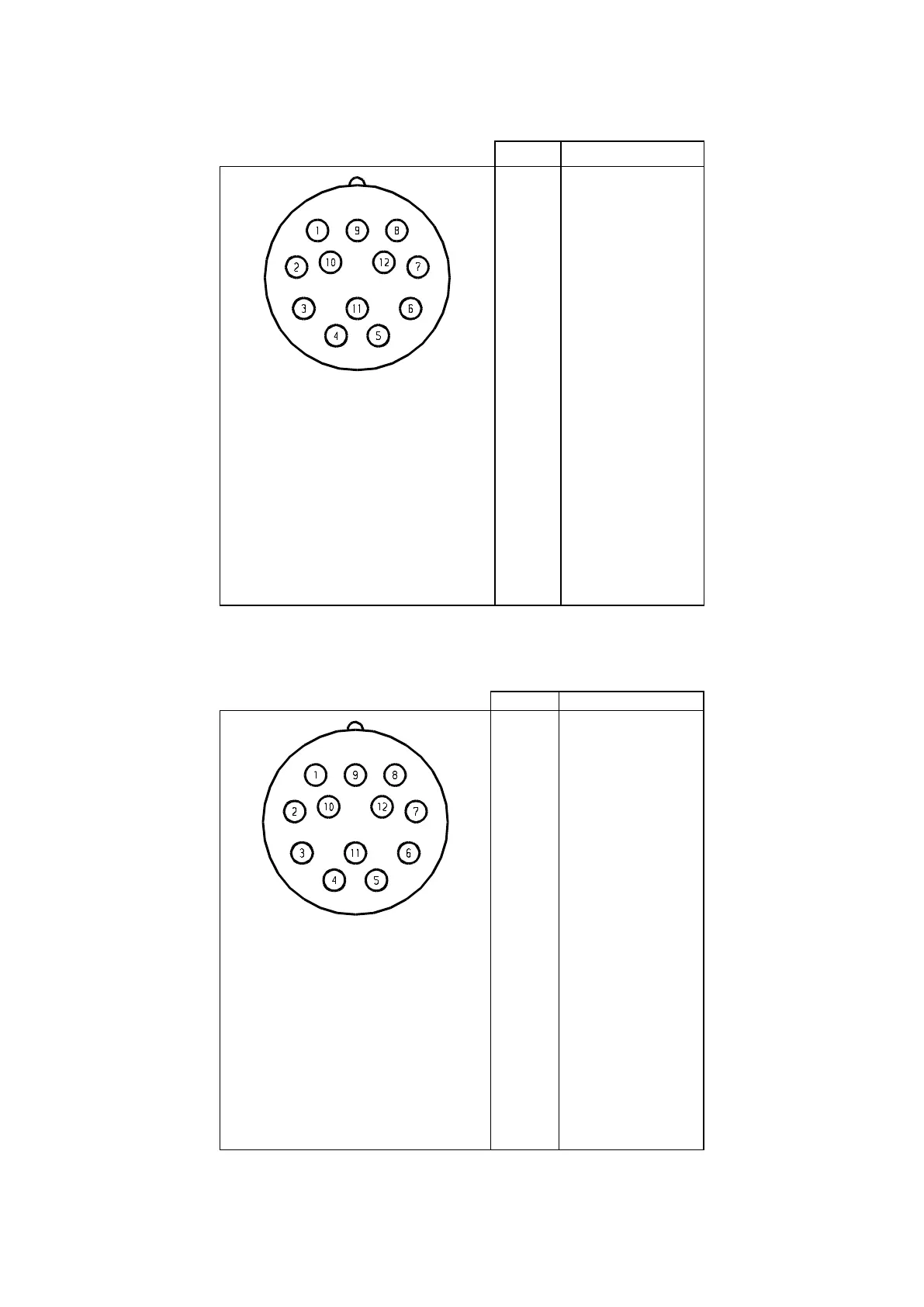

7.2 Control port : Resolver:
Pin
Signal
View to contact side
of female connector
1
2
3
4
5
6
7
8
9
10
11
12
cos -
sin –
sin +
cos +
Ref +
Ref -
Figure 3: Pool assignment resolver
7.3 Control port : SRS / SRM 50
(encoder with Hiperface-port from SICK / Stegmann companies)
Pin
Signal
View to contact side
of female connector
1
2
3
4
5
6
7
8
9
10
11
12
ref cos
+ 485
sin
ref sin
- 485
cos
Schirmung
Gnd
+ U
Figure 4: Pool assignment SRS / SRM 50
