Systems(someoptional)
35
7.7. AC System
Thealternatingcurrent(AC)systemissuppliedwithpowerbythesourceslistedbelow.Thesesupplythecomponents
listed in tables below which show the settings of the overload protection breakers/fuses. This setting is polarized.
The AC system is being fed by the following sources of power:
Energy source Number Position
Shore connection 2(1forthegeneralconsumers,oneforthe
airconditioningunit)
Aft deck, port side in bulwark
Generator 1 Engine room, STBD side
The three power source selector switches are located near the AC3 panel underneath the helmsmans seat on main
deck. AC fuses/breakers are provided in various circuits as follows: The AC system supplies the below consumers:
Pos. Description
1 Hotwaterboiler
2 Panel230VFI(andextension)
3 Charger consumer
4 Chargerwindlassandbowthruster(Option)
5 Anodeearthing(transomplate)
6 ShoreconnectionsocketA/Cunit(Option),Consumer(2x)
7 Socket230V
8 Socketwashingmachine230V(Option)
9 Ceramic hob
10 Cockpitgrill,gasrespectively230V(Option)
11 Chiller-A/CUnit(Extension)(Option)
12 Pumpchiller-A/CUnit(Option)
13 Generator(Option)
14 FI-breakershoreconnections(3x)(partlyOption)
15 Turn-/changeoverswitchGenerator(ShoreconnectionorGenerator)

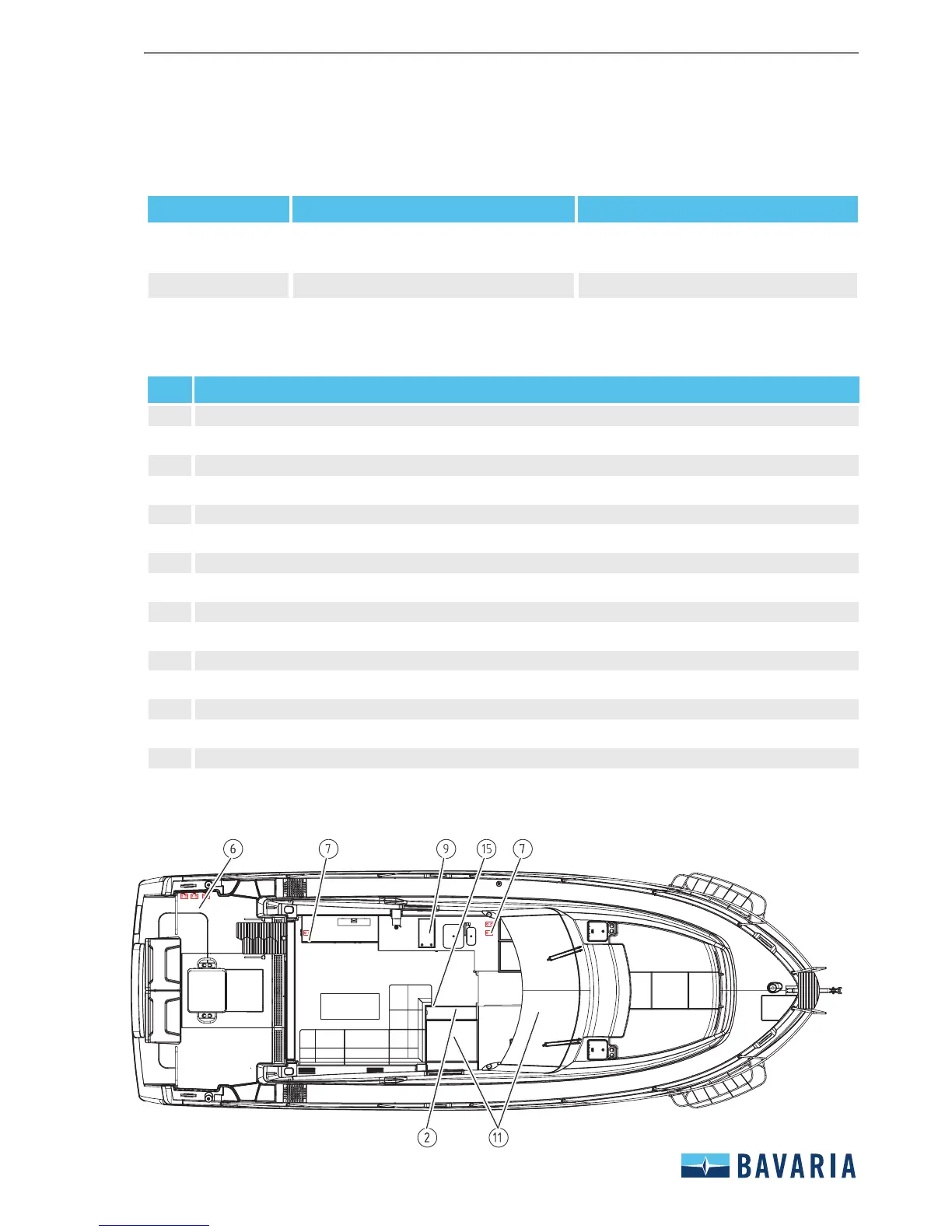

7.7.1. Drawing main deck
