72 EcoBlue System 7219708 - 01 (04/15)
14 32 Model Supplement
14.1 32 Model Supplement

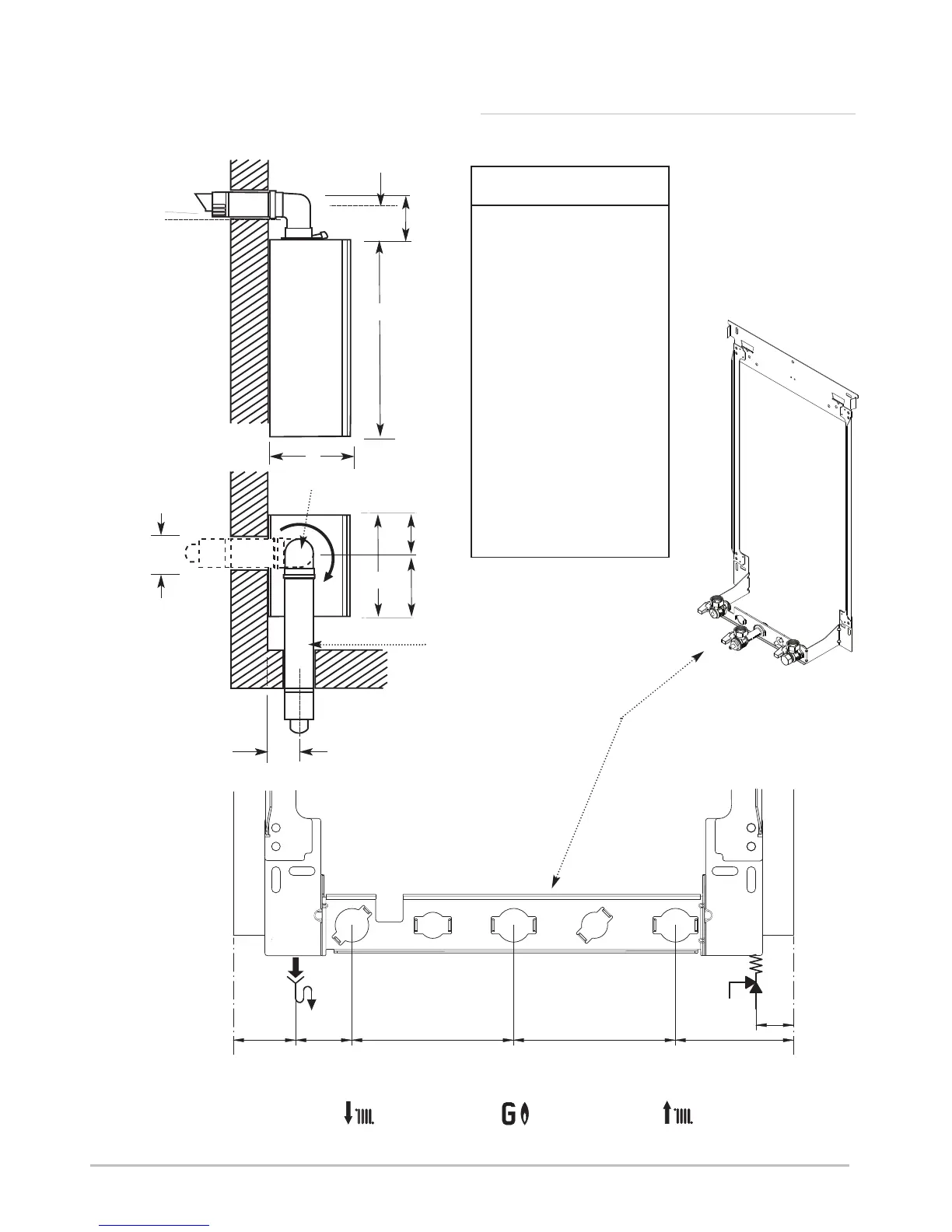

Dimensions
A 763mm
B 345mm
C 450mm
D 116mm Ø Min.
E 160mm
(207mm for 80/125mm
flue systems)
F 140mm
G 106mm
H 170mm
J 280mm
360° Orientation
Flue Ø 100mm
D
C
B
A
E
G
F
At least 1.5°
H
J
Pressure
Relief
Valve
(15mm)
Condensate
Drain
130 mm
130 mm45 mm50 mm
30
95 mm
Heating
Return
(22mm)
Heating
Flow
(22mm)
Gas
Inlet
(22mm)
Tap Rail
There must be no part of the air duct
(white tube) visible outside the property.
