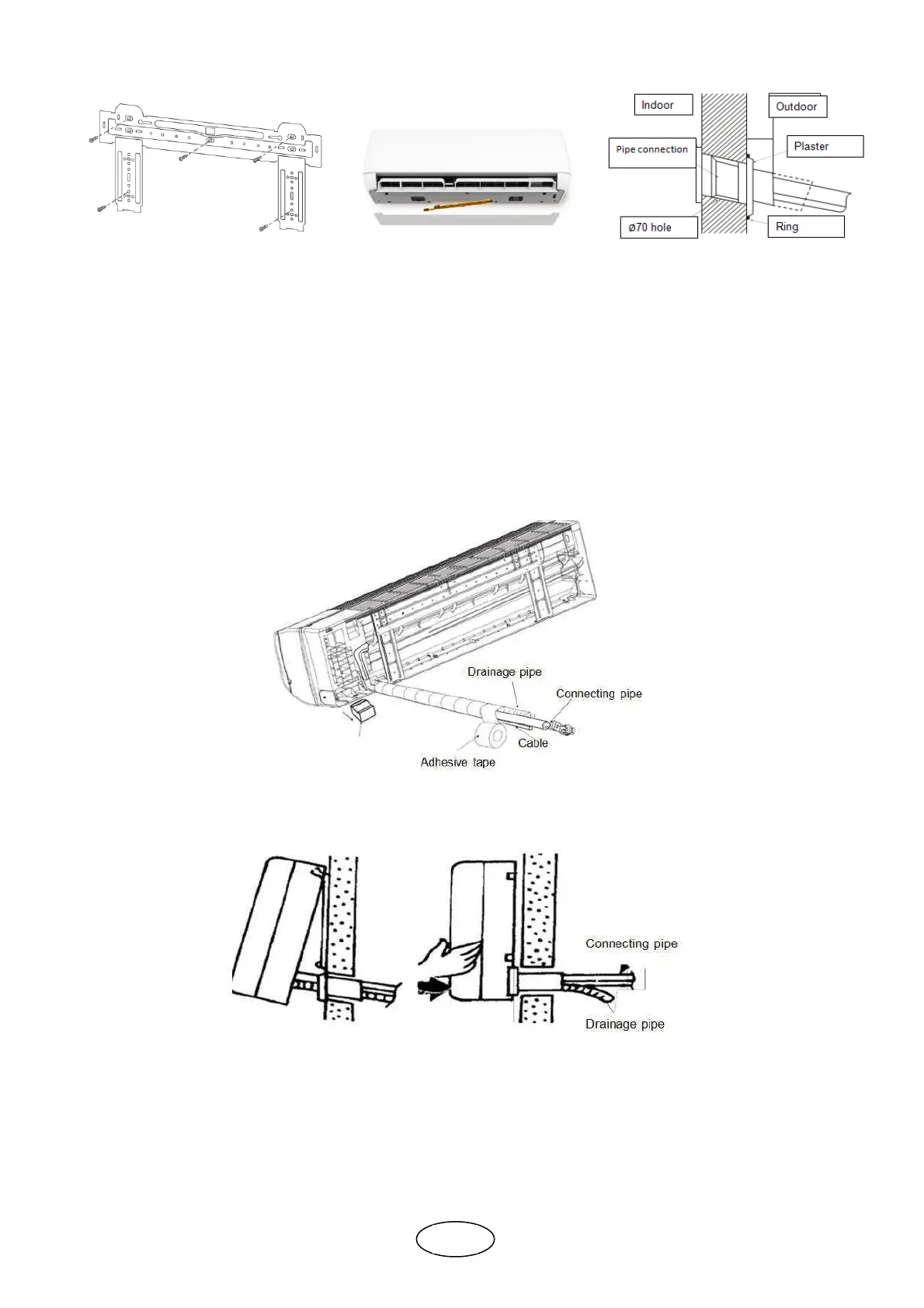

Installing the connections between the two units
-
Drill a hole 70 mm in diameter on the left side (rear view) or right side (front view) with
a slight downward slope.
-
Use adhesive tape to hold the indoor unit fitting in place. Then wrap the connection
with electrical tape to prevent condensation.
-
Secure the refrigeration pipes, the electrical cables and the drainage pipe together
using plastic cable ties.
-
Set out the pipes and cables as shown in the figure:
-
Hang the indoor unit on the support using the upper tabs. Make sure that the indoor
unit is in the middle.
-
Position and push the indoor unit onto the mounting plate until the hooks attach firmly
into the guides and you hear them "click'' into place.
