15.0 Hydraulics
Neta-tec Combi GA
The Neta-tec GA hydraulics are of a composite construction
• The D.H.W. Flow Switch is a Turbine Type Design
• There is a bypass built into the two bodies connected by a clip on the front.
• Behind the Pressure Gauge there is an inline filter cage.
• The pump is 2 speed operational. In D.H.W. it operates only at Max speed. In C.H. it switches between the two speeds
depending upon temperature loadings to maintain the boiler in condensing mode.

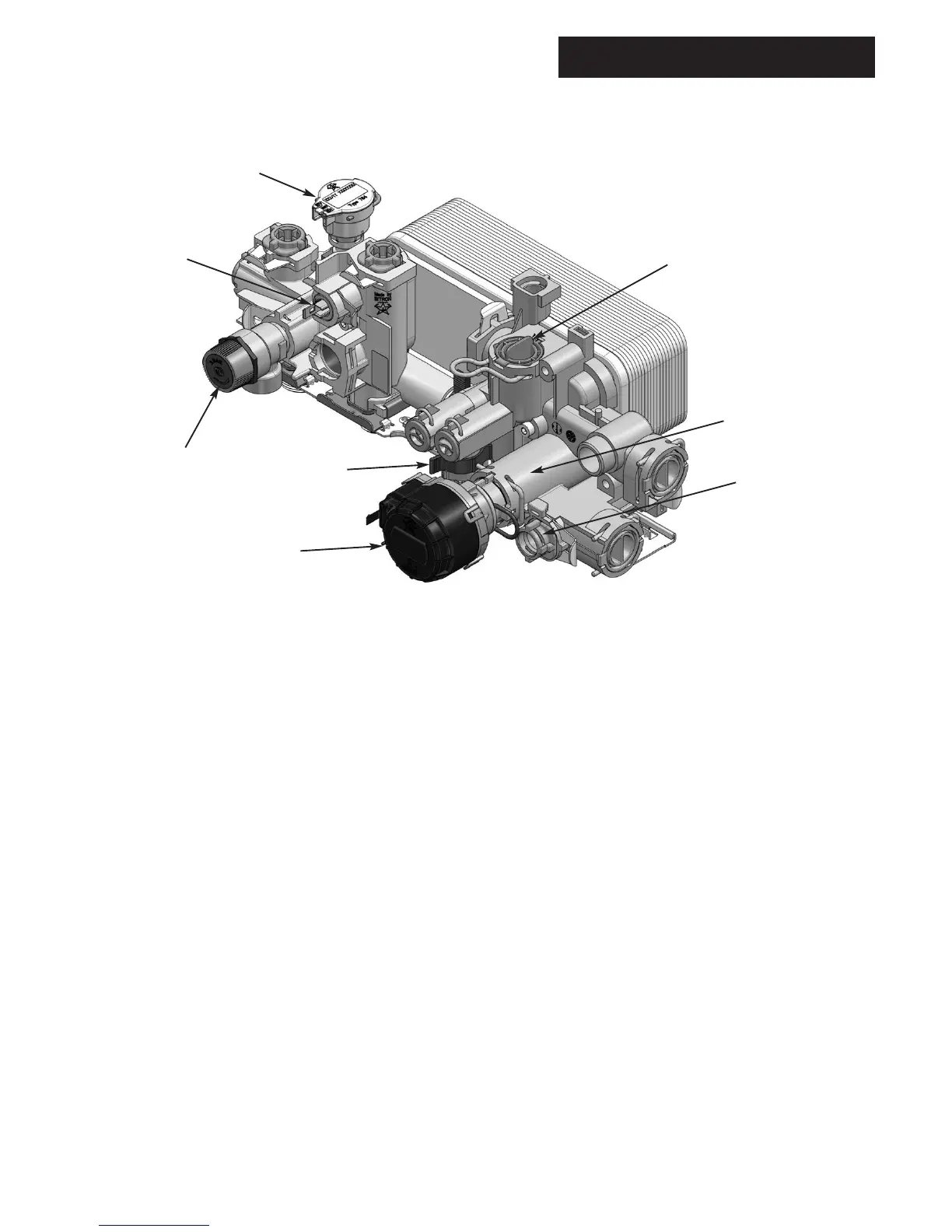

Pressure Sensor
D.H.W. Sensor
P. R . V.
D.H.W. Hall
Effect Sensor
Diverter Valve
Head
D.H.W. Cartridge
(Turbine Type)
Diverter Valve
Cartridge
Pressure Gauge
Connection
(incorporates
return filter)
