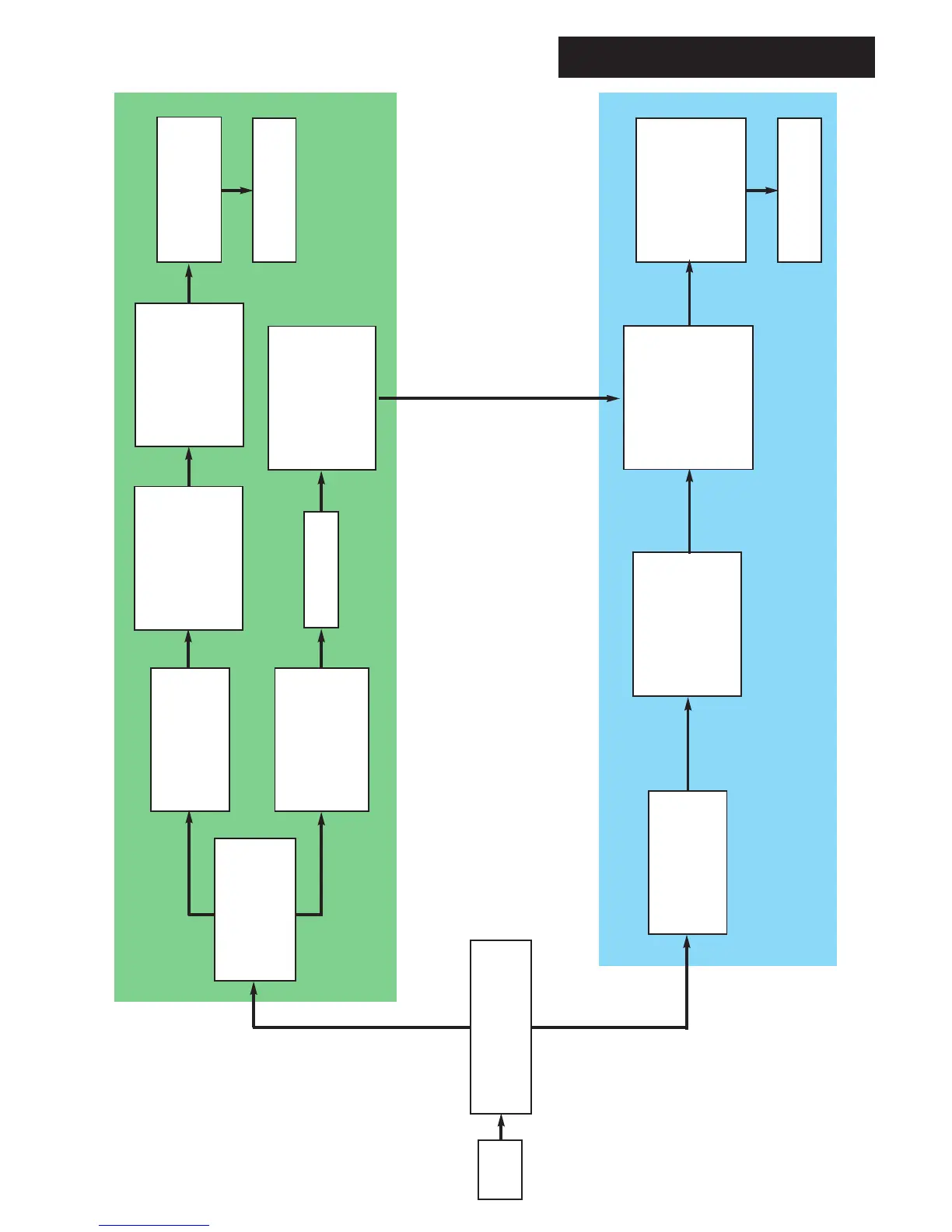

Baxi Neta-tec Combi GA Range - E133 Flow Chart

31
© Baxi Heating UK Ltd 2012
E55 displayed
Is ‘000’ displayed on
first power up ?
Check electrode
gap, gas supply,
etc.
Complete
E133
Any components
changed prior to
commissioning ?
No
Ye s
No
Ye s
Change R.D.S. to
bypass
Commissioning
Function
Calibrate
(‘CH -ve’ &
‘Reset’, then ‘ip’)
Page 11
Mini-Calibrate
(‘CH -ve’ &
‘Reset’, then ‘ip’)
Page 8
When ‘000’
displayed start
Commissioning
(‘ip’ & ‘CH +ve’)
312 completed
then Gas Check ?
Check electrode
gap, gas supply,
etc.
Calibrate
(‘CH -ve’ &
‘Reset’, then ‘ip’)
Page 11
Check
combustion
levels whilst in
Calibration
Function (wait
until finished)
Change the Set
Flame to achieve
9.0% CO2 at all
fan speeds
Complete
19.0 E133 Flow Chart
