37
ITMANUALE DI ISTRUZIONI BR16

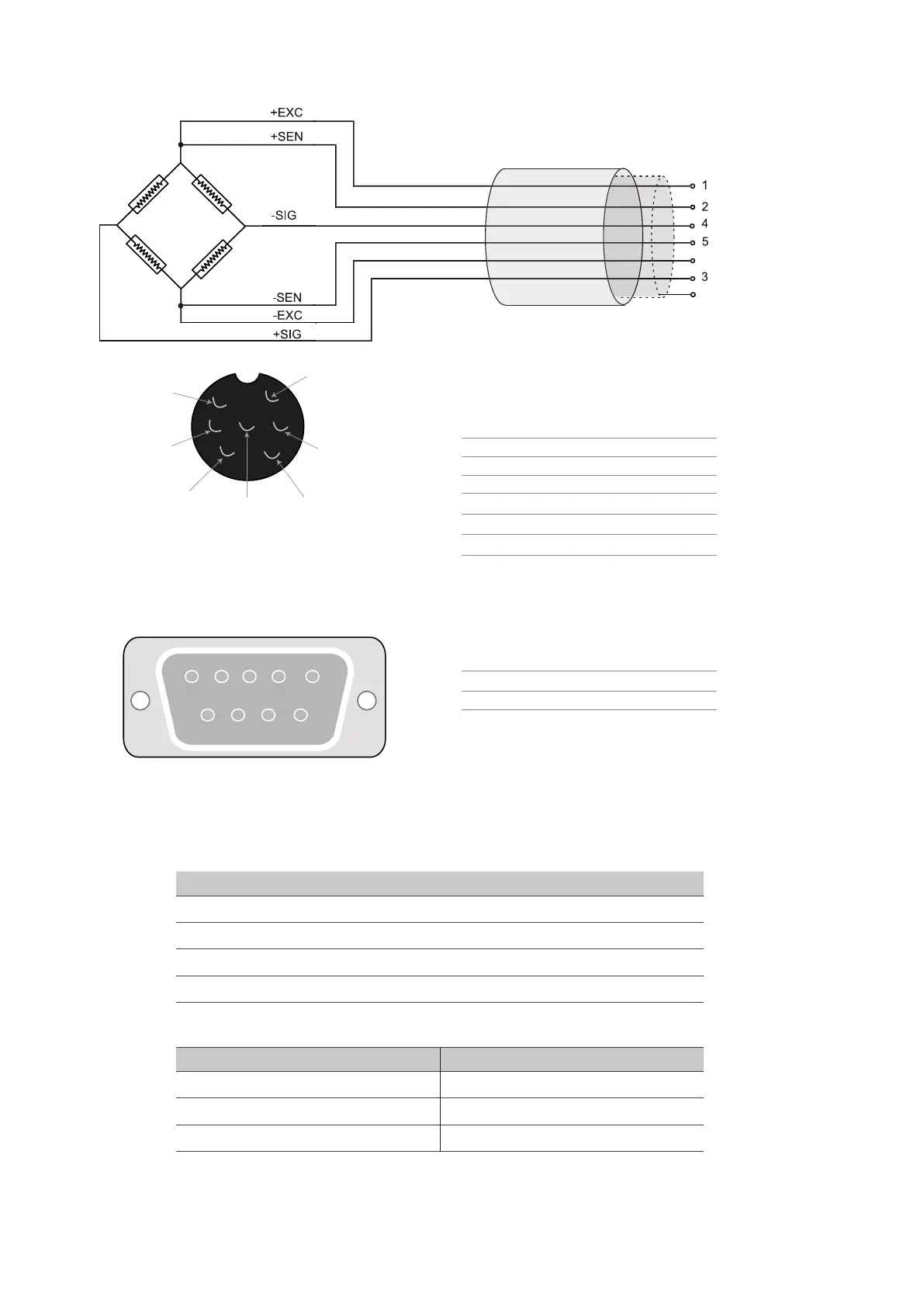

SCHEMA DELLA CELLA A 7 PIN
6
2
5
4
7
1
3
6
7
CÉLULA
DE
CARGA
PIN 1 EXC +
PIN 2 SEN+
PIN 3 SIG +
PIN 4 SIG -
PIN 5 SEN -
PIN 6 EXC -
PIN 7 GND
COLLEGAMENTO RS232
5
4 3 2 1
9
8 7
6
2 Tx
3 Rx
5 GND
PROTOCOLLO
UARTsignalofEIA-RS232C
SEGNALEUARTDIEIA-RS232C
Uscita serie 1200 / 2400 / 4800 / 9600 / 19200 / 34800 bps
Bit di dati 8 bits
BITDIPARITÀ No
Bit di stop 1 bit
INFORMAZIONIINTESTAZIONI
Intestazione1(2BYTE) Intestazione2(2BYTE)
OL–Sovraccarico
ST–Stabile NT–Pesonetto
US–INSTABILE GS–Pesolordo
