7
ESMANUAL DE USUARIO BR16

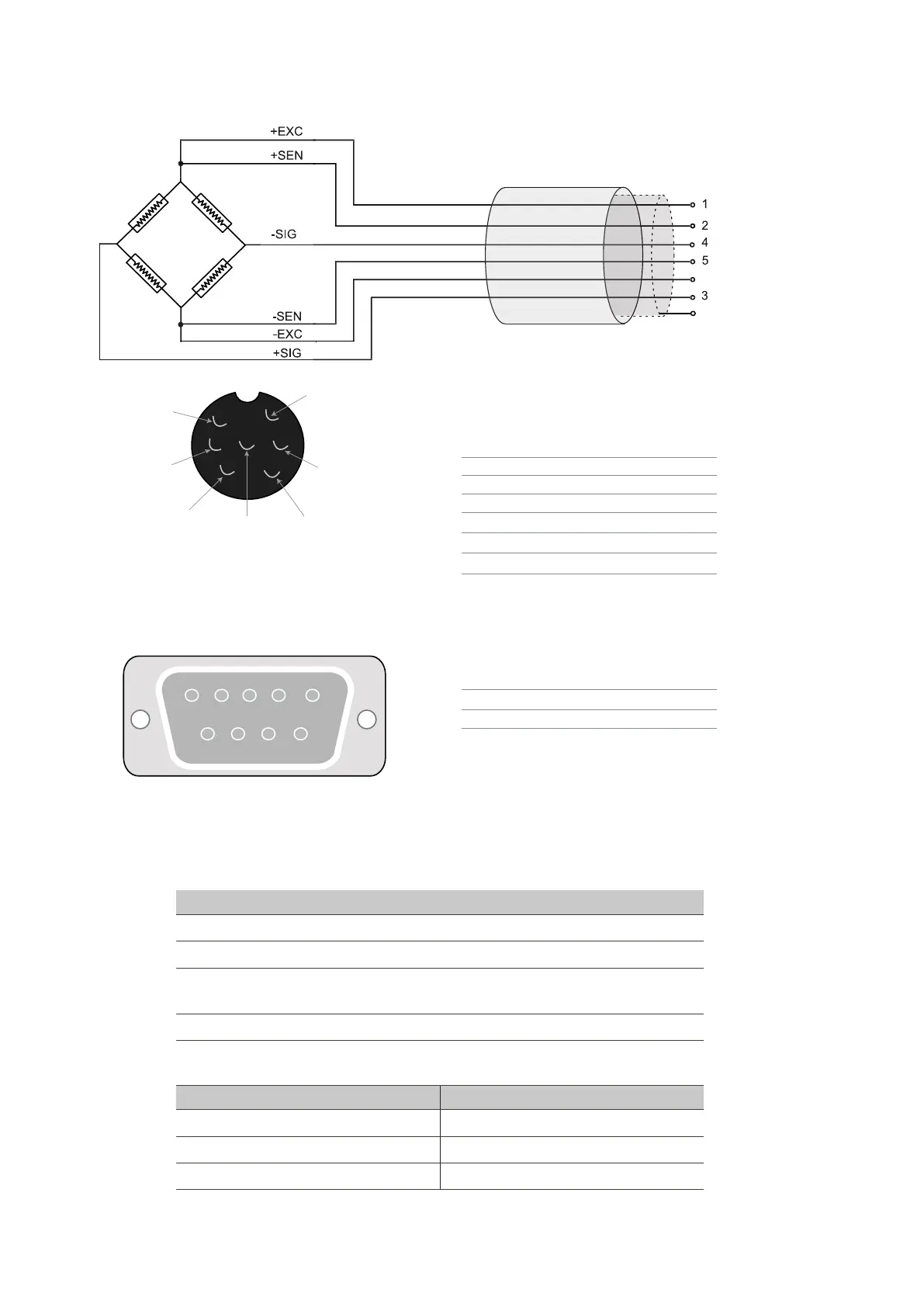

ESQUEMA CÉLULA DE 7 PINS
6
2
5
4
7
1
3
6
7
CÉLULA
DE
CARGA
PIN 1 EXC +
PIN 2 SEN+
PIN 3 SIG +
PIN 4 SIG -
PIN 5 SEN -
PIN 6 EXC -
PIN 7 GND
CONNEXIÓN RS232
5
4 3 2 1
9
8 7
6
2 Tx
3 Rx
5 GND
PROTOCOLO
UARTsignalofEIA-RS232C
SEÑALUARTDEEIA-RS232C
Salidaserie 1200 / 2400 / 4800 / 9600 / 19200 / 34800 bps
Bits de datos 8 bits
Bits de paridad No
Bits de stop 1 bit
INFORMACIÓNCABECERAS
Cabecera1(2BYTES) Cabecera2(2BYTES)
OL–Sobrecarga
ST–Estable NT–Pesoneto
US–INESTABLE GS–Pesobruto
