34
1.8 Connectors

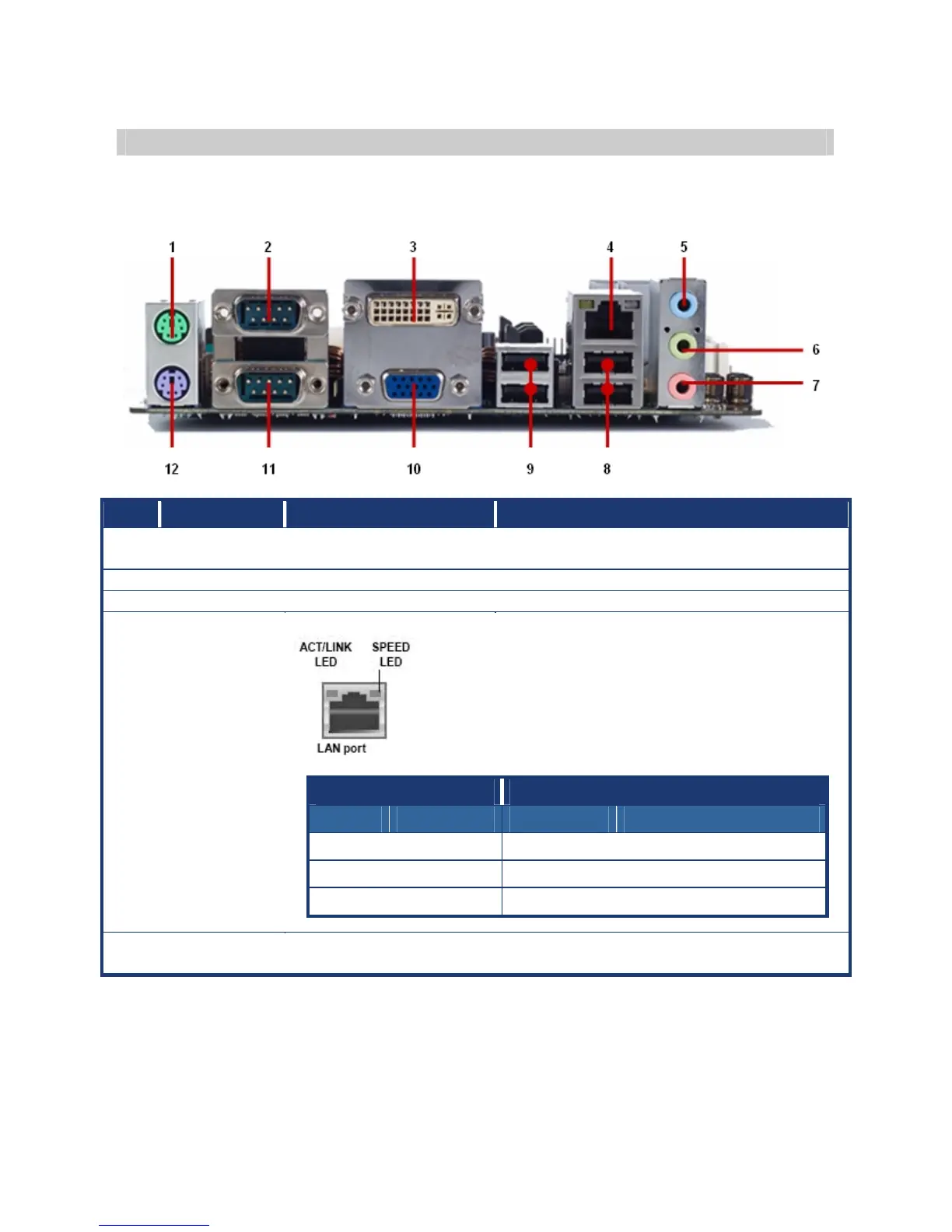

1.8.1 Rear Panel Connectors
No Label Function Description
1 KBMS PS/2 mouse connector The standard PS/2 mouse DIN connector is
for a PS/2 mouse.
2 COM12 Serial port connector D-Sub 9-pin, male
3 VGA_DVI
LAN (RJ-45) connector
This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications. The optional
10/100 Mbps LAN controller allows 10/100
Mbps connection to a Local Area Network
(LAN) through a network hub.
4 LAN_USB12
ACT / LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Blinking Data activity GREEN 1Gbps connection
5 AUDIO Line-In port (Light Blue). This port connects a tape, CD, DVD player,
or other audio sources.
