User’s Manual
37

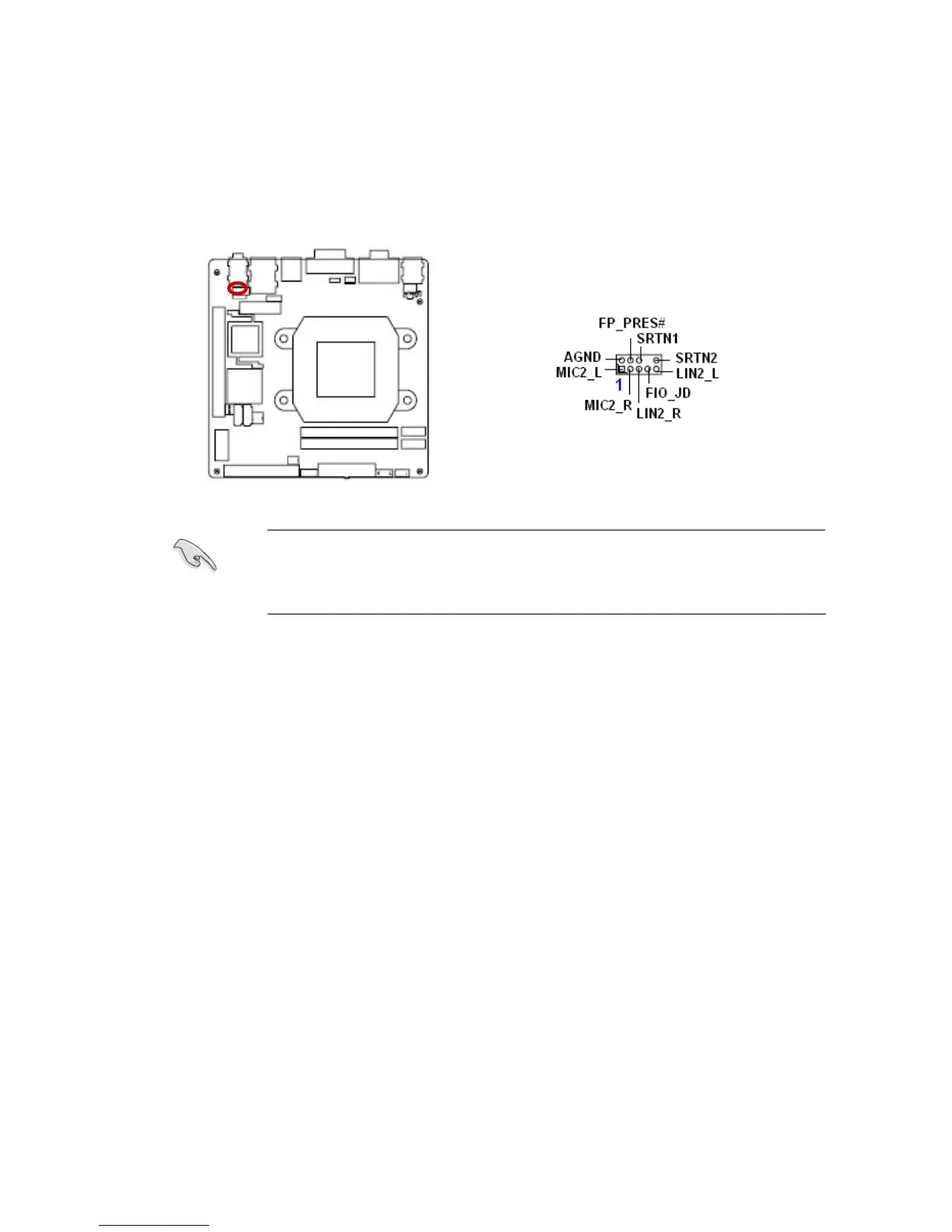

1.8.2 Front Panel Audio Connector (AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports either
HD Audio or legacy AC ‘97 (optional) audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
For motherboards with the optional HD Audio feature, we recommend
that you connect a high-definition front panel audio module to this
connector to avail of the motherboard’s high‑definition audio
capability.
