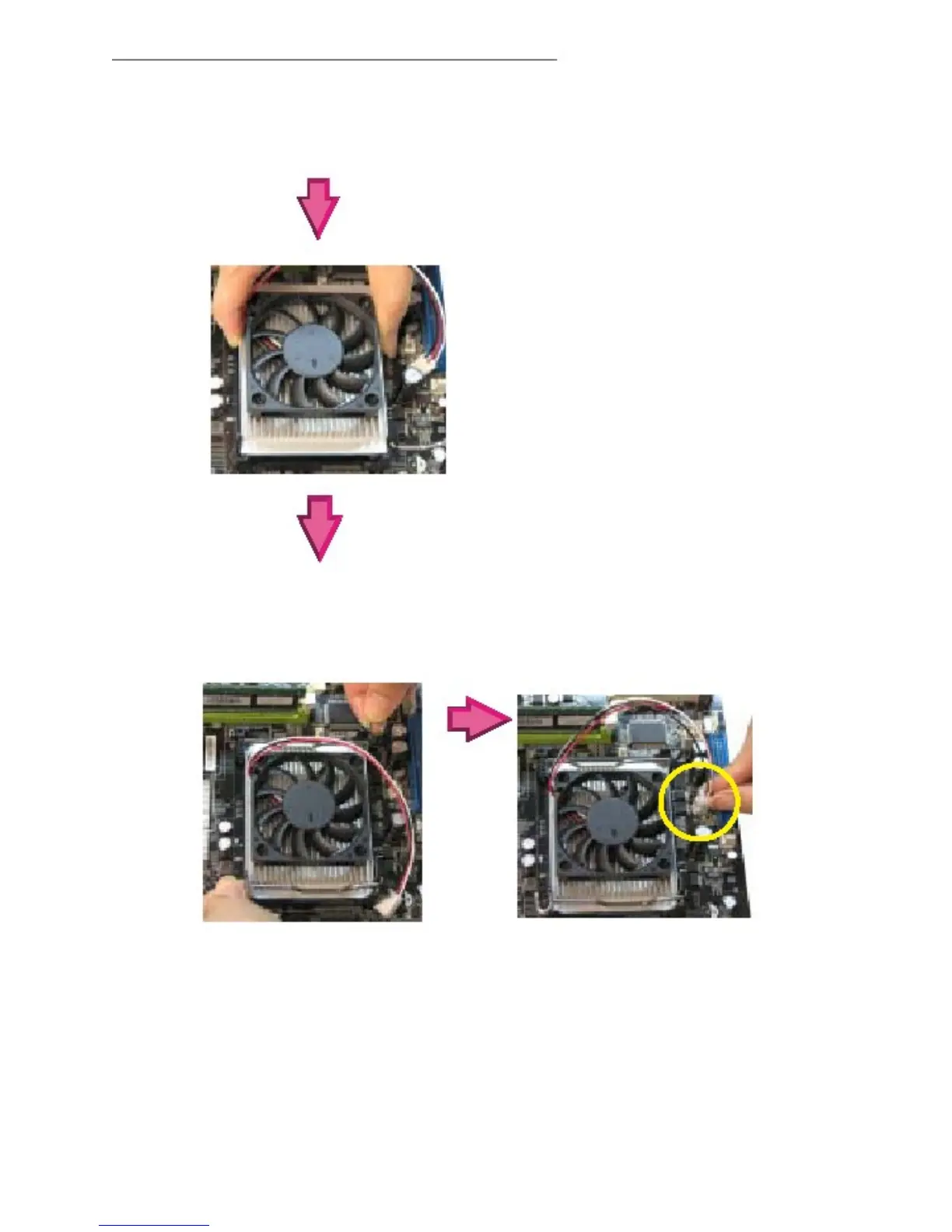

5 . Mount the cooler set (fan
& heatsink bundled) on
top of the CPU and fit it
into the retention mecha-
nism.
6 . Secure the metal clips
back to the retention
mechanism.
7 . Connect the fan power
cable from the mounted
fan to the 3-pin fan
power connector on the
mainboard.
