Front USB Connector: F_USB2
The mainboard provides one USB 2.0 pinheader (op-
tional USB 2.0 bracket available) that is compliant
with Intel
® I/O Connectivity Design Guide. USB 2.0
technology increases data transfer rate up to a
maximum throughput of 480Mbps, which is 40 times
faster than USB 1.1, and is ideal for connecting
high-speed USB interface peripherals such as USB
HDD, digital cameras, MP3 players, printers,
modems and the like.

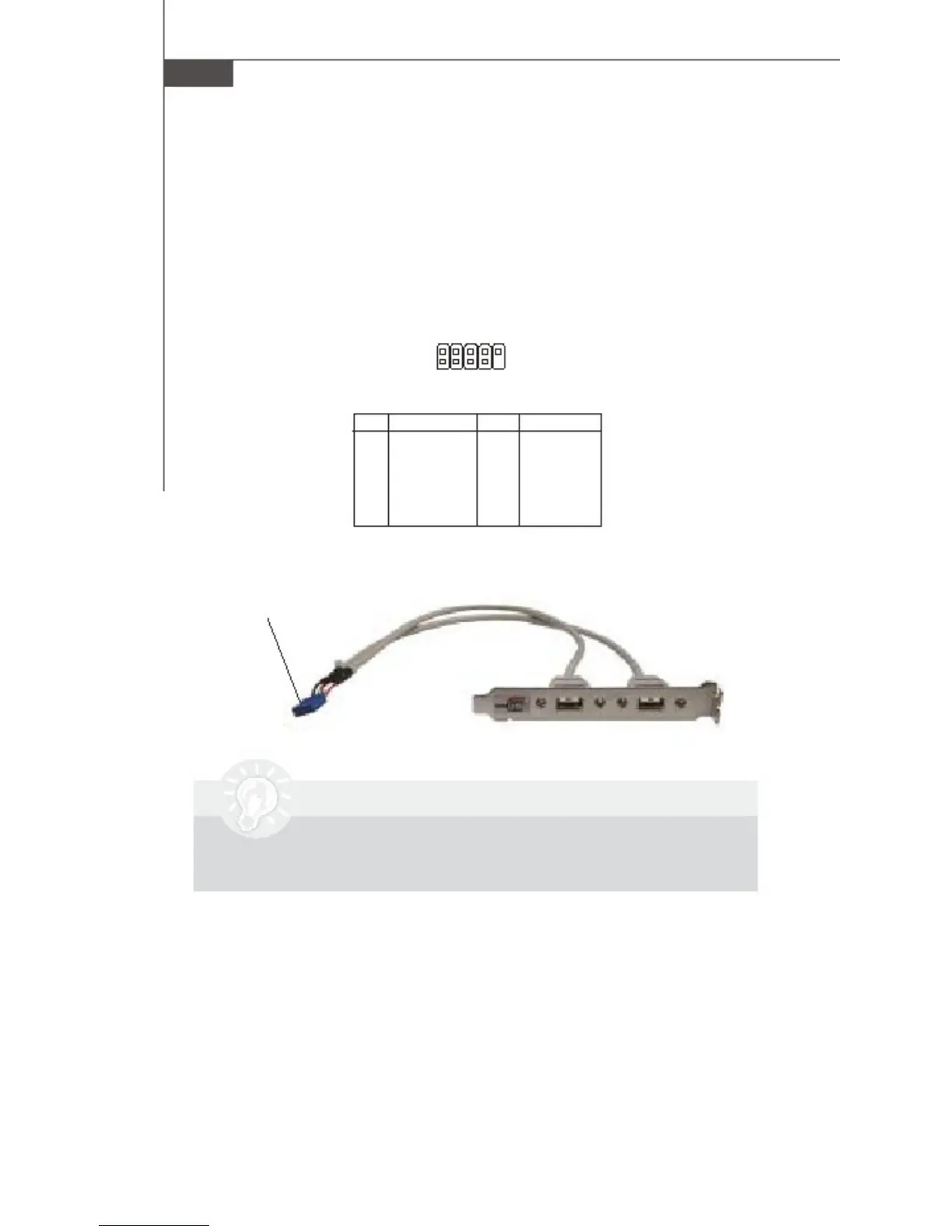

F_USB2
2
1
10
9
Pin Definition
PIN
1
3
5
7
9
SIGNAL
VCC
USB0-
USB0+
GND
Key (no pin)
PIN
2
4
6
8
10
SIGNAL
VCC
USB1-
USB1+
GND
USBOC
Connected to USB connector
USB 2.0 Bracket
(Optional)
Important
Note that the pins of VCC and GND must be con-
nected correctly to avoid possible damage.
