BDCOM GP3600-08 GPON Hardware Installation Manual
- 3 -
signals
13
P1~P16
Gigabit OLT PON ports
Realizes the access of GPON ONU
14
/
PON port console
PON port debug serial port

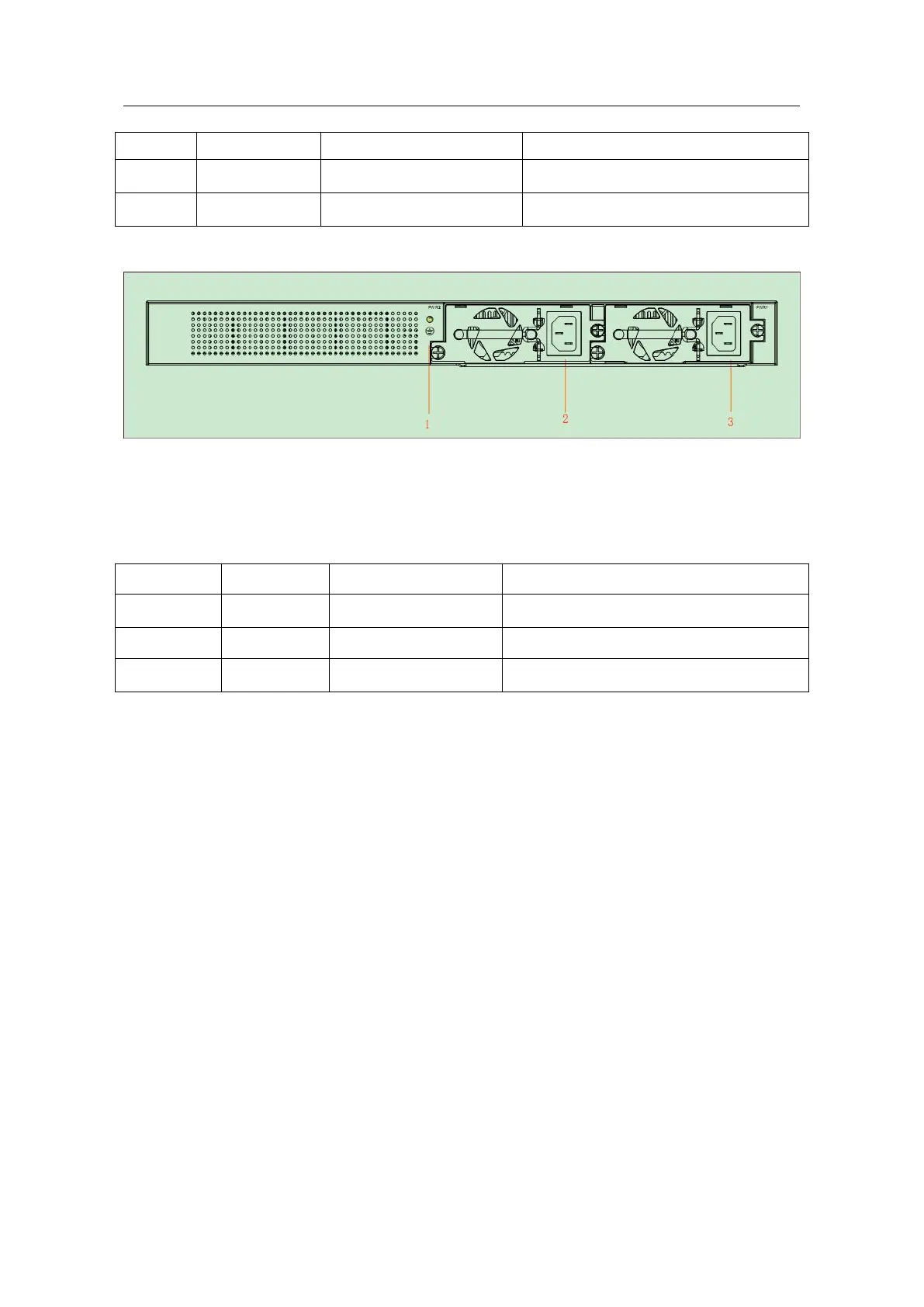

Figure 1-2 Back faceplate of GP3600-08 GPON-
Parts at the Back Template of GP3600-08 GPON Access Device
No.
Abbrev.
Name
Remarks
1
/
Grounding column
The grounding must be fine.
2
/
P2 power socket
AC100~240V, provide for Power2
3
/
P1 power socket
AC100~240V, provide for Power1
