BDCOM S3756F Hardware Installation Manual
- 1 -
Chapter 1 BDCOM S3756F Switch
The section describes the characteristics and parameters of BDCOM S3756F and gives an
overview of BDCOM S3756F.
1.1 Appearance Description for Standard Configuration
The built-in ports of BDCOM S3756F are: 4 gigabit combo ports, 44 gigabit Ethernet optical
ports, 8 10G Ethernet SFP+ ports, 1 Console port. See table 1-1.
Table 1-1 Attributes of the built-in port
Port
Attribute
Gigabit-Ethernet TX port
RJ45 port, LINK/ACT indicators
Gigabit-Ethernet SFP port
SFP interface: with LINK/ACT indicators
10G Ethernet SFP+ ports
SFP+ interface: with LINK/ACT indicators
Console port
A rate of 9600bps, mini USB.

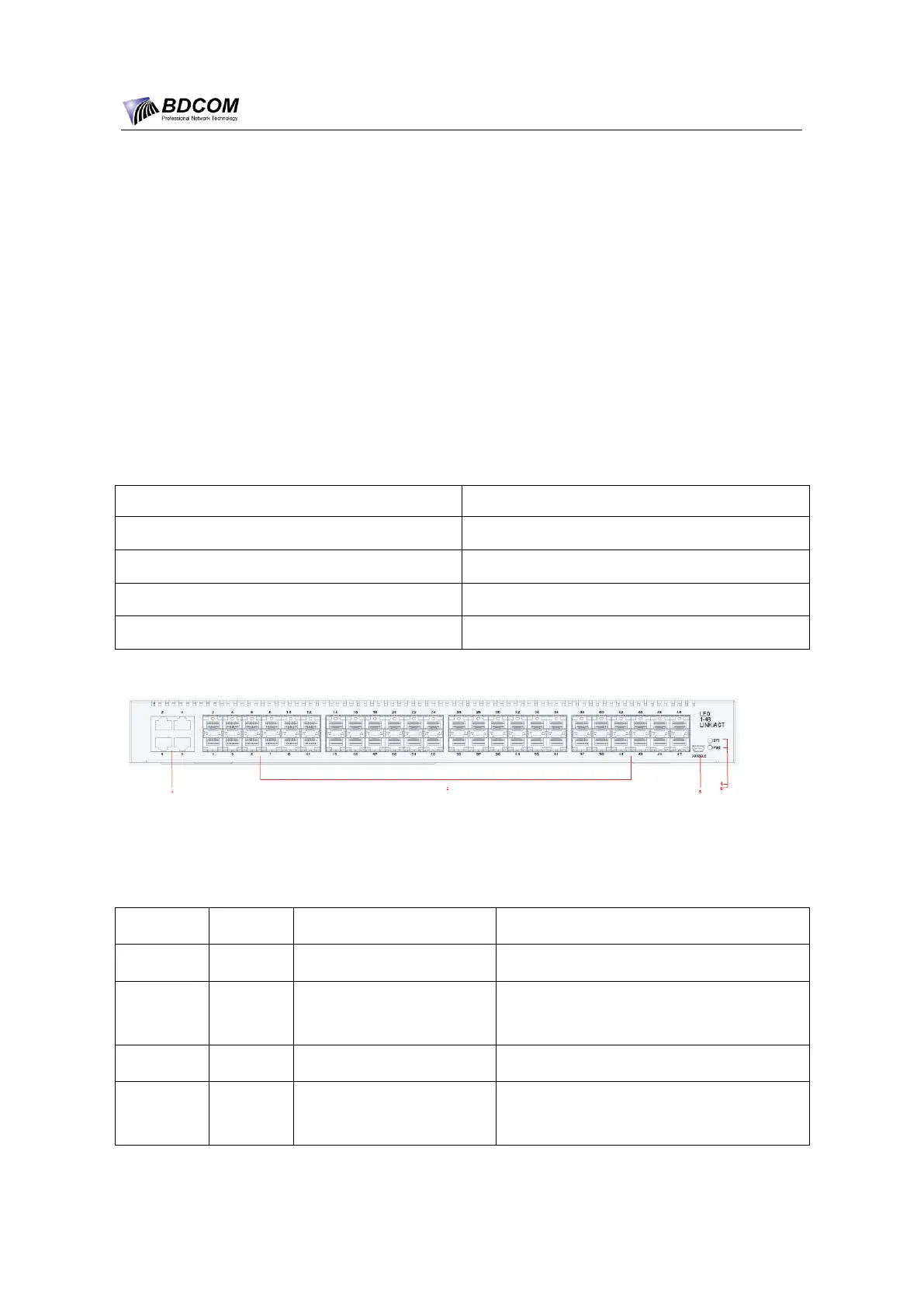

Figure 1-1 The front template of the BDCOM S3756F switch
Table 1-2 Parts at the front template of BDCOM S3756F switch
No.
Abbrev.
Name
Description
1
4 gigabit Ethernet TX ports
COMBO port, UTP (RJ45) interface
2
48 gigabit Ethernet optical
ports
SFP interface, 1-4 are combo ports
3
Console
Console port
Manages the switch locally.
4
SYS
System indicator
If the indicator is always on, the system is
normally started up.

Bdcom S3756F Specifications

General

Brand	Bdcom
Model	S3756F
Category	Switch
Language	English
