BDCOM S3756F Hardware Installation Manual
- 13 -
No.
Name
Remarks
1
CD
No connect
2
RXD
Input
3
DSR
No connect
4
TXD
Output
5
RTS
No connect
6
CTS
No connect
7
DTR
No connect
8
SG
GND
Note:
The console port of the BDCOM S3756F switch does not support traffic control. Therefore,
you must set the option data traffic control to none when you configure the switch with the super
terminal. Otherwise, the single-pass problem will arise on the super terminal.
3.3.2 Connecting 10G Ethernet SFP+ Ports
BDCOM S3756F switch has 8 10G SFP+ ports. Each port has its corresponding indicator:
TE1~TE8. You can connect the SFP+ optical module to the SFP+ port and then you can connect
other Ethernet terminal devices through the optical cable.

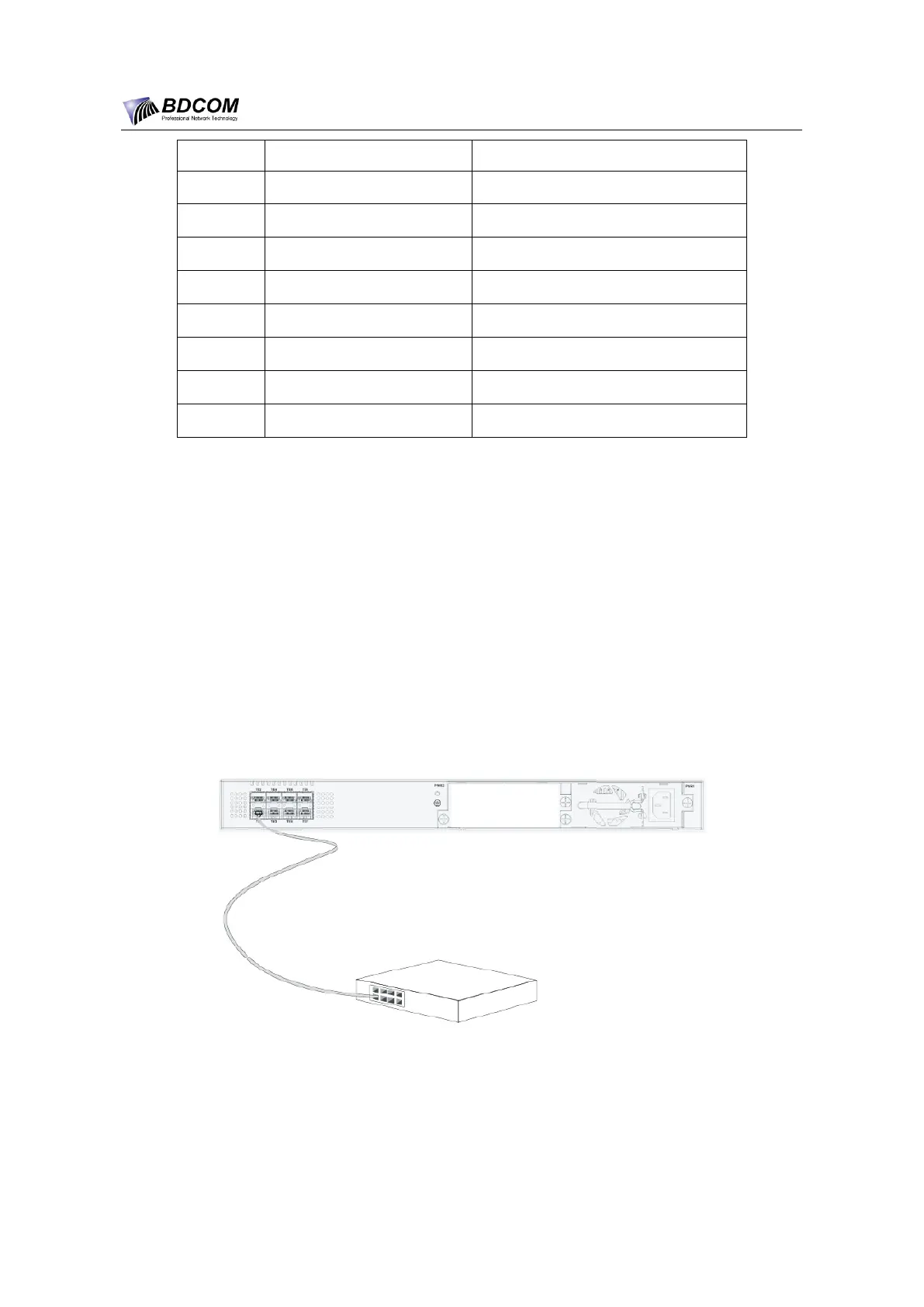

Figure 3-6 Connecting the 10G SFP+ port and other Ethernet terminals
