PART/DESCRIPTION QTY
H11-BUMPER 5
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H9-SCREW 4

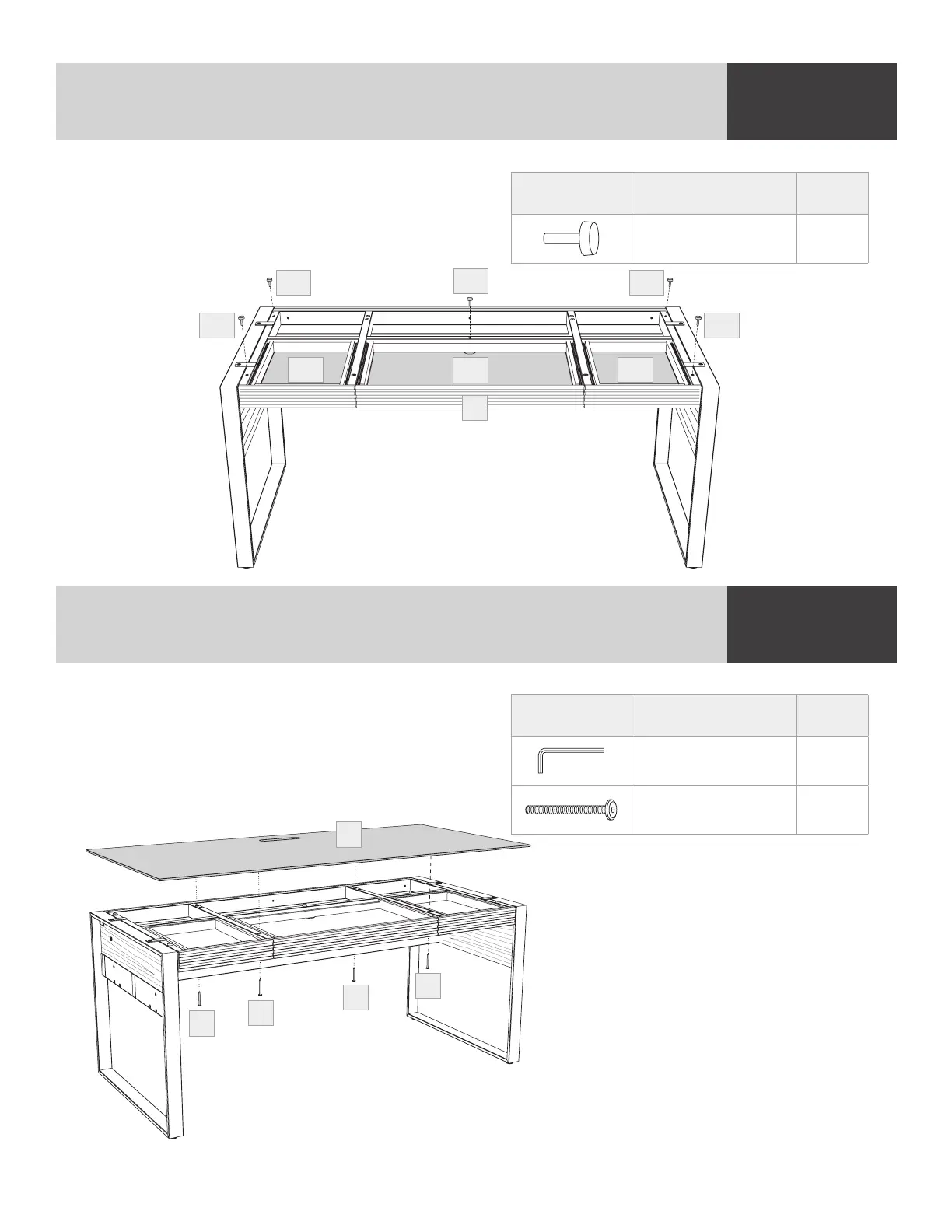

STEP 5. INSTALL BUMPERS & INSERT DRAWER LINERS
STEP 6. INSTALL GLASS PANEL
Insert (H11) Bumpers in the center hole and outer
holes of (A1) Drawer Assembly. With the fabric side
facing up, insert (C13) Center Drawer Liner into the
center drawer and (C14) Side Drawer Liners into
both side drawers.
With the help of another person gently lower (C1)
Glass Panel onto (A1) Drawer Assembly and fasten
into place using (H9) Screw and (T1) Hex Wrench.
DO NOT OVERTIGHTEN!
ASSEMBLY
ASSEMBLY
A1
H11
H11H11
H11 H11
C13
C14 C14
C1
H9
H9
H9
H9
