BDI CORRIDOR - Step 4: Install Drawer Assembly

8 | BDIUSA.COM CORRIDOR 6521

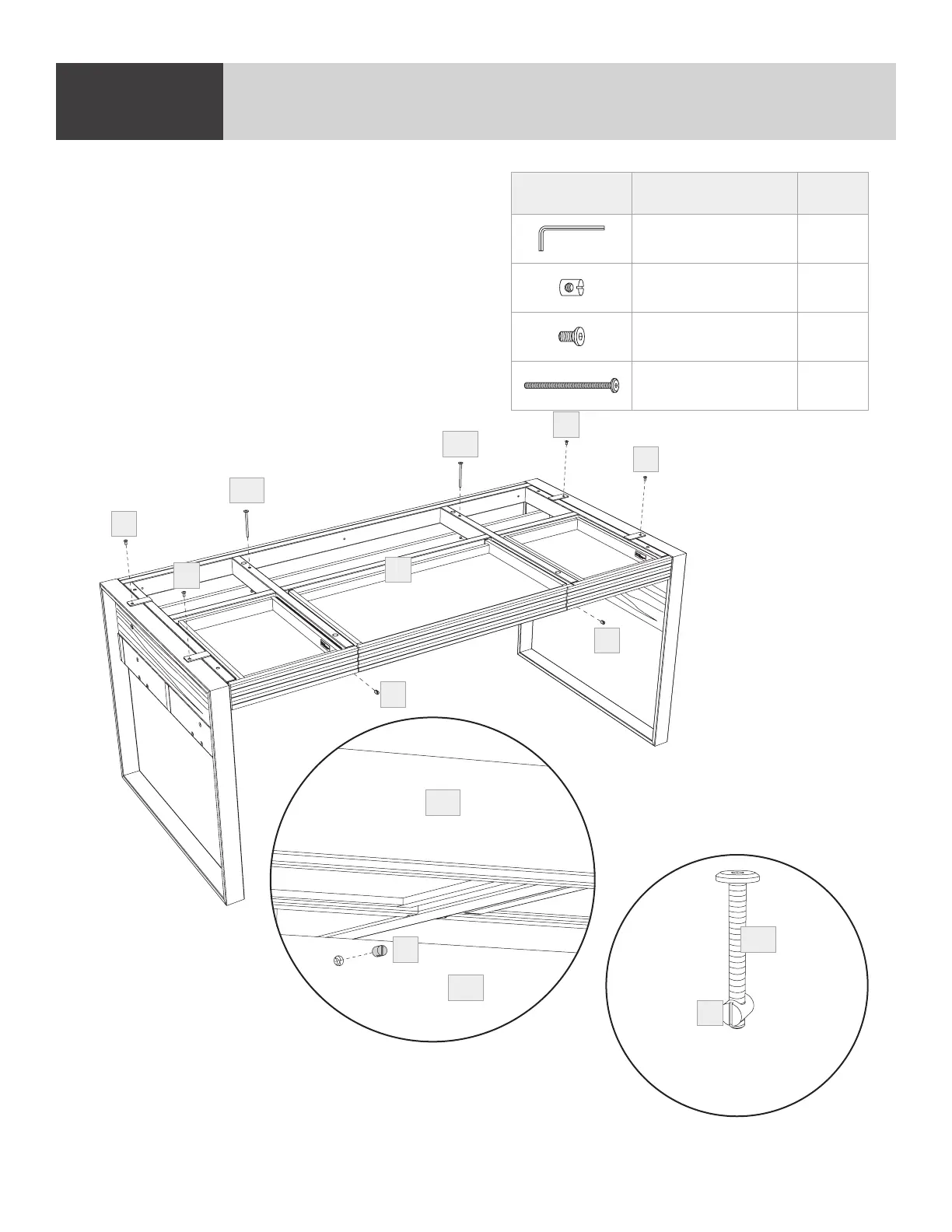

STEP 1. ATTACH THE BASESTEP 4. INSTALL DRAWER ASSEMBLYASSEMBLY
Secure (A1) Drawer Assembly to Leg Assembly
using (H8) Screw and (T1) Hex Wrench. Insert (H7)
Barrel Nut into holes of (C10) Modesty Panel with
the elongated slot sitting vertically, and secure with
(H10) Screw through top of (A1) Drawer Assembly.
Fully tighten all Screws that have been installed in
previous steps using (T1) Hex Wrench.
PART/DESCRIPTION QTY
T1-HEX WRENCH 1
H7-BARREL NUT 2
H8-SCREW 4
H10-SCREW 2
Elongated slot in
(H7) Barrel Nut aligns
with (H10) Screw
H7
H10
H10
H10
H8
H8
H8
H8
A1
H7
H7
H7
C10
A1
