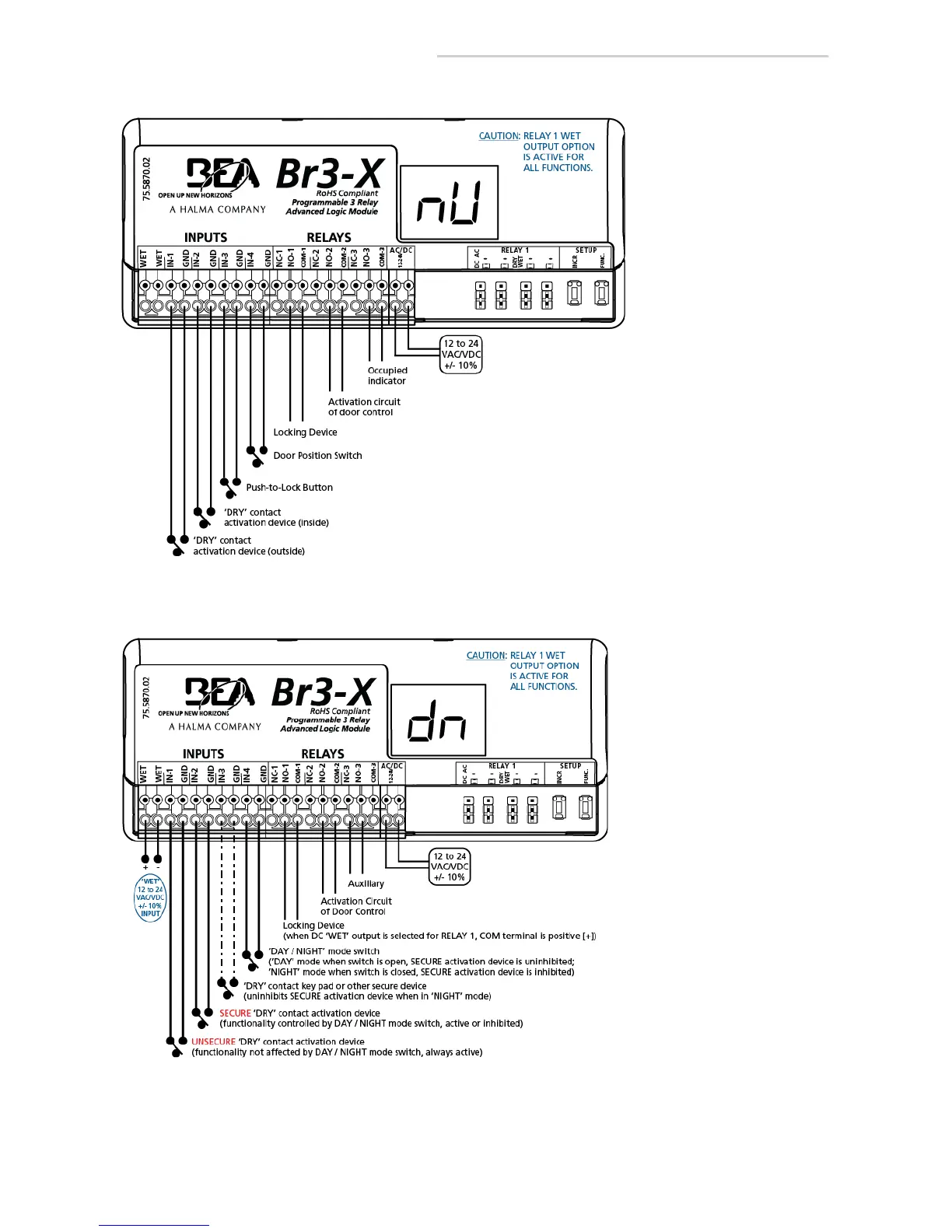

BEA Br3x - Programming Parameters Continued: Unlocked Restroom and Day;Night Mode; nU - Normally Unlocked Restroom; dn - 3-Relay Sequence with Day;Night Mode

Page 10 of 12 75.5871.04 BR3-X 20180702Page 10 of 12 75.5871.04 BR3-X 20180702
nU – normally unlocked restroom
AVAILABLE PARAMETERS:
h2 - relay 2 hold time
d1 - delay between relays 1 & 2
1. Trigger INPUT 1.
• RELAY 2 will close and
hold for time h2.
2. Trigger INPUT 3.
• RELAY 1 and 3 will close
and INPUT 1 will be
inhibited.
3. Trigger INPUT 2.
• RELAY 1 will open.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
• RELAY 3 will open.
FUNCTION nU NOTE: INPUT 3
will not function unless INPUT 4 is
closed. INPUT 4 should be closed
when door is closed.
dN – 3-relay sequence with 'day / night mode'
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
h3 - relay 3 hold time
d1 - delay between relays 1 & 2
d2 - delay between relays 1 & 3
1. Trigger INPUT 1, INPUT 2,
or 'WET'.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
• RELAY 3 will close after
time delay d2 and hold
for time h3.
2. Trigger INPUT 3.
• RELAY 1 will close and
hold for time h1.
• INPUT 2 will be
uninhibited for 5
seconds.
FUNCTION dn NOTE: INPUT 2 will
only function if INPUT 4 is open.
PROGRAMMING PARAMETERS (cont)
