BEA Br3x - Programming Parameters Continued: Interlock Functions; 50 - Interlock Timer; 55 - Interlock Ratchet;Latching

Page 8 of 12 75.5871.04 BR3-X 20180702Page 8 of 12 75.5871.04 BR3-X 20180702

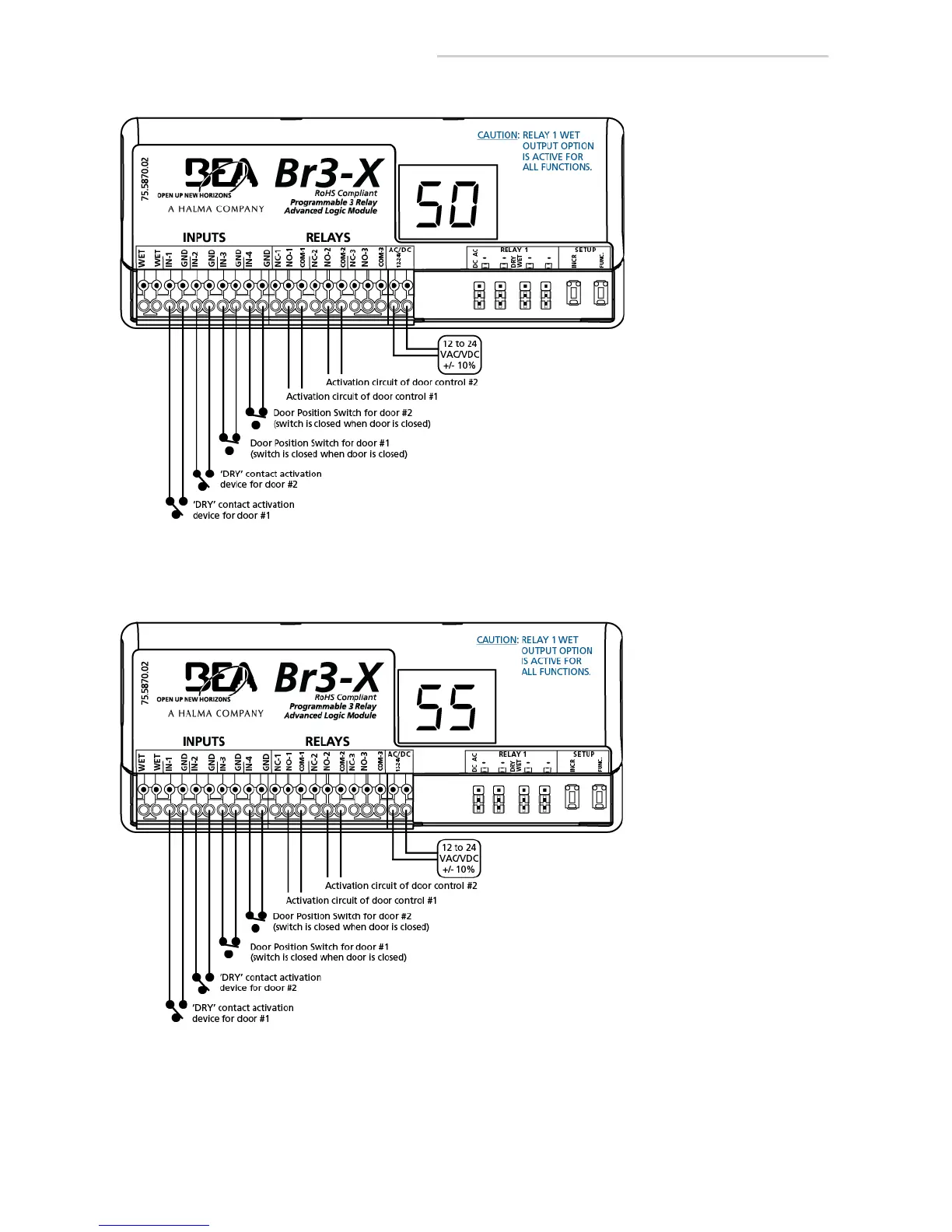

50 – interlock timer
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
1. Trigger INPUT 1.
• RELAY 1 will close and
hold for time h1.
2. Trigger INPUT 2.
• RELAY 2 will close and
hold for time h2.
FUNCTION 50 NOTE: If INPUT
1 is triggered, INPUT 2 and
RELAY 2 will be inhibited until
INPUT 3 (door position switch) is
closed. Conversely, if INPUT 2 is
triggered, INPUT 1 and RELAY 1
will be inhibited until INPUT 4 (door
position switch) is closed.
55 – interlock ratchet / latching
AVAILABLE PARAMETERS:
NONE
1. Trigger INPUT 1.
• RELAY 1 will close and
hold until indefinitely.
2. Trigger INPUT 1.
• RELAY 1 will open.
3. Trigger INPUT 2.
• RELAY 2 will close and
hold indefinitely.
4. Trigger INPUT 2.
• RELAY 2 open.
FUNCTION 55 NOTE: If INPUT 1
is triggered, INPUT 2 and RELAY
2 will be inhibited until INPUT 3
(door position switch) is closed.
Conversely, if INPUT 2 is triggered,
INPUT 1 and RELAY 1 will be
inhibited until INPUT 4 (door
position switch) is closed.
PROGRAMMING PARAMETERS (cont)
