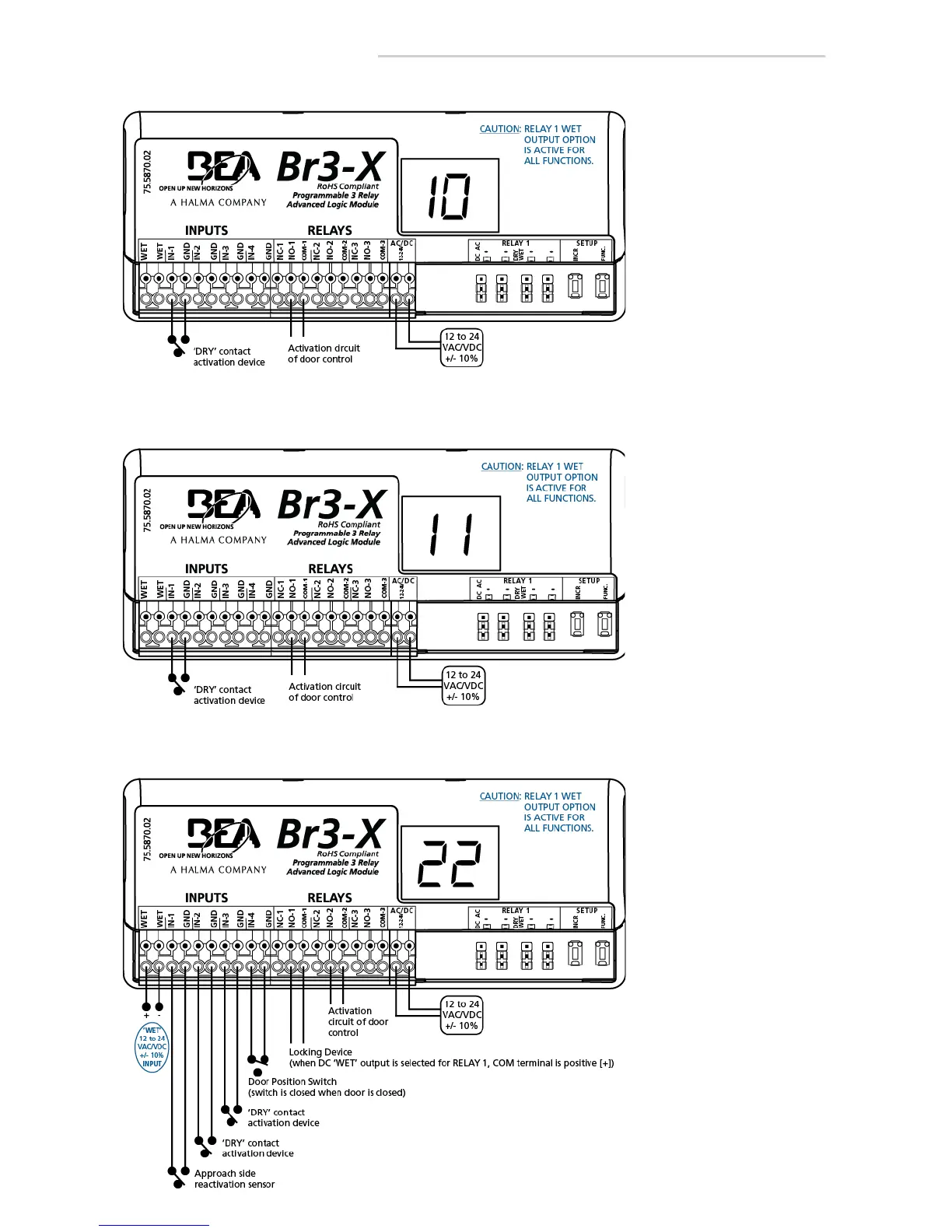

11 – ratchet / latching
AVAILABLE PARAMETERS:
NONE
1. Trigger INPUT 1.
• RELAY 1 will close and
hold indefinitely.
2. Trigger INPUT 1.
• RELAY 1 will open.
22 – 2-relay sequencer + inhibitor
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
d1 - delay between relays 1 & 2
h1 must be greater than d1
when using an electric lock
1. Trigger INPUT 2, 3, or 'WET'.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
FUNCTION 22 NOTE: Ensure
INPUT 1 does not initiate the
sequence and that INPUT 4 is
closed when the door is closed.
10 – timer
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
rL - reverse logic
1. Trigger INPUT 1.
• RELAY 1 will close and
hold for time h1.
FUNCTION 10 NOTE: Reverse logic
allows for a Normally Closed (NC)
INPUT 1.
PROGRAMMING PARAMETERS
* see page 3 for specific parameter details *
