75.5871.04 BR3-X 20180702 Page 7 of 1275.5871.04 BR3-X 20180702 Page 7 of 12

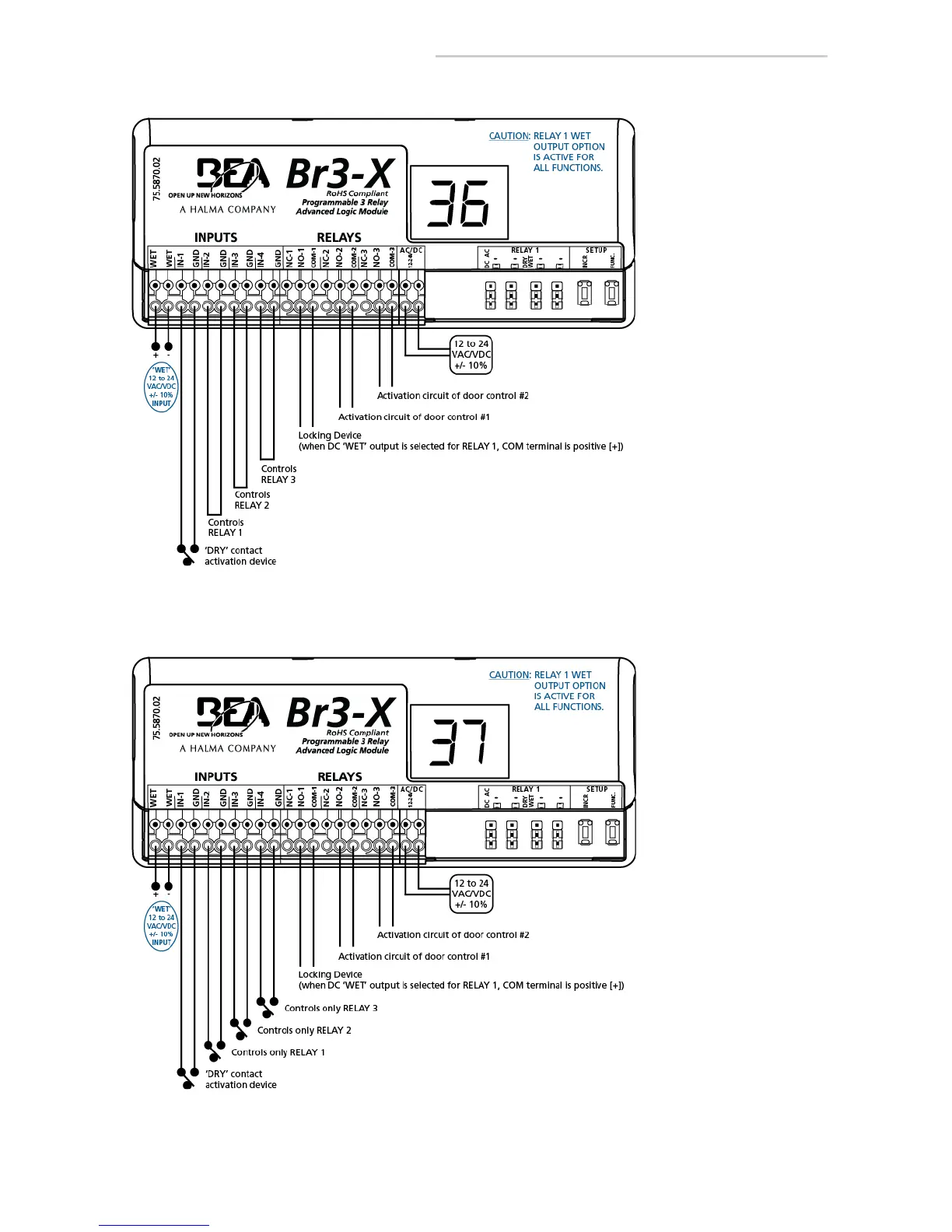

37 – 3-relay sequence with ‘independent relay’
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
h3 - relay 3 hold time
d1 - delay between relays 1 & 2
d2 - delay between relays 1 & 3
h1 must be greater than d1
when using an electric lock
1. Trigger INPUT 1 or 'WET'.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
• RELAY 3 will close after
time delay d2 and hold
for time h3.
2. Trigger INPUT 2.
• RELAY 1 will close and
hold for time h1.
3. Trigger INPUT 3.
• RELAY 2 will close and
hold for time h2.
4. Trigger INPUT 4.
• RELAY 3 will close and
hold for time h3.
36 – 3-relay sequencer + ‘1-shot’
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
h3 - relay 3 hold time
d1 - delay between relays 1 & 2
d2 - delay between relays 1 & 3
h1 must be greater than d1
when using an electric lock
1. Trigger INPUT 1 or 'WET'.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
• RELAY 3 will close after
time delay d2 and hold
for time h3.
FUNCTION 36 NOTE: If INPUT 1 or
'WET' is maintained, jumping INPUT
2, 3, and/or 4 will allow RELAY 1, 2,
and/or 3 (respectively) to close, run
the hold time and then open. If no
jumpers are set, RELAYS 1, 2, and/
or 3 will close, hold and not time
out (open, i.e. 1-shot) until INPUT 1
or 'WET' is released.
PROGRAMMING PARAMETERS (cont)
