BEA Br3x - Programming Parameters Continued: Restroom Functions; 65 - 2-Way 2-Relay Sequence; NL - Normally Locked Restroom

75.5871.04 BR3-X 20180702 Page 9 of 1275.5871.04 BR3-X 20180702 Page 9 of 12
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
d1 - delay between relays 1 & 2
d2 - delay between relays 2 & 1
1. Trigger INPUT 1.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
2. Trigger INPUT 2.
• RELAY 2 will close and
hold for time h2.
• RELAY 1 will close after
time delay d2 and hold
for time h1.
3. Trigger INPUT 3.
• RELAY 1 will close and
hold for time h1.
4. Trigger INPUT 4.
• RELAY 2 will close and
hold for time h2.

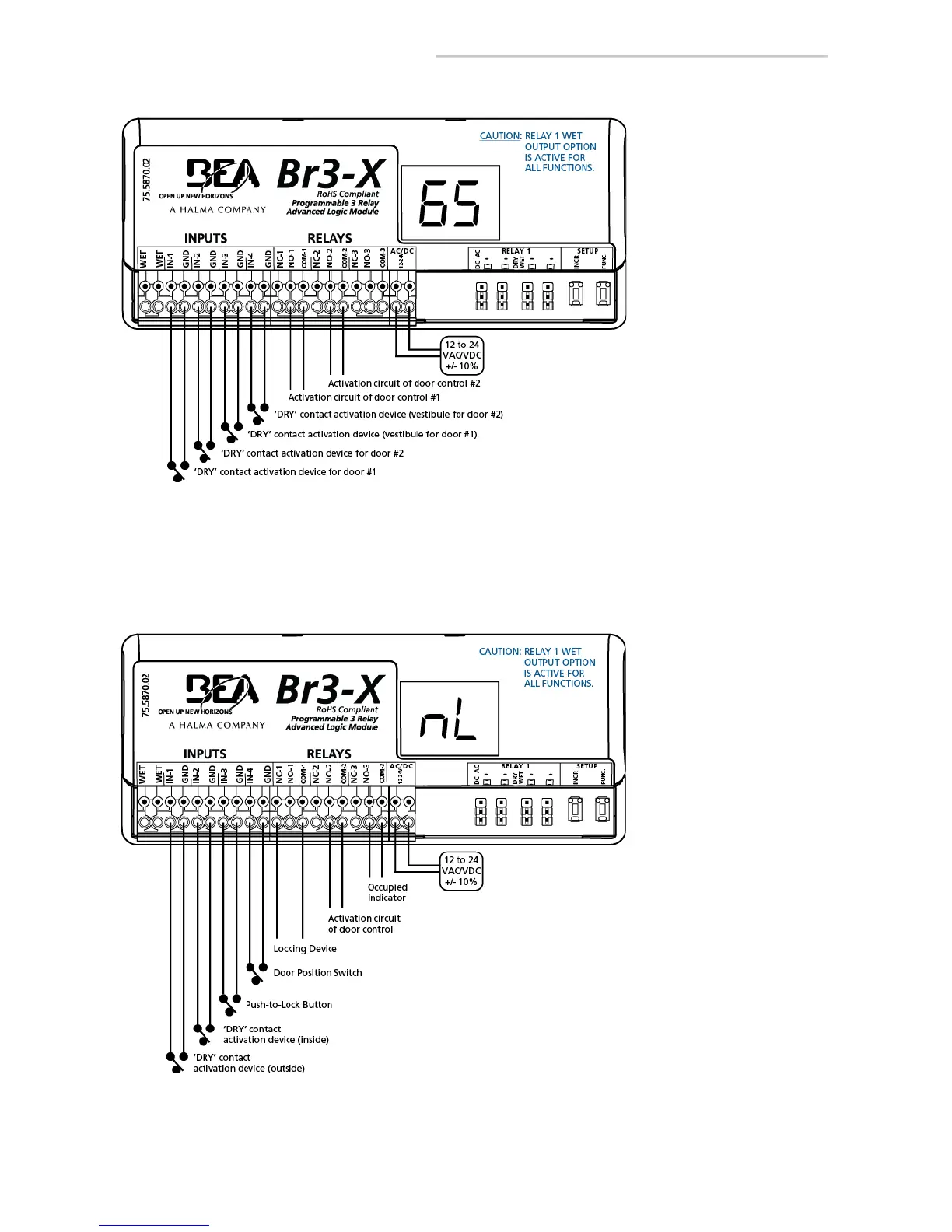

65 – 2-way 2-relay sequence
nL – normally locked restroom
AVAILABLE PARAMETERS:
h1 - relay 1 hold time
h2 - relay 2 hold time
d1 - delay between relays 1 & 2
h1 must be greater than d1
1. Trigger INPUT 1.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
2. Trigger INPUT 3.
• RELAY 3 will close
and INPUT 1 will be
inhibited.
3. Trigger INPUT 2.
• RELAY 1 will close and
hold for time h1.
• RELAY 2 will close after
time delay d1 and hold
for time h2.
• RELAY 3 will open.
FUNCTION nL NOTE: INPUT 3
will not function unless INPUT 4 is
closed. INPUT 4 should be closed
when door is closed.
PROGRAMMING PARAMETERS (cont)
