BeaconMedaes Gemini - Outlet Assembly Ordering

6
MAN01-049
Part No. 847706-00 Rev. C00
Outlet Assembly Ordering
Gemini/Diamond® III Assembly Numbers
Outlet Type Gas Service Rough-in Assembly Finish Assembly
Gemini
Concealed
Quick-Connect
Oxygen 234510-00 234610-00
Nitrous Oxide 234511-00 234611-00
Air 234512-00 234612-00
Vacuum 234513-00 234613-00
WAGD 234519-00 234619-00
Vacuum Slide 234500-00 234600-00
Blank 234500-00 234601-00
Gemini
Concealed
DISS
Oxygen 234510-00 234710-00
Nitrous Oxide 234511-00 234711-00
Air 234512-00 234712-00
Vacuum 234513-00 234713-00
Nitrogen 234514-00 234714-00
WAGD 234519-00 234719-00
Carbon Dioxide 234520-00 234720-00
Gemini
Console*
Quick-Connect
Oxygen 234410-00 234810-00
Nitrous Oxide 234411-00 234811-00
Air 234412-00 234812-00
Vacuum 234413-00 234813-00
WAGD 234419-00 234819-00
DISS Console* Oxygen 234410-00 4107 2097 49
Air 234412-00 4107 2097 51
Vacuum 234413-00 4107 2097 50
Diamond® III
Console*
Quick-Connect
Oxygen 234410-00 4107 2097 45
Nitrous Oxide 234411-00 4107 2097 46
Air 234412-00 4107 2097 48
Vacuum 234413-00 4107 2097 47
* Finishing plates are not supplied with these assemblies.

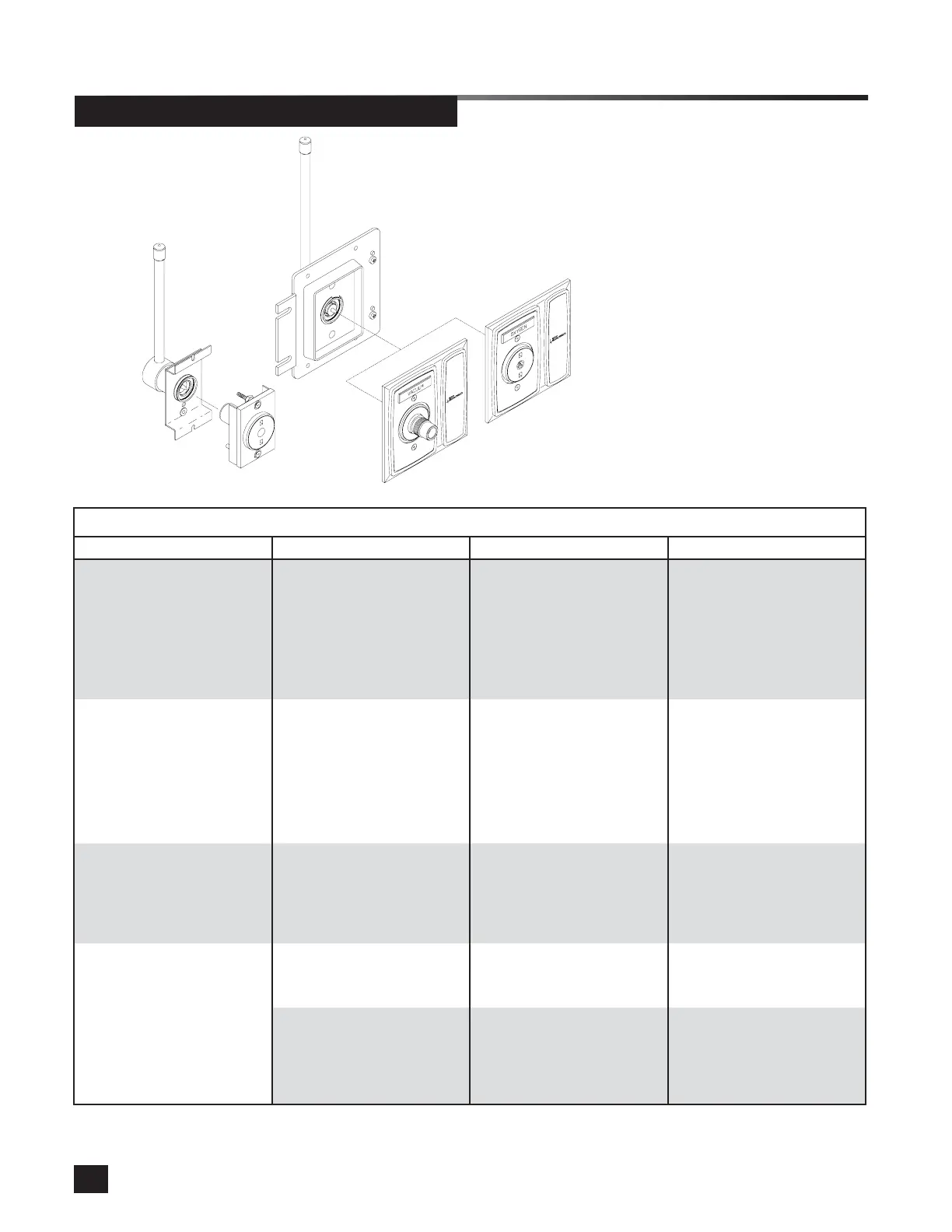

Complete assemblies for
concealed piping and
console applications.
