BEALE AK280 - Panel & Display Description; Front Panel

AK280
1
1. VOLUME knob
Adjust the master volume.
2. POWER SWITCH
Turn the Power on or o.
3. [SHIFT] button
Select the secondary functions of
other buttons.
10. [FADE] button
Turn the fade–in or fade–out
function on or o.
11. [CHORD] button
Enter Chord mode.
26. [DEMO] button
Enter Demo Mode.
27. LCD Display
Display all parameters and values
related to the current operation.
28. DATA DIAL
Adjust the parameter value.
29. [–]/[+] and NUMERIC buttons
Set parameters value or select the
number.
In Song Mode:
5. [ ] button
Start or Stop playing the song.
6. [
] button
Pause or continue playing the song.
7. [
] button
Set the beginning and the end for a
loop section of the current song.
8. [
] button
Rewind the song.
9. [
] button
Fast forward the song.
In Style Mode
5. [START/ STOP] button
Start or Stop playing the style.
6. [SYNC START] button
Turn the Sync Start on or o.
7. [INTRO/ ENDING] button
Play the Intro or Ending.
8. [FILL A] button
Play the ll–in pattern A.
9. [FILL B] button
Play the ll–in pattern B.

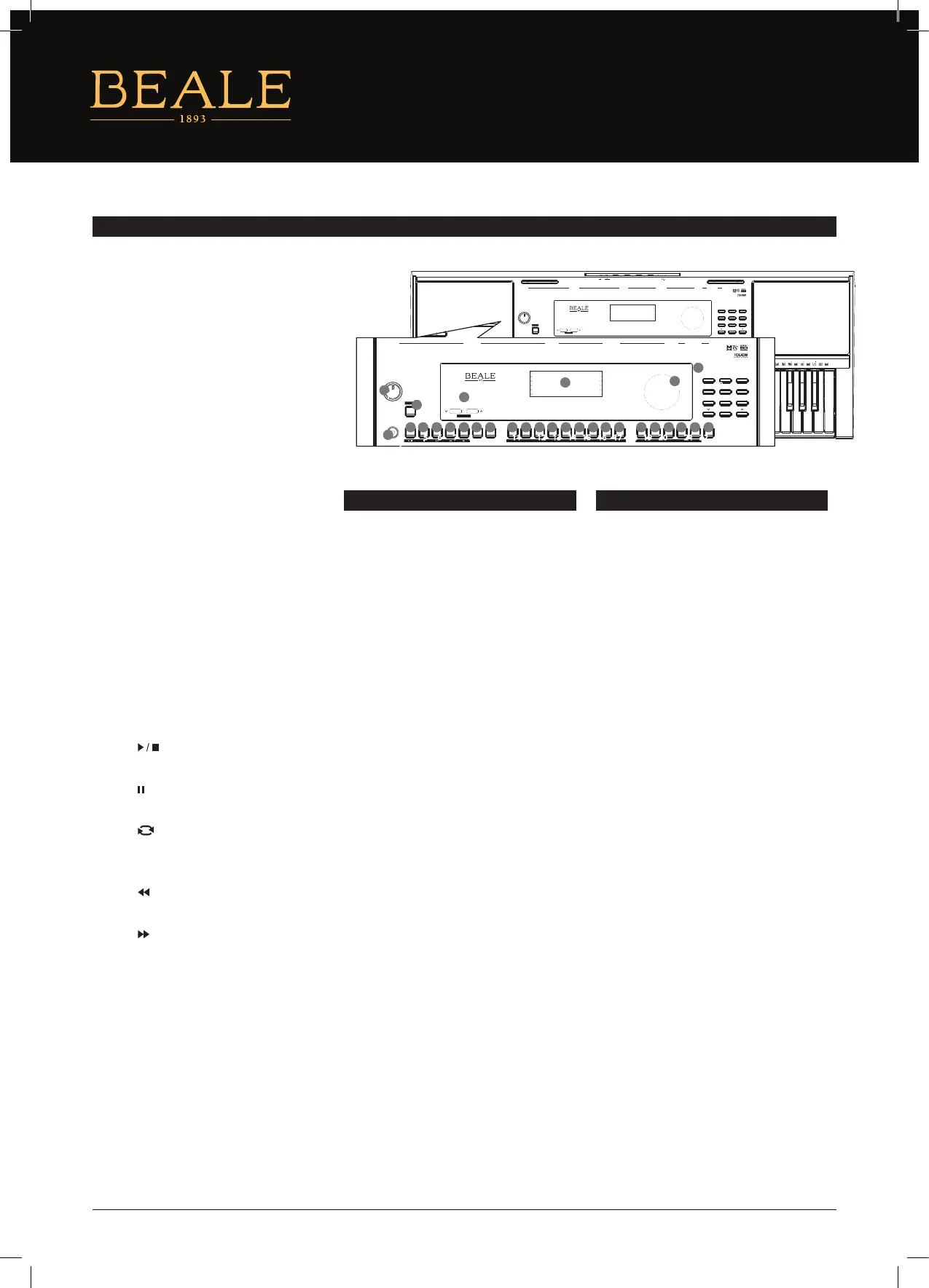

PANEL & DISPLAY DESCRIPTION
front panel
Lorem ipsum
12V MIC
AUX IN PHONES/OUTPUT SUSTAIN USB
87
0
9
54
6
21
3
METRONOME
MIXER
VOICE
STYLE
SONG
DEMO
BANK STORE M1 M2 M3 M4 O.T.S.
HARMONY
PIANO
START/
STOP
SYNC
START
INTRO/
ENDING FILL A
FILL B
FADE
CHORD
VOLUME
MIN MAX SHIFT
ACCOMP
TEMPO
RECORD TOUCH
SUSTAIN
RECORD PLAY DUAL LOWER DICT. DSP TOUCH SUSTAIN FUNCTION
OCTAVE TRANSPOSE L & R LESSON
B7
(
13
)
7
(
#
11
)
dim7
ROOT Cdim 7aug aug 7sus4 sus4 D F G
A
EC
#
3 D3 E 3
E3
F3
F
#
3 CHORD CHORD TYPE M M
(
9
)
6
mM7
M7
m m
(
9
)
m6
m7
(
9
)
m7 7 7
(
9
)
7
(
#
9
)
G2 A 2 A2 B2
C3
E2
F2
#
F 2
C2 C
#
2 D2 E 2 B 2 m7 5 7
(
9
)
7
(
13
)
C
#
/
D
D
#
/
E
F
#
/
G
G
#
/
A
A
#
/
B
220 STYLES
001-020 8 BEAT
021-033 16 BEAT
034-063 POP & BALLAD
064-078 ROCK
079-092 BALLROOM
093-111 DANCE
112-122 SOUL & FUNK
123-141 SWING & JAZZ
172-190 WALTZ & TRADITIONAL
191-200 WORLD
201-220 PIANIST
142-151 COUNTRY
152-171 LATIN & LATIN DANCE
633 VOICES
001-051 PIANO
052-076 CHROMATIC PERCUSSION
077-106 ORGAN
107-140 GUITAR
141-165 BASS
166-209 STRINGS & ORCHESTRAL
210-243 BRASS
244-271 REED
272-294 PIPE
295-345 SYNTH LEAD
346-393 SYNTH PAD
394-423 SYNTH SFX
583-624 COMBINED VOICE
625-633 DRUMS
424-447 ETHNIC MISC.
448-535 PERCUSSIVE
536-582 SFX
001-026 FOLK & COUNTRY
027-084 GOLDEN & POP
085-120 CLASSICAL
121-150 PIANO
150 SONGS
AK280
AK280
WHEN THE [SHIFT] BUTTON RELEASED
4. [TEMPO +]/[TEMPO –] button
Adjust the current Tempo.
12. [BANK] button
Select a memory bank.
13. [STORE] button
Register the panel settings.
14–17. [M1]– [M4] buttons
Recall a registered panel setting.
18. [O.T.S.] button
Turn the One Touch Setting function
on or o.
19. [HARMONY] button
Turn the Harmony eect on or o.
20. [PIANO] button
Enter the Piano Mode.
21. [METRONOME] button
Turn the metronome on or o.
22. [MIXER] button
Enter the Mixer menu.
23. [VOICE] button
Enter Voice mode.
24. [STYLE] button
Enter Style mode.
25. [SONG] button
Enter Song mode.
WHEN THE [SHIFT] BUTTON PRESSED
12. [RECORD] button
Enter Recording mode.
13. [PLAY] button
Play back the recording.
14. [DUAL] button
Turn the Dual function on or o.
15. [LOWER] button
Turn the Lower function on or o.
16. [DICT.] button
Enter the Chord Dictionary.
17. [DSP] button
Turn the DSP function on or o.
18. [TOUCH] button
Enter the Touch setting menu.
19. [SUSTAIN] button
Turn the Sustain function on or o.
20. [FUNCTION] button
Enter the Function menu.
21. [OCTAVE] button
Enter the Octave setting menu.
22. [TRANSPOSE] button
Enter the Transpose setting menu.
23. [L HAND] button
Choose to practise the left hand part
in Lesson Mode.
24. [R HAND] button
Choose to practise the right hand
part in Lesson Mode.
25. [LESSON] button
Enter Lesson Mode.
Lorem ipsum
12V MIC
AUX IN PHONES/OUTPUT SUSTAIN USB
87
0
9
54
6
21
3
METRONOME
MIXER
VOICE
STYLE
SONG
DEMO
BANK STORE M1 M2 M3 M4 O.T.S.
HARMONY
PIANO
START/
STOP
SYNC
START
INTRO/
ENDING FILL A
FILL B
FADE
CHORD
VOLUME
MIN MAX SHIFT
ACCOMP
TEMPO
RECORD TOUCH
SUSTAIN
RECORD PLAY DUAL LOWER DICT. DSP TOUCH SUSTAIN FUNCTION
OCTAVE TRANSPOSE L & R LESSON
B7
(
13
)
7
(
#
11
)
dim7
ROOT Cdim 7aug aug 7sus4 sus4 D F G
A
EC
#
3 D3 E 3
E3
F3
F
#
3 CHORD CHORD TYPE M M
(
9
)
6
mM7
M7
m m
(
9
)
m6
m7
(
9
)
m7 7 7
(
9
)
7
(
#
9
)
G2 A 2 A2 B2
C3
E2
F2
#
F 2
C2 C
#
2 D2 E 2 B 2 m7 5 7
(
9
)
7
(
13
)
C
#
/
D
D
#
/
E
F
#
/
G
G
#
/
A
A
#
/
B
220 STYLES
001-020 8 BEAT
021-033 16 BEAT
034-063 POP & BALLAD
064-078 ROCK
079-092 BALLROOM
093-111 DANCE
112-122 SOUL & FUNK
123-141 SWING & JAZZ
172-190 WALTZ & TRADITIONAL
191-200 WORLD
201-220 PIANIST
142-151 COUNTRY
152-171 LATIN & LATIN DANCE
633 VOICES
001-051 PIANO
052-076 CHROMATIC PERCUSSION
077-106 ORGAN
107-140 GUITAR
141-165 BASS
166-209 STRINGS & ORCHESTRAL
210-243 BRASS
244-271 REED
272-294 PIPE
295-345 SYNTH LEAD
346-393 SYNTH PAD
394-423 SYNTH SFX
583-624 COMBINED VOICE
625-633 DRUMS
424-447 ETHNIC MISC.
448-535 PERCUSSIVE
536-582 SFX
001-026 FOLK & COUNTRY
027-084 GOLDEN & POP
085-120 CLASSICAL
121-150 PIANO
150 SONGS
AK 2 80
AK280
