Beastx MICROBEAST PLUS - Page 18

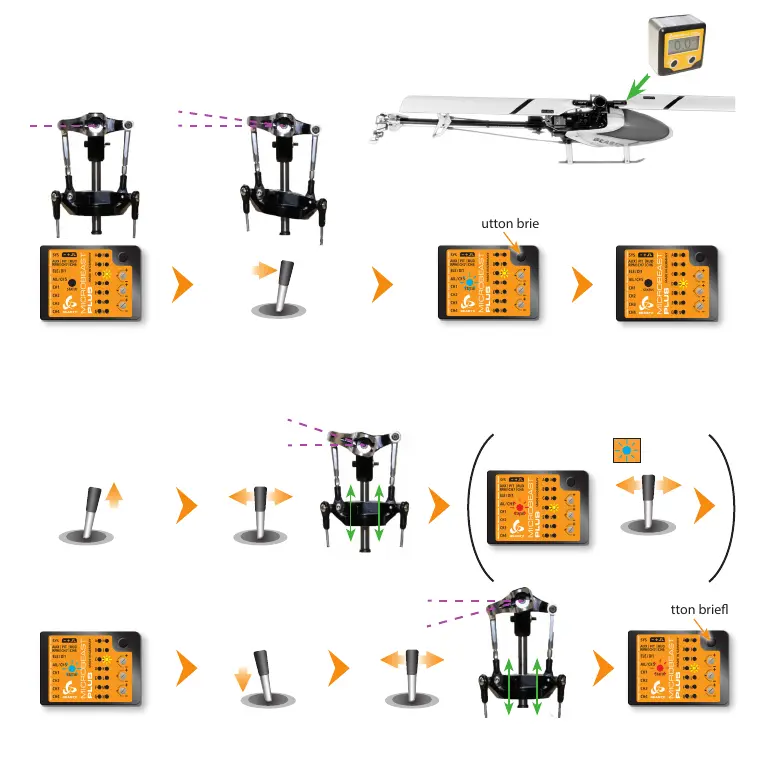

Setup menu point J - Swashplate servo throw
Align rotorhead and rotorblades in parallel to the helicopter‘s longitudinal axis. Attach a pitch
gauge/level meter to one of the rotor blades or to a blade grip in order to measure aileron pitch.
Push and hold aileron stick into one
direction of your choice just until
exact +6 oder -6 degrees of pitch
are reached
Menu LED J solid
Status LED o
Status LED should be solid blue
(See instruction manual for
further details on the LED colors)
Menu LED K solid
(= Menu point K)
Press button briey
Setup menu point K - Collective pitch
Move thrust stick to
maximum positive pitch
and let it stay there
Move thrust stick to full
negative pitch and let it
stay there
Move aileron stick to adjust maximum
negative collective pitch (i. e. -12°)
Move aileron stick to adjust maximum
positive collective pitch (i. e. +12°)
Status LED must be blue
when collective pitch is
positive!
Status LED red Move rudder stick
left or right
Status LED red when
collective pitch is
negative!
Press button briey
Status LED
gets blue
6°0°
+12°
-12°
