Product overview
EL34xx18 Version: 1.5
EL3453 | 3-phase power measurement terminal up to 690 V AC with extended functionality

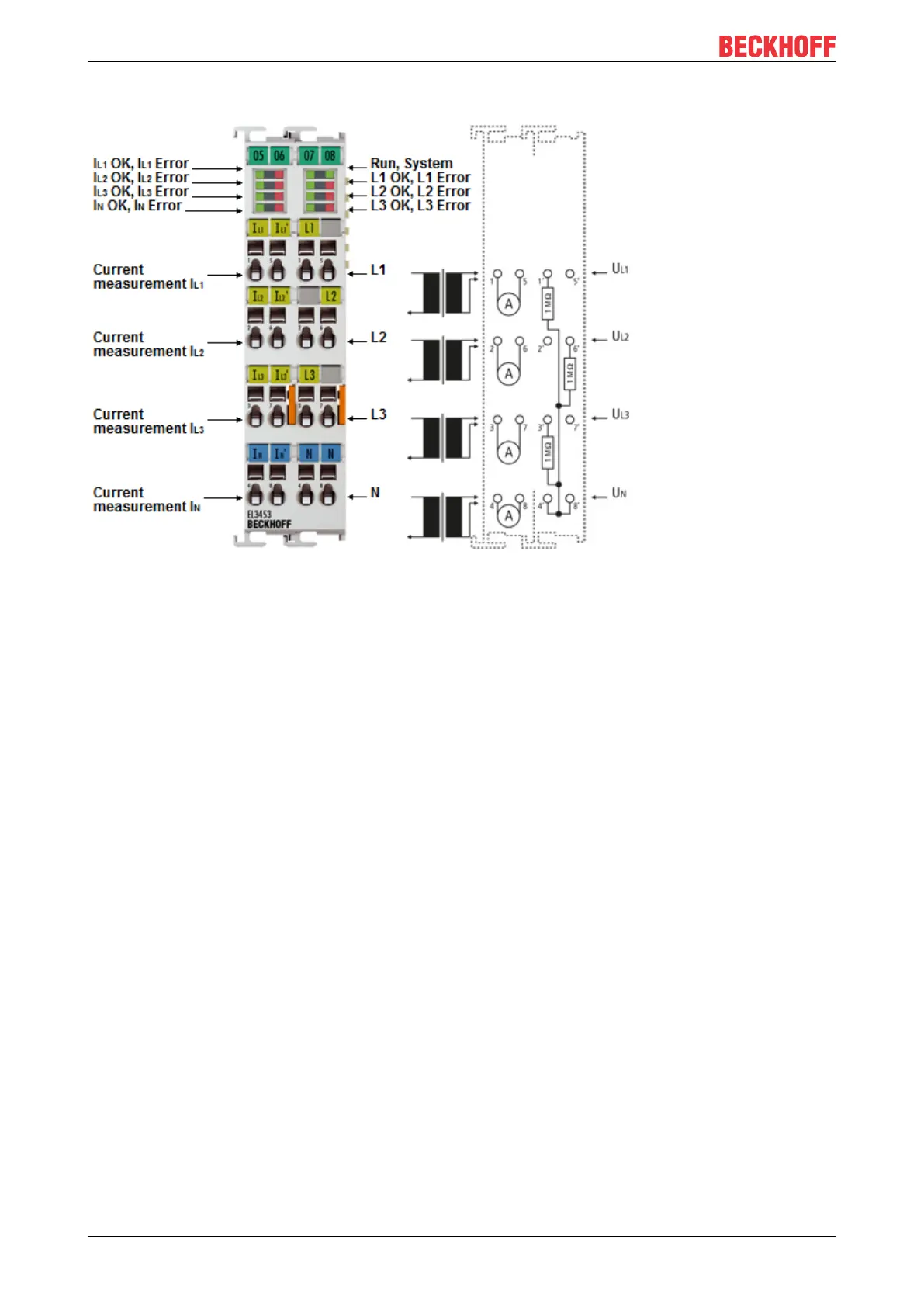

Fig.13: EL3453
The EL3453 EtherCAT power measurement terminal is an advancement based on the EL3413. With up to
690 V AC, the voltage inputs are optimised for the direct monitoring of high-capacity generators, as in the
wind power industry, for example. No upstream voltage transformer is required.
The four current inputs are electrically isolated so that the terminal can be used in all common grounded
current transformer configurations such as 2- or 3-transformer configurations with star or delta connection
incl. neutral conductor current measurement. The EL3453 can be used for simple grid analysis up to the
63rd harmonics analysis. Alternatively, all readings can be combined in a power quality factor for simplified
diagnostics. Like all measured terminal data, the harmonic content can be read via the process data.
Quick links
Also see about this
2 Basic function principles [}23]
2 Technical data [}19]
2 Object description and parameterization [}157]
2 Process data [}129]
2 Application examples [}259]
