7.7 Example Function Blocks for Evaluation
https://infosys.beckhoff.com/content/1033/el34xx/Resources/zip/6788206091.zip Example Function Blocks
The example function block presented here takes over the complete reading of all available values from the
EL3443 or EL3453 power measurement terminals and stores them in a STRUCT provided for this purpose:

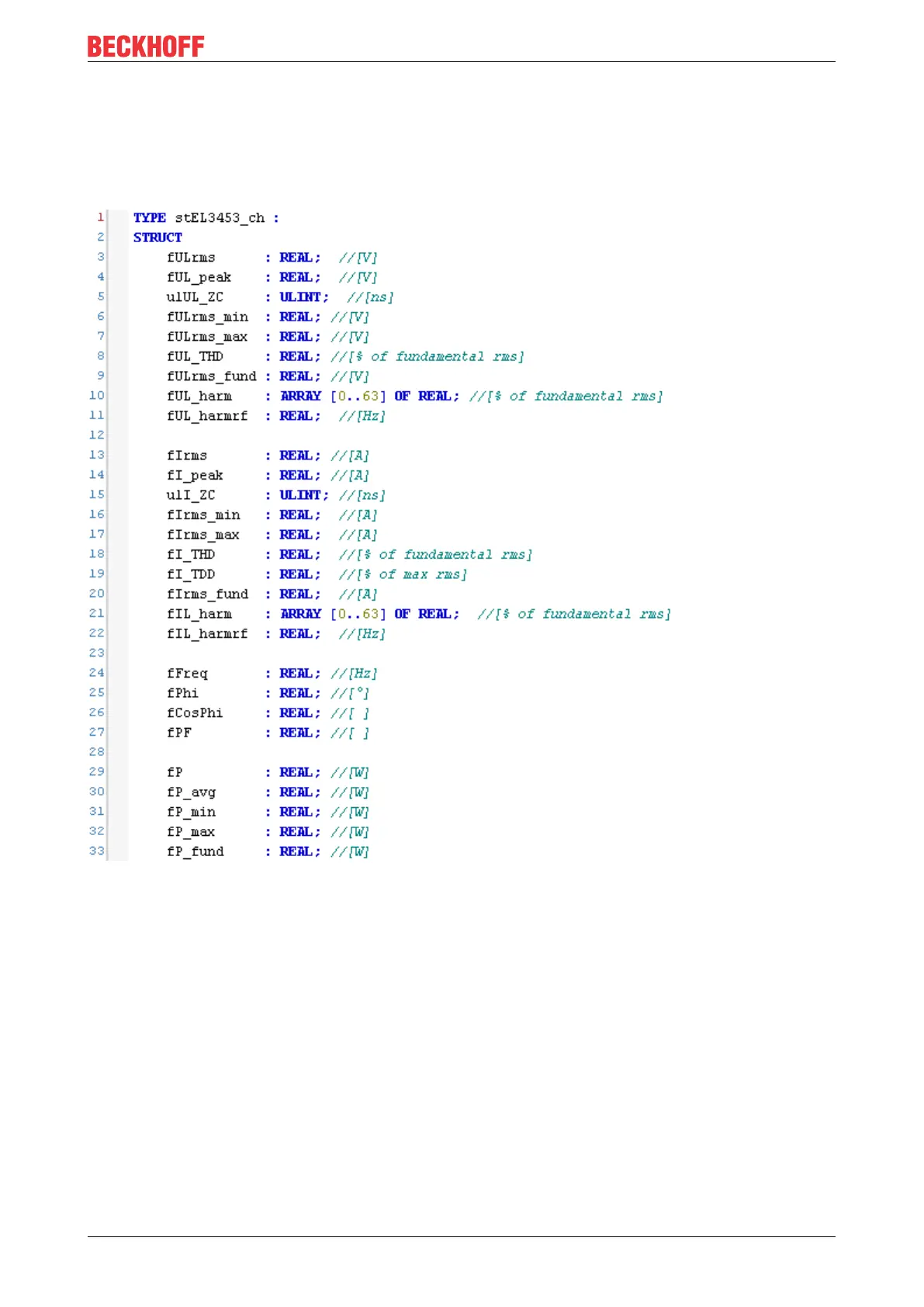

Fig.171: FB_example_Struct
To be able to use the function block
• the predefined PDO assignment "Dafault + Variant" must be selected under "Process Data" for the
terminal
