Appendix

EL34xx 287Version: 1.5

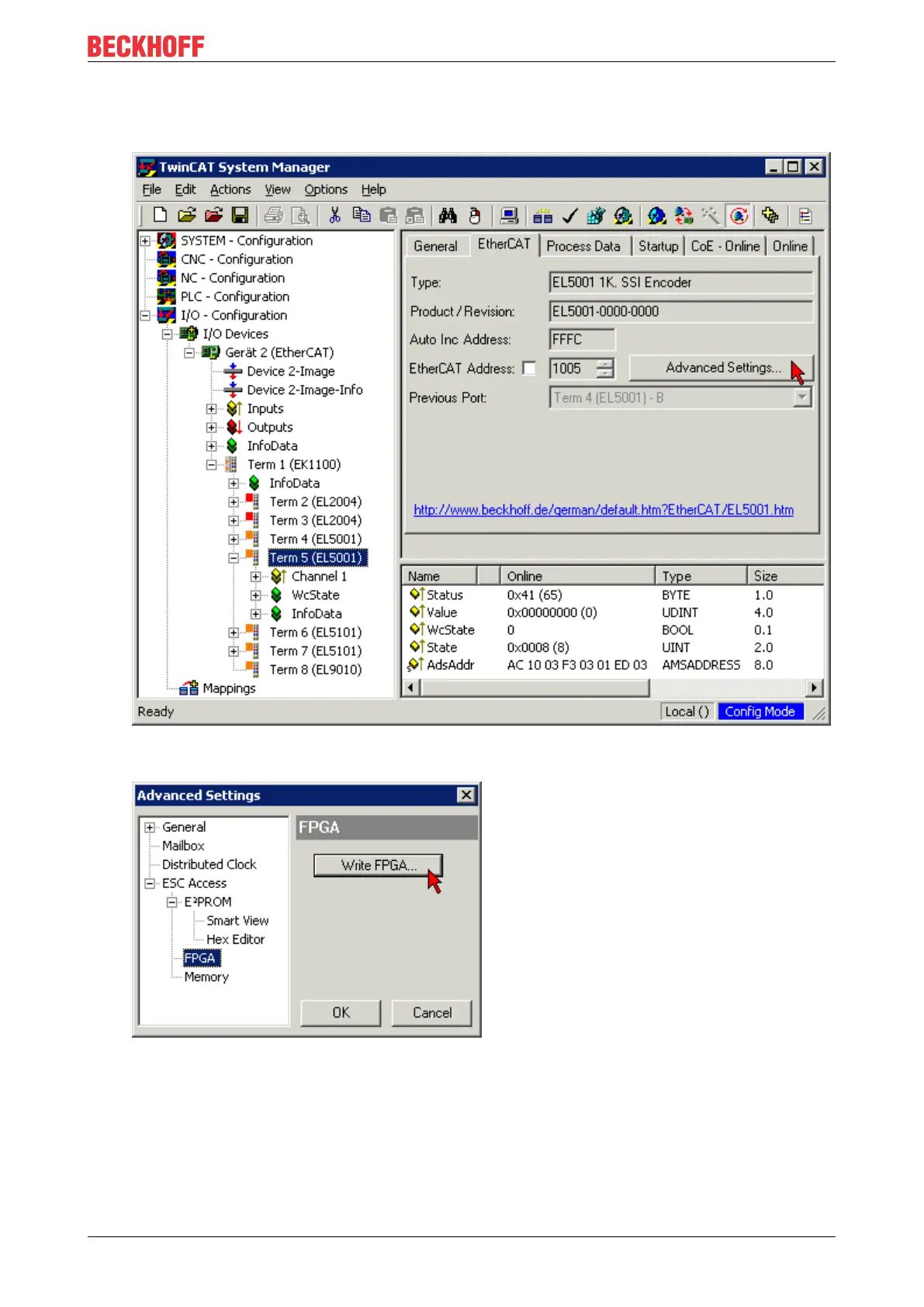

• In the TwinCAT System Manager select the terminal for which the FPGA firmware is to be updated (in

the example: Terminal 5: EL5001) and

click the Advanced Settings button in the EtherCAT tab:

• The Advanced Settings dialog appears. Under ESC Access/E²PROM/FPGA click on Write FPGA

button:
