2.9.3 EP1816-3008 - Process image
DIG Inputs Channel1 and 2

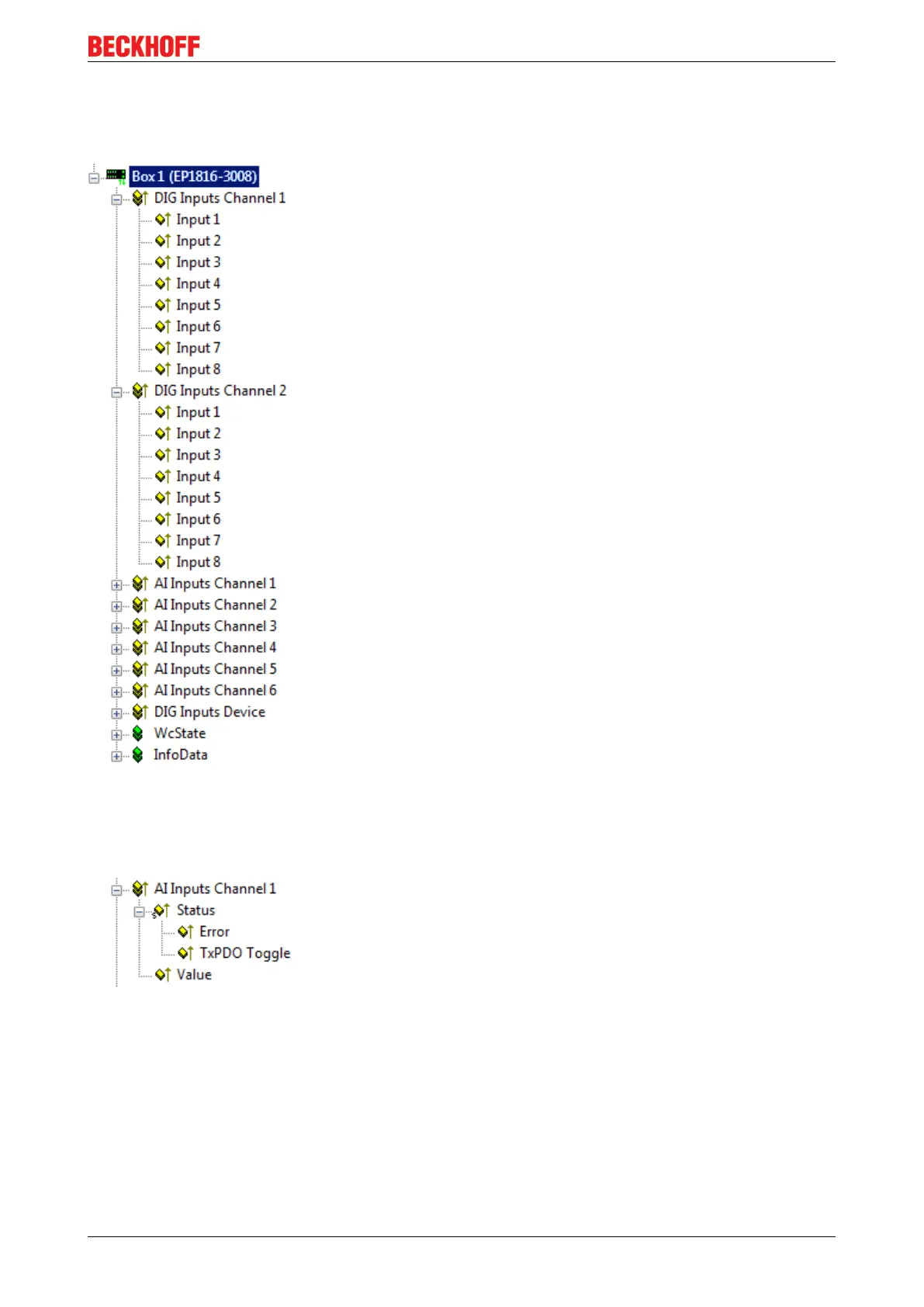

Fig.22: EP1816-3008, process image, DIG inputs channels 1 and 2
The 16 digital inputs of the module can be found under DIG Inputs Channeln.
AIInputs Channel 1 to 6
Fig.23: EP1816-3008 - AI inputs channels 1 to 6
The data for the two accelerometers can be found under AI inputs Channel
• Status Error: error relating to the communication with the accelerometer
• Value: 16 bit acceleration value
AI Inputs Channel 1 value: sensor 1, axis +X
AI Inputs Channel 2 value: sensor 1, axis +Y
AI Inputs Channel 3 value: sensor 1, axis -Z
