Product overview
KL1xxx 11Version: 1.0.0
2.2.2 KL1002 - LEDs and connection

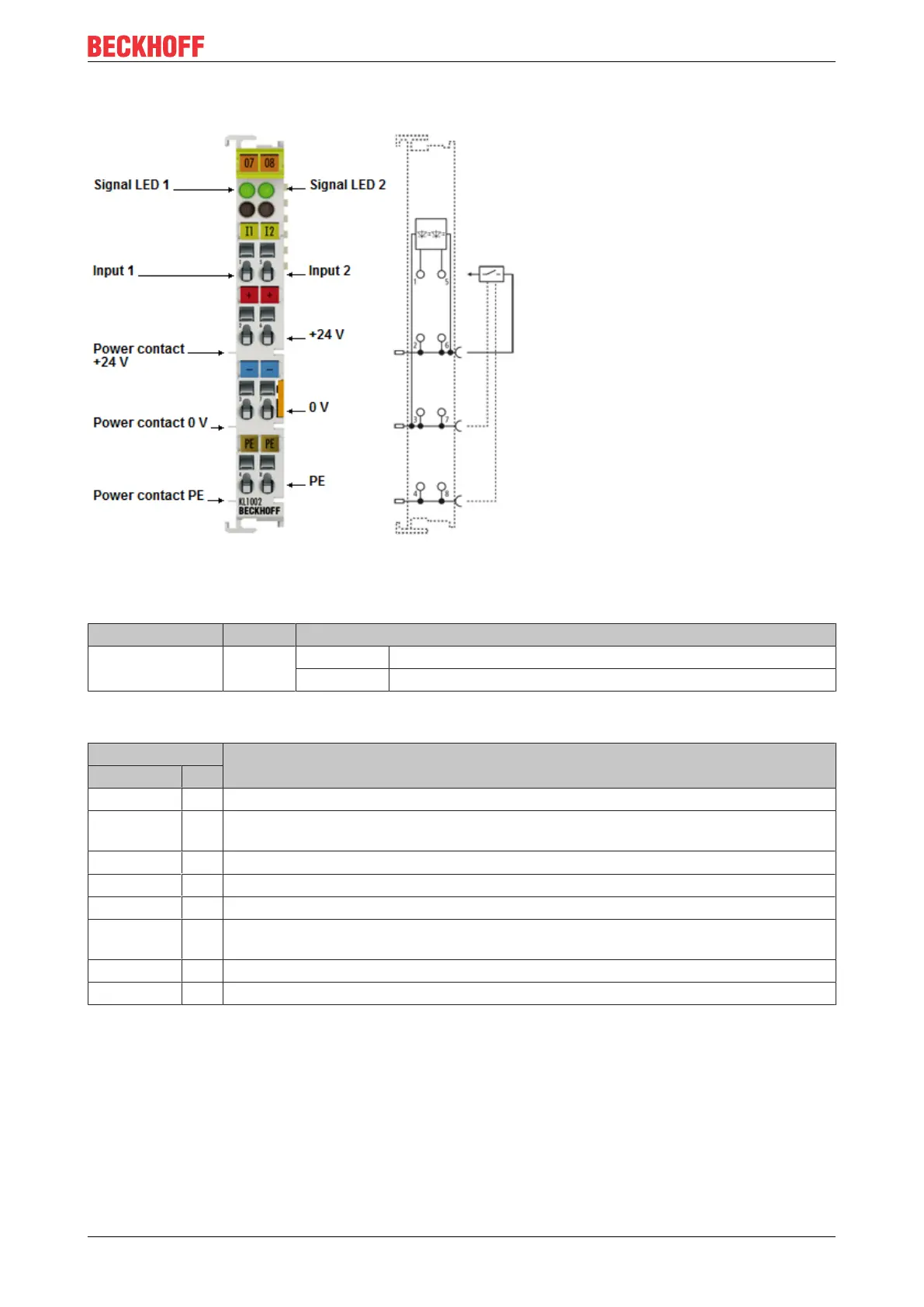

Fig.3: KL1002
KL1002 - LEDs
LED Color Meaning
Signal LEDs 1 - 2 green off Signal voltage "0" (-3V ... 5V)
on Signal voltage "1" (15V ... 30 V)
KL1002 - Connection
Terminal point Description
Name No.
Input1 1 Input 1
+24V 2 Sensor supply for input1 (internally connected to terminal point6 and positive power
contact)
0V 3 Ground for input1 (internally connected to terminal point7 and negative power contact)
PE 4 PE (internally connected to terminal point8)
Input2 5 Input 2
+24V 6 Sensor supply for input2 (internally connected to terminal point2 and positive power
contact)
0V 7 Ground for input2 (internally connected to terminal point3 and negative power contact)
PE 8 PE (internally connected to terminal point4)
